Fixed Directional Drone Jammer Anti Drone System with ≥10km Detection Distance and ≥3km Countermeasure Distance

Fixed Directional Drone Jammer Anti Drone System with ≥10km Detection Distance and ≥3km Countermeasure Distance

Brand Name:	MYT
Model Number:	DR200-C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Distance:

≥10km

Detection Frequency Band:

70MHz-6GHz

Countermeasure Distance:

≥3km

Countermeasure Frequency Band:

410MHz-480MHz, 650MHz-750MHz, 750MHz-850MHz, 850MHz-950MHz, 1080MHz-1200MHz, 1200MHz-1340MHz, 1340MHz-1500MHz, 1560MHz-1620MHz, 5100MHz-5300MHz, 5700MHz-5950MHz, 2450MHz-2600MHz, 5950MHz-6200MHz(customized)

Supply Ability:

1000units per month

Highlight:

Fixed Directional Drone Jammer

Long Distance Directional Drone Jammer

Product Description

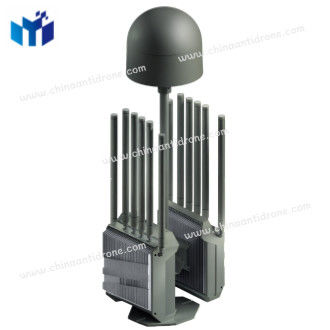

Fixed Directional Drone Jammer

Advanced anti-drone system with superior detection, identification, interference, and countermeasure capabilities for long-distance operation. Automatically detects and neutralizes drones without supervision.

Product Overview

This fixed directional drone jammer provides comprehensive airspace protection by automatically detecting and countering unauthorized drones. The system forces drones to hover in place, execute emergency landings, or return to their origin, effectively preventing intrusion into protected zones.

Key Features

Fully automated unattended operation
Modular detachable design
Military-grade construction quality
Customizable service options
Highly scalable architecture
Precise positioning and tracking capabilities
Superior interference performance against FPV drones

Technical Specifications

Parameter	Details
Detection Technologies	Radio frequency detector, radar system (optional), optoelectronic tracking device (optional)
Detection Frequency Band	70MHz-6GHz full-band scanning, detection and display
Detection Angle	Horizontal: 360°, Pitch: 90°
Detection Distance	≥10km (depends on working conditions)
Detection Response Time	≤5s
Countermeasure Frequency Band	410MHz-480MHz, 650MHz-750MHz, 750MHz-850MHz, 850MHz-950MHz, 1080MHz-1200MHz, 1200MHz-1340MHz, 1340MHz-1500MHz, 1560MHz-1620MHz, 5100MHz-5300MHz, 5700MHz-5950MHz, 2450MHz-2600MHz, 5950MHz-6200MHz (customized)
Countermeasure Distance	≥3km (depends on working conditions)
Countermeasure Angle	0°-360°
Countermeasure Response Time	≤5s
Material	Aviation aluminum enclosure
Working Temperature	-40°C to +60°C
Storage Temperature	-40°C to +80°C
Power Consumption	<300W
Weight	≤90kg
Size	1200mm * 540mm * 1710mm (length * width * height)

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories and accumulated numerous technical patents.

Our products provide comprehensive unmanned automatic management solutions for various defense and perimeter areas, integrating AI anti-drone systems and AI unmanned vehicle patrol systems. These systems combine optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management technologies to deliver 24-hour uninterrupted anti-drone defense and ground perimeter security.

Certifications

Our product holds dual certification from the Ministry of Public Security and the National Security Center, demonstrating military-grade quality and reliability for severe incident response.

Partnership Portfolio

We provide customized product services to military and public safety departments, earning an excellent reputation through reliable performance in practical operations across various public safety scenarios.

Packaging and Delivery

We support multiple logistics methods including shipping, air freight, water transport, and express delivery, covering 90% of global regions with reliable delivery services.
