MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DR400-A |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | TT, LC |
| Supply Ability: | 1000units per month |
| Working Distance: | 3km | Detection Principle:: | Spectrum Feature Identfication |
|---|---|---|---|
| Working Temperature: | -20℃~+50℃ | Detection Frequency:: | Supports 400MHz-6GHz Customized Scanning，by Default 400MHz，800MHz，900MHz，1.2GHz，1.4GHz，2.4GHz，5.2GHz，5.8GHz |
| Detection Response Time: | ≤3S | Alarm Method: | Audio，vibration，light |
| Battery Life: | Main Device≥8 Hours，auxiliary Device≥12 Hours | ||
| Highlight: | Handheld Wireless Drone Detector,3S Response Time Drone Detector,Spectrum Feature Identification Drone Detector |
||

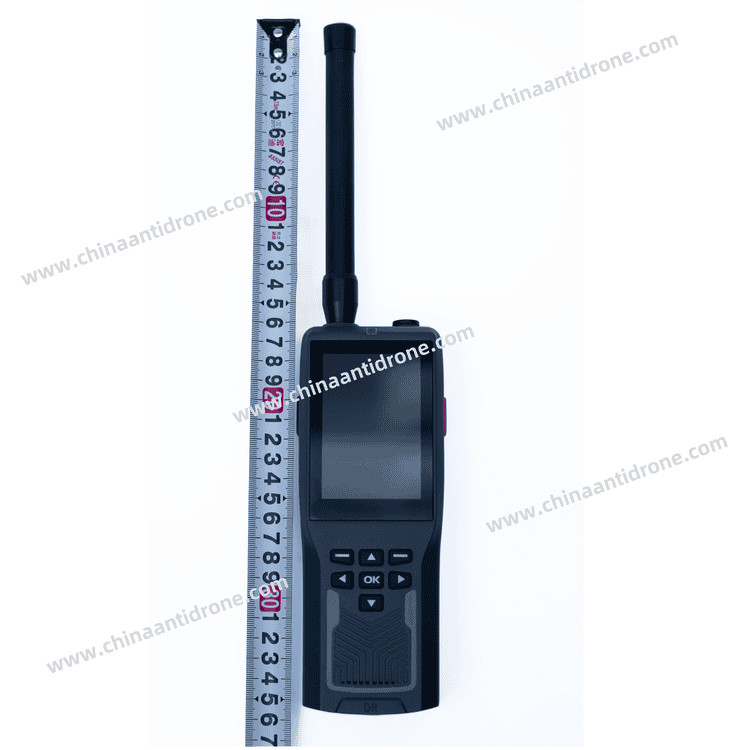

Hand Held Wireless Drone Detector
1, Product Description
The hand held wireless drone detector is a portable detector only weight 148.6g,that detecting range over 1km .The back of product has designed clip,When you unused,it can put on your cloth.A fixed muti band antenna installed that can receive 1.2-5.8G RF band.Matching lithium battery and charger makes detector work long time.Connecting phone that notice the battery life and drone direction directly.For users it is nice drone detector.
2, Device Features
1) Dual-mode detection:
Switching between spectrum power detection mode and spectrum characteristic matching detection mode
2) Wide range of detection models:
Accurately identify drones of mainstream brands such as DJI, Autel, and Hubsan, and most FPV and DIY drones, etc.
3) Wide coverage of detection frequency bands:
Full coverage of mainstream frequency bands 70MHz-6.2GHz, 8-12 key detection frequency bands;
4) Super FPV early warning:
Unique baseband signal analysis and identification technology, rapid early warning for all types of DIY and FPV drones;
5) Low false alarm rate:
Spectrum signal detection can reduce the false alarm rate and achieve extremely low false alarm rate in complex electromagnetic environments;
Test Objective:
To verify if the equipment has a drone detection range of over 3KM.Principle of the Device:The device detects the video transmission signals emitted by drones.
3, Functional highlight
1) Detecting range over 1KM
2) Suit for multiple drone like DJI,AUTEL ,and four rotor,fixed wing,FPV
3) Renew the function online
4) Matching replace lithium battery
5) Low alarm false
6) Alarm voice can adjustment
| Aim drone type | DJI,AUTEL,and four rotor,fixed wing,FPV |
Frequency range
| 2400-2485MHZ(B1OFDM hd image transmission) |
| 5150-5350MHZ(B2FDM,hd image transmission) | |
| 5725-5850MHZ(B3OFDM,hd image transmission) | |
| 5360-5975MHZ(B4FPV,simulation image transmission) | |
| 700-1500MHZB5,simulation image transmission) | |
| Working distance | ＞1km(B1, B2, B3 take DJI MAVIC2 Visual environment high 50m as the standard,B4,B5take FPV Visual environment high 600m as standard) |
| Alarm way | Voice/lighting/shocking |
| Power supply mode | Replaceable 18650 lithium battery |
| Battery | ＞8h(piece) |
| Charge | battery charge or connect USB TYPE-C |
| Charging voltage | DC5V |

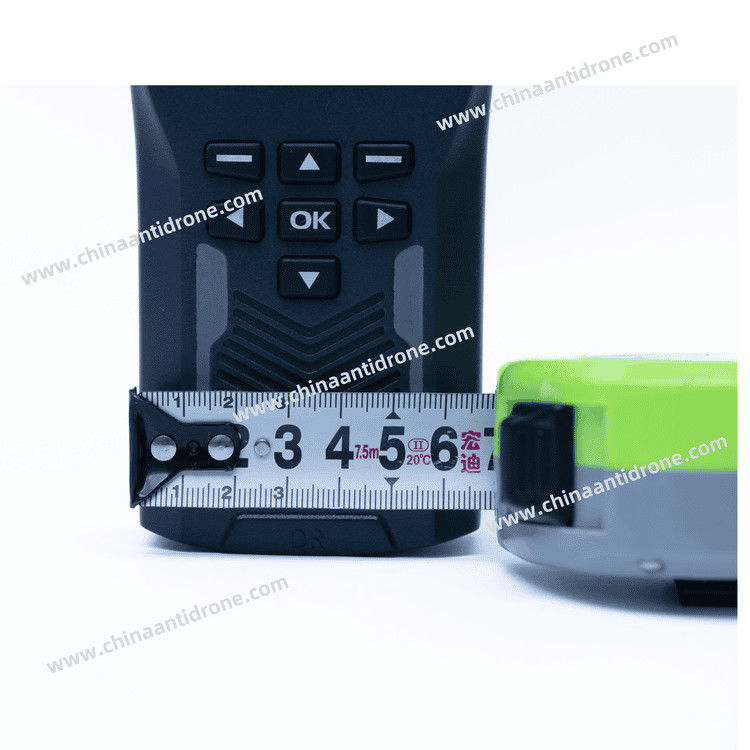

| Size | 102×55×32mm |
| Weight | 155g (including one battery) |

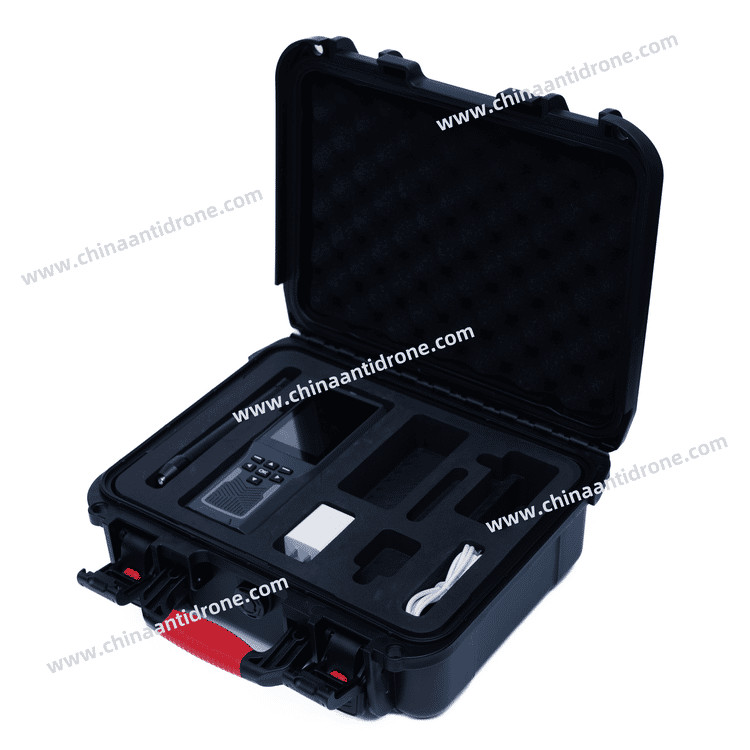

5, Packing list
| order | name | quantity |
| 1 | Detector | 1pcs |
| 2 | Lithium battery | 2pcs |
| 3 | Charger | 1pcs |
| 4 | USB cable | 2pcs |
| 5 | Portableclip | 1pcs |
6, Certification Certificate
7, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
