Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance
Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance
Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance
Basic Information
Place of Origin: China
Brand Name: MYT
Certification: CNAS、CMA、CAL、ILAC-MRA
Model Number: DR100-AB
Document: Product Brochure PDF
Minimum Order Quantity: 1
Price: Pricing is negotiable based on order quantity
Packaging Details: 64.25kg
Delivery Time: 15-20 days
Payment Terms: TT, LC
Supply Ability: 500units per month
Get Best Price Chat Now
Weight: 64.25kg Size: 800mm*660mm
Detection Distance: ≥5km Jamming Distance: ≥3km
Highlight:

RF Spectrum Analysis Drone Jammer

,

3km Drone Jammer

,

Security Protection Drone Jammer

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System





1, Product Introduction

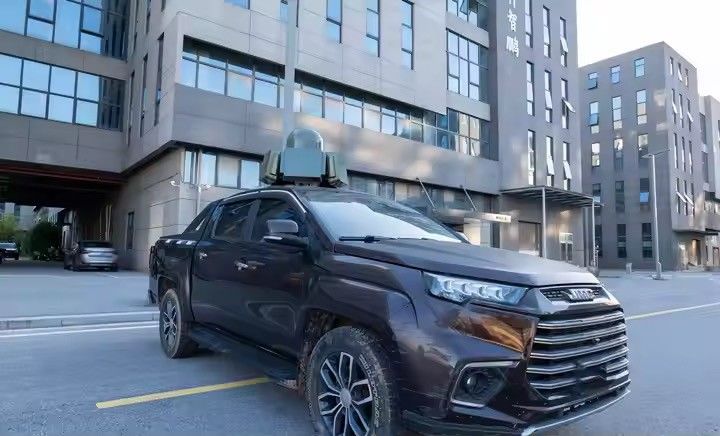

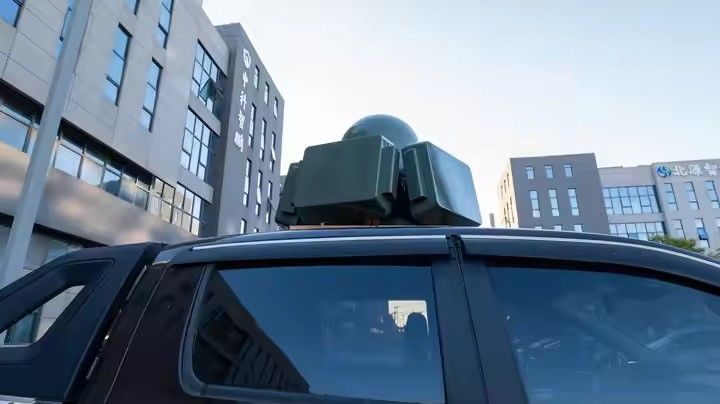

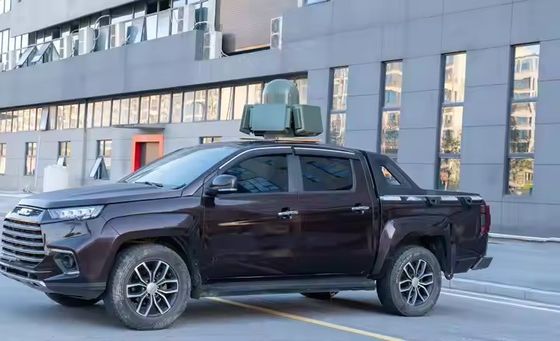

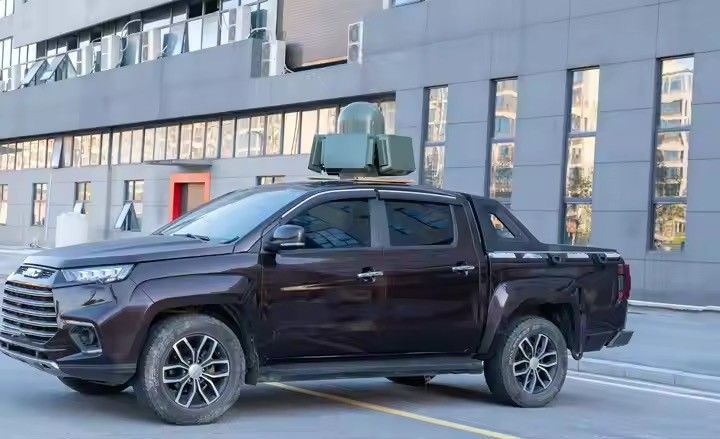

  The device components can be quickly assembled and disassembled, supporting three operational configurations: vehicle-mounted, fixed, and portable. This allows for easy deployment and flexible use.

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 0

2, Functional highlight

1) 360° Full-Frequency Detection and Influence:
Covers mainstream drone models, operates autonomously, and provides all-around,multi-angle detection and influence.
2) Structured Design:
Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.
3) Strong Stability:
Features a low wind resistance design to maintain stability and safety even at high speeds.
4) Blacklist/Whitelist:
Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.
5) Strong Expandability:
Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.
6) High-Grade Quality:
Withstands extreme temperatures, offering strong environmental adaptability.
7) Customized Services:
Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.

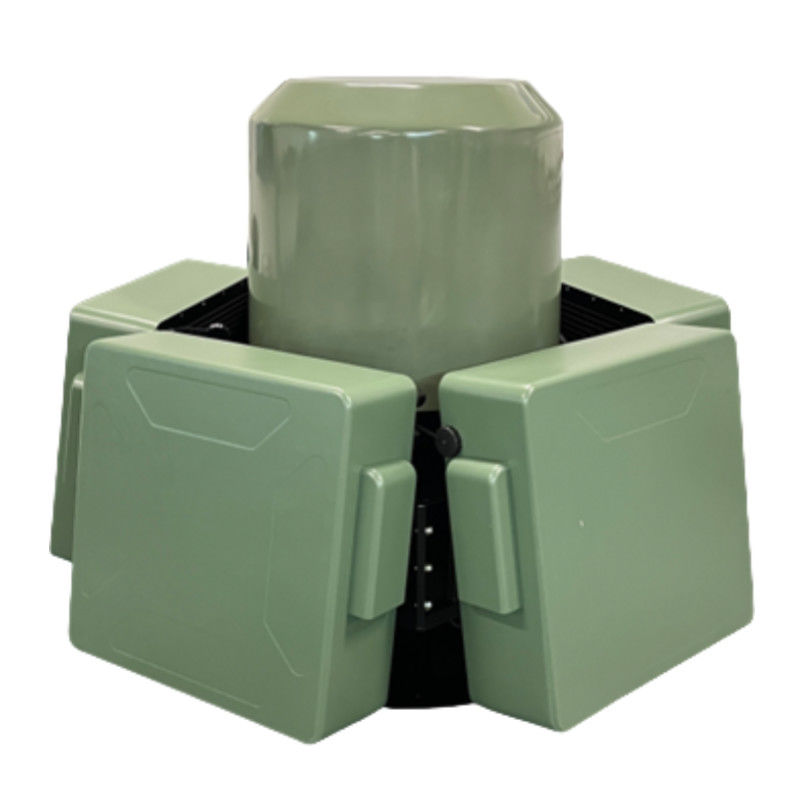

3, Device Structure and Components
Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 1

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 2

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 3

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 4

4,Product list

Device NameQTWeight
Equipment main unit164.25 KG
Drone detection unit130 KG
Drone control and management system1
Power supply system11.55 KG
Shield-type influence56.85 KG
IPC or laptop1
Software1
Influence aviation case115.55 KG
Detection aviation case114.65 KG

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 5

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 6

ItemParameters
Working modeRadio Detection
Action ObjectDrone Map Transmission, Flight Control Link
Operating Frequency100Mhz~6Ghz
Detection distance5KM-10KM (open and accessible areas)
Detection distance2KM-5KM (urban complex electromagnetic environment)
Number of Simultaneous detections≥10
Detection Refresh time≤1.5S
Power Consumption≤50W

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 7

Working modeRadio interference
Action objectUAV map transmission, flight control link, navigation signal
Operating Frequency BandFrequency Band (840~930)±15MHz (1535~1635)±15MHz (2380~2520)±15MHz (5130~5370)±15MHz (5725~5885)±15MHz (1080~1200)±15MHz
 Wattage (47±3)dBm (44±3)dBm (47±3)dBm (44±3)dBm (47±3)dBm (44±3)dBm
 Each frequency band can be controlled independently and combined as needed.
Influence Response time≤3S
Suppression Distance RatioThe maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference
Counter Distance2km-8km
Countermeasure Band6
System power consumption≤2300W



Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 8

ItemParameters
SizeφH:850mm485mm
Weight≤50kg
Protection levelIP65
High-Speed OperationCapable of detecting and countering drones while in high-speed motion
Map PositioningEquipped with an electronic map that can display the system's geographic location in real-time
Alarm FunctionProvides alarm notifications via information, sound, and light upon drone detection
Working Temperature-20℃~60℃+±2℃
Storage Temperature-60℃~85℃+±2℃
System Power Supply220V AC
System Interface100/1000M Ethernet

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 9

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 10

Aviation case:
Influence aviation case dimension:470mm*570mm*710mm
Detection aviation case dimension:680mm×600mm×480mm

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 11

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 12

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 13Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 14

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 15

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 16

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 17Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 18

Directional Drone Jammer for Security Protection of Drones Vehicles with RF Spectrum Analysis and 3km Jamming Distance 19
