Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System

Name: Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR100-AB
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR100-AB
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	25 days
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Mode:

Passive Detection

Detection Frequency:

300MHz~6GHz

Detection Radius:

5km

Jamming Distance:

3KM

Size:

800mm*600mm

Jamming Frequency:

60MHz-6GHz(Customized)

Total Power:

2300W

Weight:

65KG

Operation Temperature:

-20℃-60℃

Packaging Details:

64.25kg

Supply Ability:

1000units per month

Highlight:

Vehicles Directional Drone Jammer

RF Spectrum Analysis Drone Jammer

Security Protection Drone Jammer

Product Description

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System

1, Product Introduction

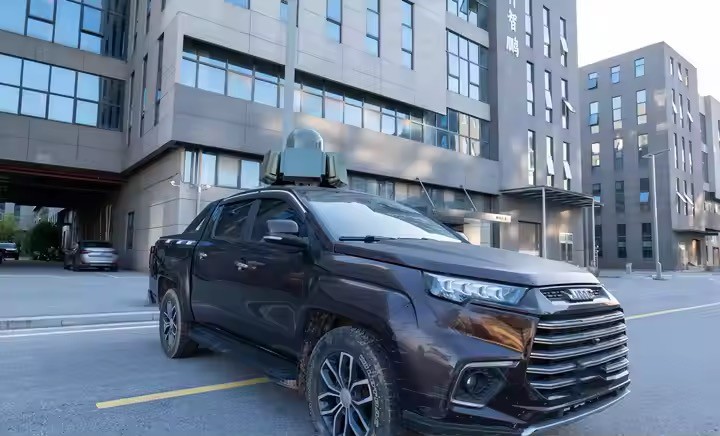

The device components can be quickly assembled and disassembled, supporting three operational configurations: vehicle-mounted, fixed, and portable. This allows for easy deployment and flexible use.

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 0

2, Functional highlight

1) 360° Full-Frequency Detection and Influence:

Covers mainstream drone models, operates autonomously, and provides all-around,multi-angle detection and influence.
2) Structured Design:

Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.
3) Strong Stability:

Features a low wind resistance design to maintain stability and safety even at high speeds.
4) Blacklist/Whitelist:

Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.
5) Strong Expandability:

Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.
6) High-Grade Quality:

Withstands extreme temperatures, offering strong environmental adaptability.
7) Customized Services:

Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.

4,Product list

Device Name	QT	Weight
Equipment main unit	1	64.25 KG
Drone detection unit	1	30 KG
Drone control and management system	1
Power supply system	1	1.55 KG
Shield-type influence	5	6.85 KG
IPC or laptop	1
Software	1
Influence aviation case	1	15.55 KG
Detection aviation case	1	14.65 KG

5, Specification

DR1001 Specification (● yes, ○ no)
Color	White	●
Working mode	Radio Detection and Interference	●
Action object	UAV map transmission, flight control link, navigation signal	●
Operating Frequency	100MHz~6GHz	●
Detection distance	≥5km(Open and accessible areas)	●
Number of simultaneous detections	≥10(5 different manufacturers)	●
Detection refresh time	≤2s	●
Power consumption	≤50W	●
Operating Frequency Band	(890~940)±10MH z (43±2)dBm ,(1550~1625)±10 MHz (40±2)dBm , (2400~2500)±10 MHz (40±2)dBm , (5700~5850)±10 MHz (40±2)dBm	●
Counter distance	≥2km	●
Countermeasure Frequency band	4	●
System power consumption	≤1000W	●
Size	φH:850mm485mm	●
Weight	≤50kg	●
Protection level	IP65	●
Working temperature	-20℃~55℃	●
Storage temperature	-60℃~125℃	●
System power supply	220V AC	●
System Interface	100/1000M Ethernet	●
Full working time	≥1h	●

6, After-Sales service

1. We offer 24 hours service after sales

2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.

3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.

This PI is applicable to the DDP shipping agreement.

7,Buesiness Partner

Afreican Parks Counter-UAV Strategic Partnership

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 1

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 2

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 4

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 6

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 7

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 8

8,Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our mission is to enable intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments. By transitioning from passive to active defense strategies and fostering a paradigm shift from partial to comprehensive protection, we aim to elevate anti-intrusion security systems to new heights.

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 9

9, Certification Certificate

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 15

10,Partnership Portfolio

Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 28

11,Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.

Directional Drone Jammer Security Protection for Drones Vehicles with RF Spectrum Analysis Drone Detection Alert System 34
