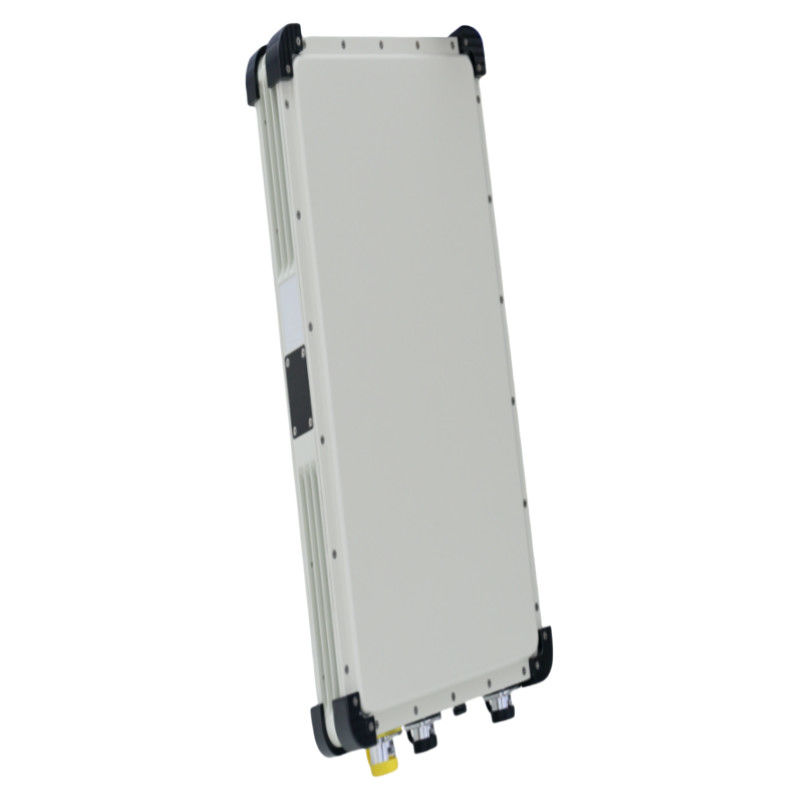

C Band Anti UAV Radar with 5.2km Range and Real-time Monitoring for Drone Detection

Name: C Band Anti UAV Radar with 5.2km Range and Real-time Monitoring for Drone Detection
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: 5200C
Price: 50,100.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	5200C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Range Of Radar:

5.2km

Band:

Detection Speed:

0.5m/s～30m/s

Working Temperature:

-40℃～+55℃

Supply Ability:

1000units per month

Highlight:

C Band Drone Detector

Drone Detection Anti UAV Radar

5.0km Anti UAV Radar

Product Description

C Band Drone Detection Anti UAV Radar with Effective Range of 100m-5.0km

The 5200C radar system is composed of a single radar array and a power adapter. It employs advanced MIMO and DBF technologies to effectively eliminate false alarms and clutter. This product is primarily designed for monitoring the detection, alerting, and target indication of vessels in both coastal and inland regions, providing precise target trajectory data.

Product Features

Real-time monitoring: Monitor the surrounding environment, promptly detect and respond to abnormal situations
Strong fast target monitoring capability: High data refresh rate, able to continuously and stably track rapidly moving targets
Wide coverage: Can cover large areas, and multiple radars can also be connected in series to further expand the monitoring range and achieve seamless supervision in coastal and inland areas
Easy to install: Can be completed using lamp poles or original infrastructure
Strong adaptability to the environment: Possessing the ability to work 24/7 and adapt to harsh environments such as night, rain, snow, haze, and dust

Technical Specifications

Parameter	Specification
Working system	Phased array system (azimuth scanning+elevation scanning)/pulse Doppler
Working band	C Band
Range of Radar	5.2km
Effective detection range	100m～5.0km (Ships)
Azimuth coverage	≥90°
Elevation coverage	≥18°
Detection speed	0.5m/s～30m/s
Azimuth accuracy	≤1.0°
Distance accuracy	≤10m
Data rate	≥2Hz
Data interface	RJ45/1ch 10/100M Ethernet port
Input power	≤60W (Power dissipation) AC220V～240V (Output power)
Working temperature	-40℃～+55℃
Weight (N.W)	≤5.5kg

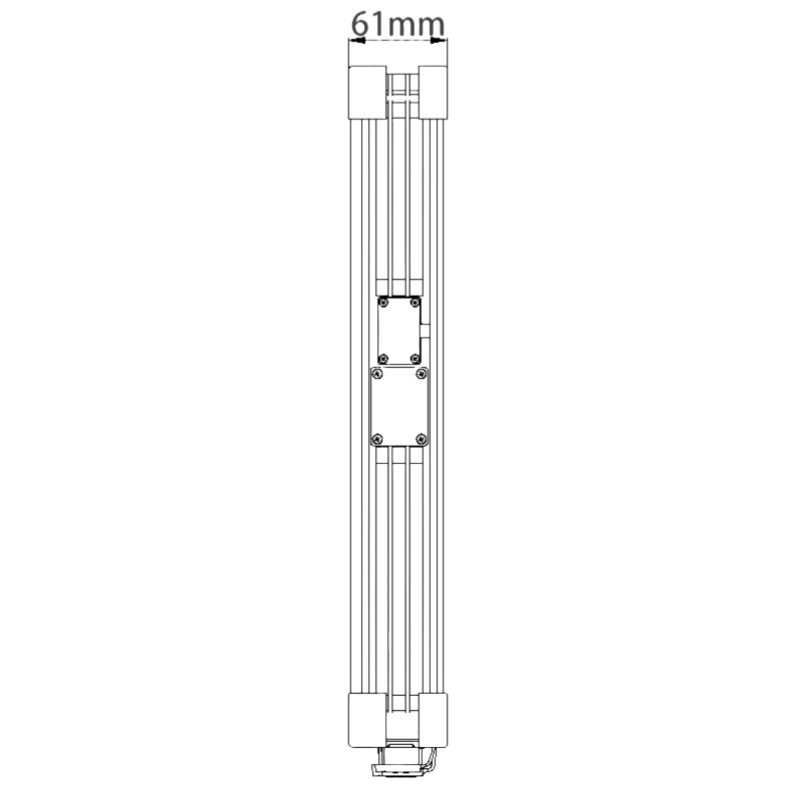

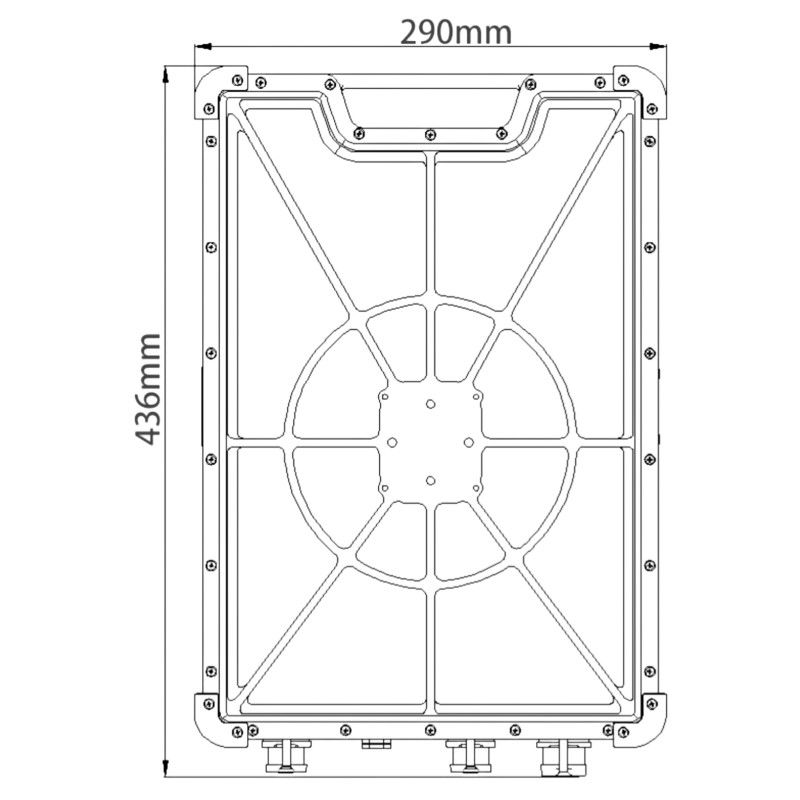

Product Dimensions
