MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | 3100X |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable on Quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 units per month |
| Working Band: | X Band | Range Of Radar: | 3.1km |
|---|---|---|---|
| Azimuth Accuracy: | ≤0.8° | Pitch Accuracy: | ≤1.0° |
| Distance Accuracy: | ≤10m | Data Rate: | ≥0.2Hz |
| Highlight: | 24/7 Anti UAV Radar,Civilian Drone Anti UAV Radar,Target Indication Anti UAV Radar |
||
Anti UAV Radar for Civilian Drone Detection and Target Indication Digital Phased Array X Band Radar 3.1km Range 360° Coverage High Accuracy 24/7 After-Sales Service
1, Product overview

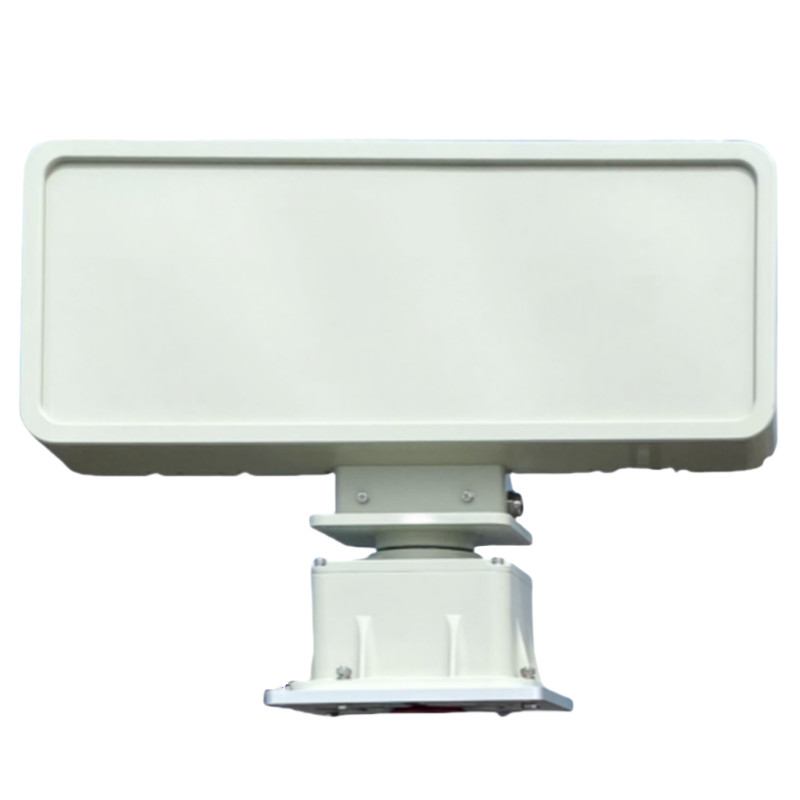

The 3100X is a device designed for detecting, surveilling, and indicating targets of micro/small civilian drones in key areas like prisons, exhibitions, and military bases. It is primarily composed of a radar array, a mechanical turntable, and a power adapter. This device can accurately provide information on target trajectories, including direction, distance, altitude, and speed.
2, Products parameter:
| Working system | Digital phased array (azimuth scanning+elevation scanning)/pulse Doppler |
| Working band | X Band |
| Range of Radar | 3.1km |
| Effective detection range | 100m～2.0km(UAV; RCS=0.01㎡) |
| Azimuth coverage | 360° |
| Elevation coverage | ≥40° |
| Detection speed | 0.5m/s～30m/s |
| Azimuth accuracy | ≤0.8° |
| Pitch accuracy | ≤1.0° |
| Distance accuracy | ≤10m |
| Data rate | ≥0.2Hz |
| Data interface | RJ45/1 1CH Ethernet 10/100M port |
| Input power | ≤200W(power dissipation) AC200-AC240(input) |
| Working temperature | -40℃～+55℃ |
| Weight (N.W) | ≤30kg(Whole device with 360° electric rotary) |

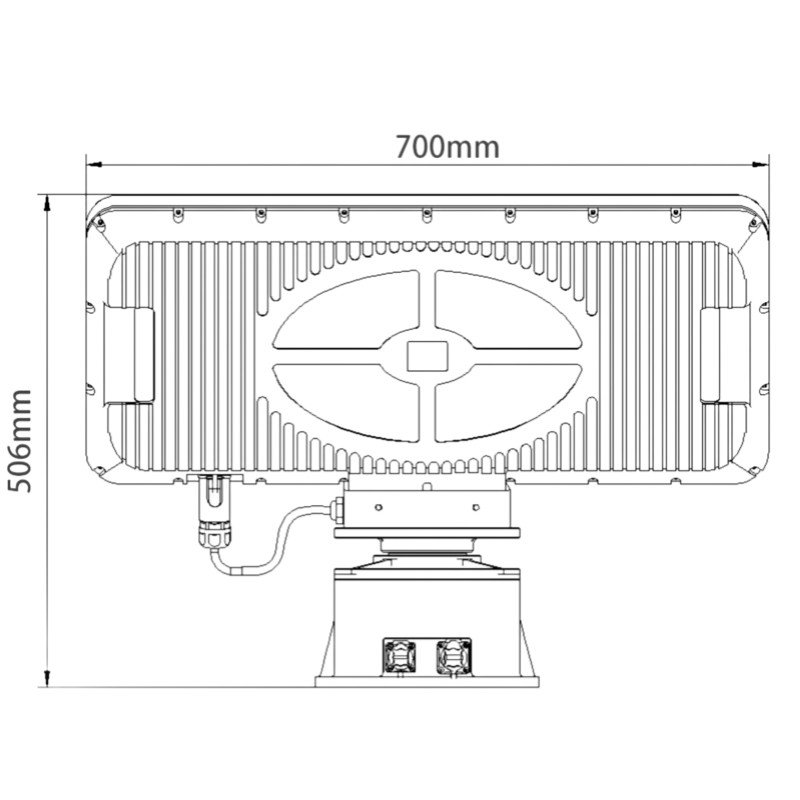

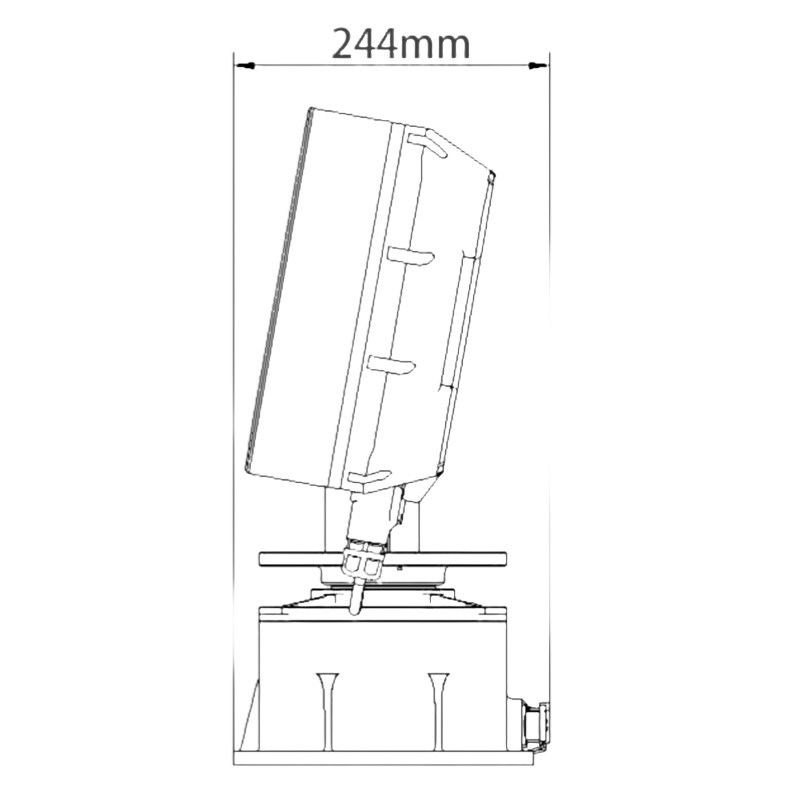

4, Product dimension:
5, After-Sales service
1) We offer 24 hours service after sales
2) If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3) Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
4) This PI is applicable to the DDP shipping agreement.
6,Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
7, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
8, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
