C Band Anti UAV Radar with 1.5km Range and Real Time Monitoring for Civilian Drone Detection

Name: C Band Anti UAV Radar with 1.5km Range and Real Time Monitoring for Civilian Drone Detection
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: 1200C
Price: 50,100.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	1200C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Working System:

Phased Array System (azimuth Phase Scan)/pulse Doppler

Working Frequency:

C Band

Range Of Radar:

1.5km

Effective Detection Distance:

100m～0.8km（Pedestrian）100m～1.2km（Vehicle）

Azimuth Coverage Angle:

≥90°

Elevation Coverage:

≥18°

Detection Speed:

0.5m/s～30m/s

Azimuth Accuracy:

≤1.0°

Supply Ability:

1000units per month

Highlight:

Advanced Technology Anti UAV Radar

Target Indication Anti UAV Radar

Civilian Drone Detection Anti UAV Radar

Product Description

Advanced Technology Anti UAV Radar for Civilian Drone Detection and Target Indication

The 1200C radar is an advanced active phased array system incorporating MIMO and DBF technologies, designed for precise detection, alerting, and target indication of pedestrians and vehicles in critical security zones.

Product Overview

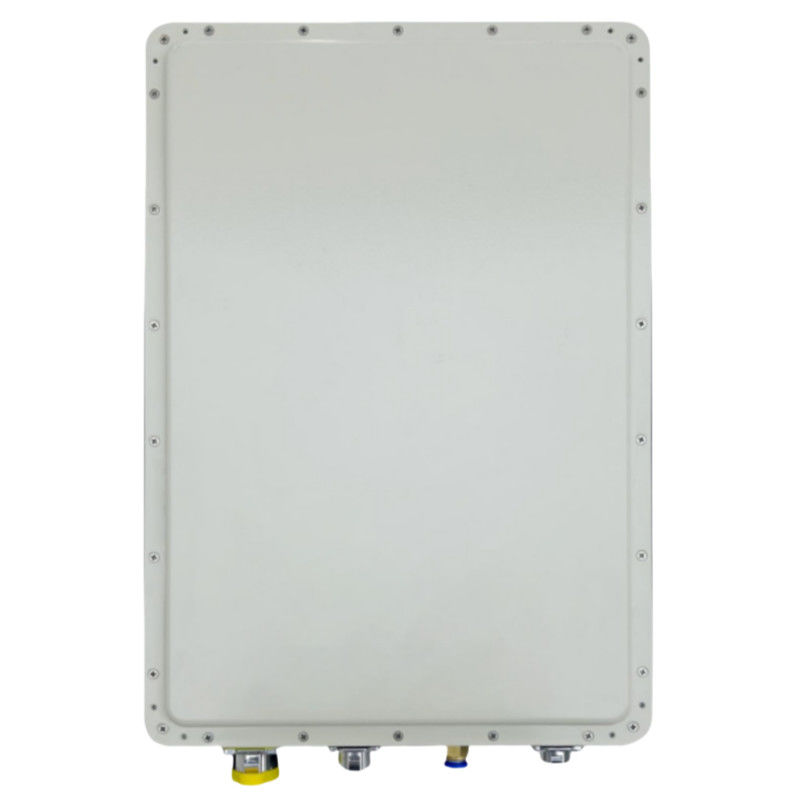

The 1200C radar system consists of a radar array and power adapter, providing precise trajectory information including orientation, distance, and velocity for targets in border areas, perimeters, checkpoints, and military bases.

Functional Highlights

Real-time Monitoring: Continuous environmental surveillance with prompt detection and response to abnormal situations
Fast Target Tracking: High data refresh rate enables stable tracking of fast-moving targets
Wide Coverage: Extensive monitoring range with capability for multiple radar integration to create seamless defense networks
Easy Installation: Simple deployment using existing infrastructure like lamp poles
24/7 Operation: All-weather performance in rain, snow, fog, and haze conditions

Technical Specifications

Parameter	Specification
Working System	Phased array system (azimuth phase scan)/Pulse Doppler
Working Frequency	C band
Range of Radar	1.5km
Effective Detection Distance	100m-0.8km (Pedestrian) / 100m-1.2km (Vehicle)
Azimuth Coverage Angle	≥90°
Elevation Coverage	≥18°
Detection Speed	0.5m/s-30m/s
Azimuth Accuracy	≤1.0°
Distance Accuracy	≤8m
Data Rate	≥2Hz
Data Interface	RJ45/1ch 10/100M Ethernet port
Power Input	≤45W (Power dissipation) AC220V-240V (Output power)
Working Temperature	-40℃ to +55℃
Weight (N.W)	≤5.5kg
