Portable Anti Drone System with ≥2km Detection and Countermeasure Range and ≥20h Standby Time for Military Use

Portable Anti Drone System with ≥2km Detection and Countermeasure Range and ≥20h Standby Time for Military Use

Brand Name:	MYT
Model Number:	DR500-AB
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Range:

≥2k

Countermeasure Range:

≥2km

Countermeasure Frequency Bands:

900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz

Standby Time:

≥20h

Supply Ability:

1000units per month

Highlight:

Government Anti Drone System

Portable Anti Drone System

Military Anti Drone System

Product Description

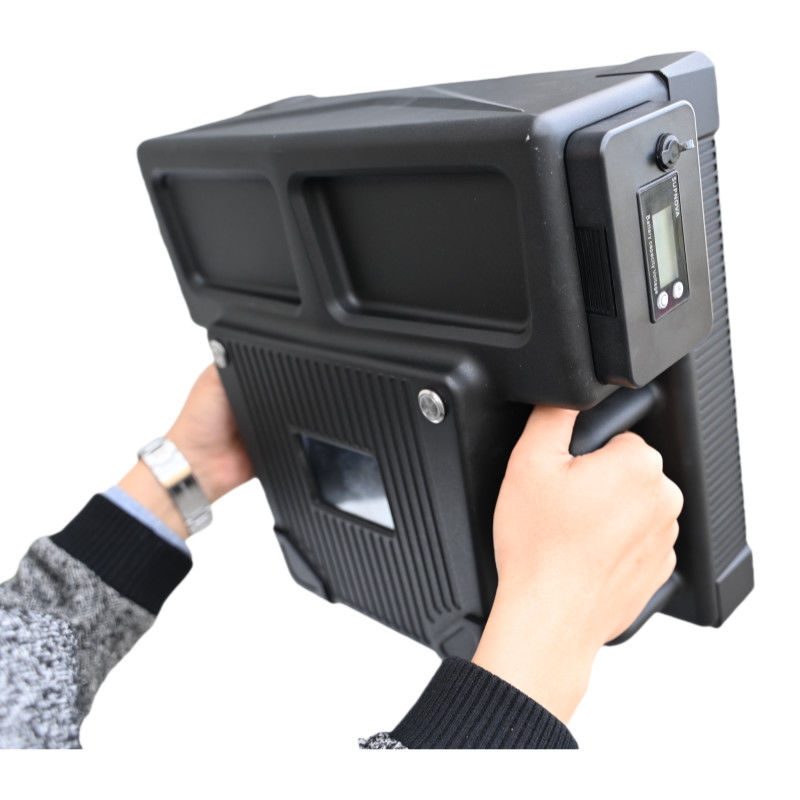

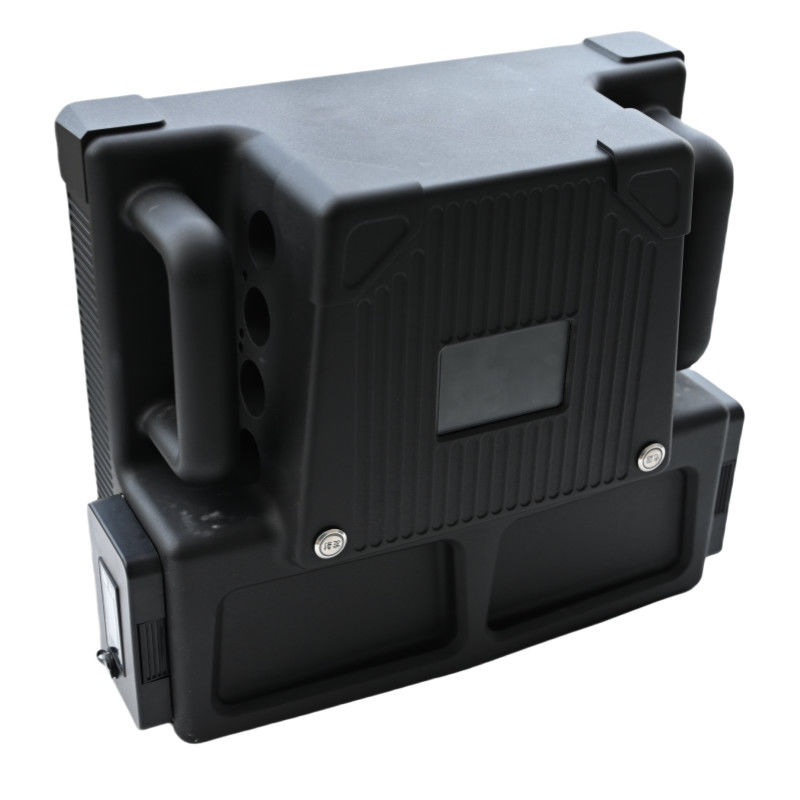

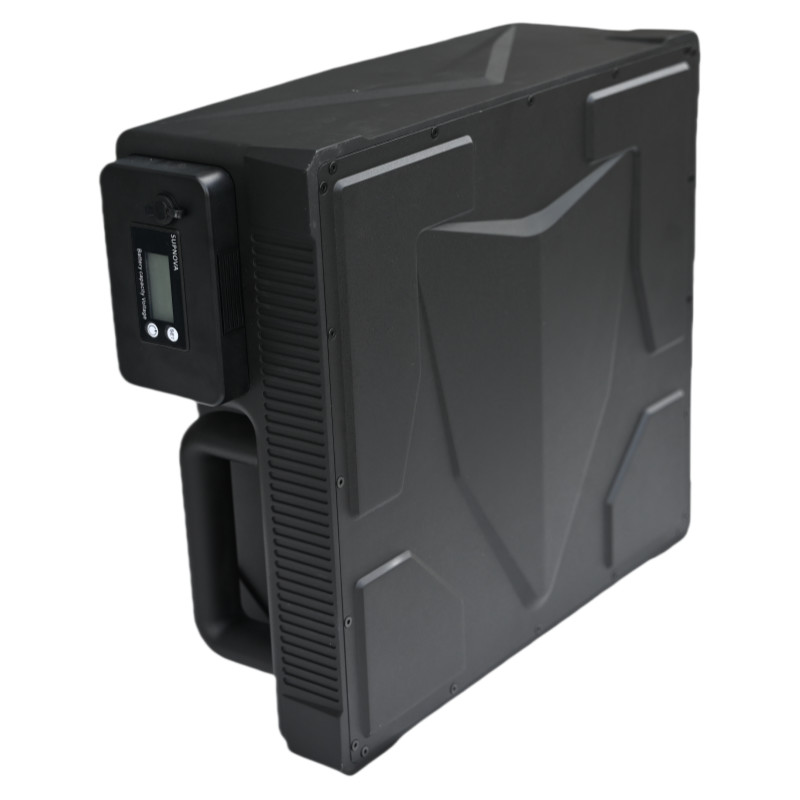

Portable Drone Detection and Jamming Shield

Advanced anti-drone system designed for military and government applications, featuring comprehensive detection, targeting, and jamming capabilities in a portable shield-shaped device.

Product Overview

This integrated drone countermeasure system is designed for individual soldiers, combining detection and early warning, target orientation, interference and strike capabilities, and display and control networking. The system operates by emitting high-intensity electromagnetic waves to neutralize various small and medium-sized civilian drones by disrupting their flight control systems and satellite positioning receivers.

Key Features

400MHz-6GHz Full-frequency-band Detection
2km Precise and Efficient Jamming
Rapid and Mobile Deployment
Super Practical Design
Smart Touch Screen Interface

Technical Specifications

Product Name	Portable (Shield-shaped) Drone Detection and Defense Device
Product Model	DR500-AB
Power Consumption	≤600W
Detection Frequency Bands	400MHz-1500MHz, 2200-2500MHz/5150-5950MHz (DJI, Autel and some WIFI drones)
Detection Range	≥2km (depending on the model)
Countermeasure Range	≥2km (depending on the model)
Countermeasure Frequency Bands	900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
Channel Power	1555～1650MHz 20W 840～930MHz 50W 2400～2500MHz 50W 1050～1280MHz 20W 5725-5850MHz 50W 5150-5350MHz 20W
Interception Channels	Six channels
Countermeasure Azimuth Coverage	≥30°

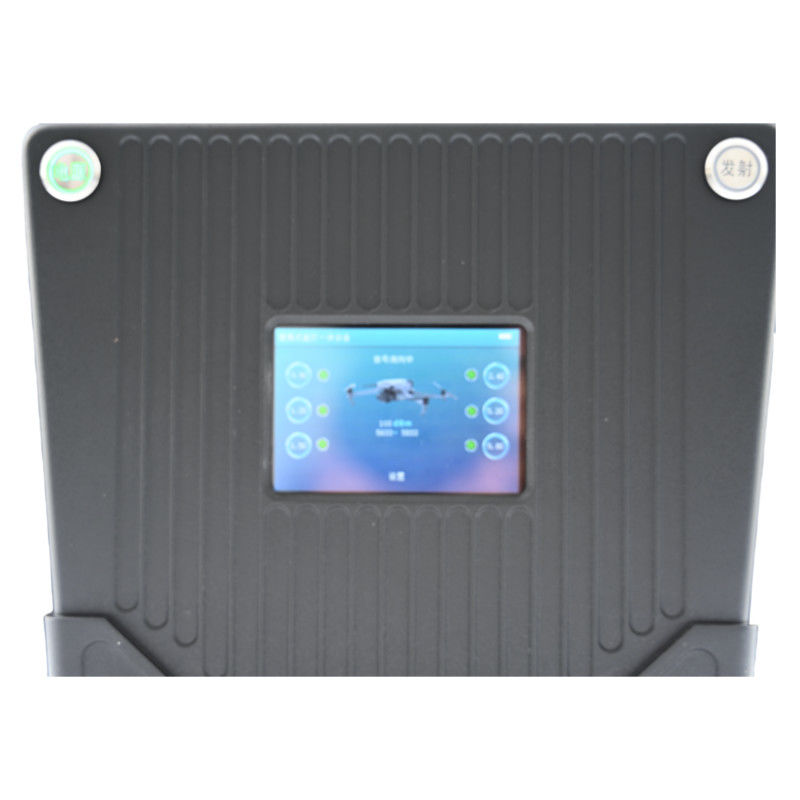

Display Size	≥3.5 inches, capable of displaying drone signal strength and frequency bands simultaneously
Screen Type	Touch screen
Status Indication Function	The display can show the detected drone frequency bands and signal strength
Direction Finding Function	≤10°
Detection Angle	Horizontal detection angle coverage 0°~360°
Jamming-to-Signal Ratio	≥20:1
Alarm Prompt Function	After detecting a drone target, it can give an alarm prompt through sound
Interference Function Check	Can emit wireless interference signals to make drones hover, return to home or force land
Frequency Band Switching Function	Can choose single communication interference, single navigation interference or full frequency interference
Interference Coverage Angle	Horizontal≥45°, vertical≥30°
Networking Supervision	Can be multi-level interconnected with mobile terminals (APP), rear-end command and management platforms (optional)
Operating Temperature	Operating temperature: -40℃-60℃
Product Weight	8Kg (including battery)
Product Dimensions	Length 390mm Width 160mm Height 330mm
Battery Parameters	Standard voltage 29.2V, operating voltage range 25.9V~29.4V, capacity 10Ah
Removable Battery	Uses a one-key plug-in and pull-out battery box, battery replacement time should be ≤5s
Standby Time	≥20h, with detection and alarm functions during standby
Working Time	≥30min
Charging Function	Supports charging with AC220V (standard power adapter), has battery level display function

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.

Certification & Compliance

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.

Packaging & Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
