MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DR400-D |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Packaging Details: | 360mm*250mm*250mm |
| Delivery Time: | 10 work days |
| Payment Terms: | TT, LC |
| Supply Ability: | 10000 units per month |
| Video Capture: | 1.5km | Drone Detection: | 3km |
|---|---|---|---|
| Recognition Type: | DJI, Daotong, Haboson, FPV, DIY Drones. | Detection Response Time: | ≤3s (8 Frequency Bands); ≤5s (12 Frequency Bands) |
| Highlight: | Portable Full-Band Anti Drone System,Accurate Identification Anti Drone System,Customizable Scanning Anti Drone System |
||

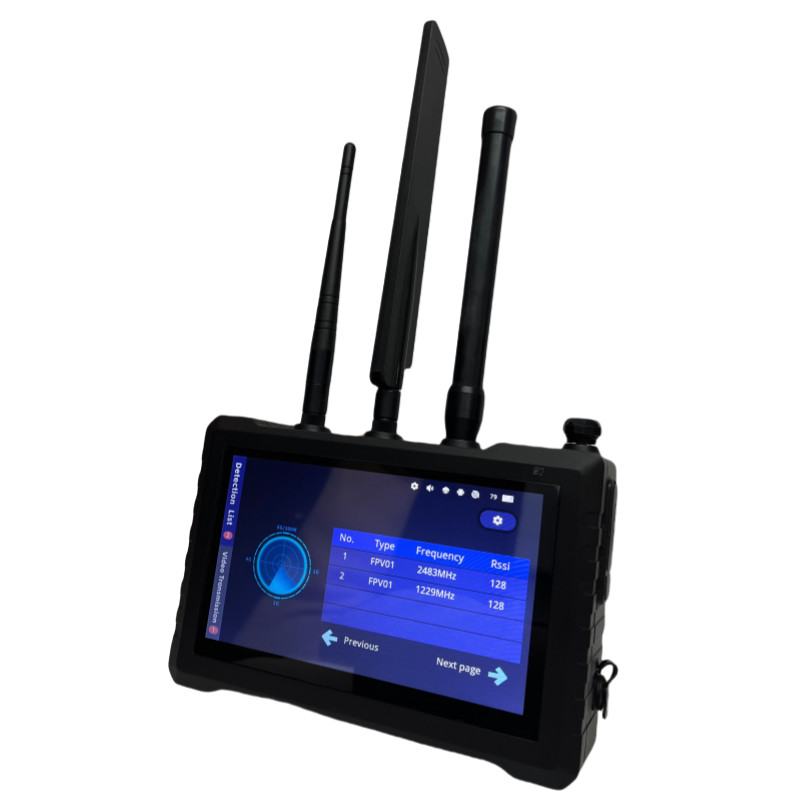

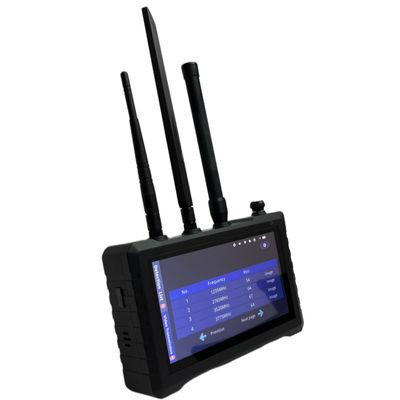

Handheld Drone Detector Portable Full-Band Detection with Customizable Scanning Options for Accurate Identification of Various Drone
1, Equipment Overview
The Portable FPV Transmission Interception Device seamlessly integrates detection, video capture, and storage functionalities. It provides extensive detection across all frequency bands, including FPV analog transmission detection, video recording, visual monitoring, and storage options. In complex electromagnetic environments, it is capable of accurately identifying various types of drones, such as quadcopters, fixed-wing aircraft, DIY models, and FPV drones, while generating audible, visual, and vibration alerts. This device is well-suited for a range of applications, including routine patrols, the protection of critical assets, team operations, and evidence gathering in investigations.
2, Specification
| Serial No. | Name | Performance Indicators |
|---|---|---|
| 1 | Recognition Type | Supports mainstream drones such as DJI, Daotong, and Haboson, as well as FPV racing drones and DIY drones. |
| 2 | Frequency Range | Supports customizable scanning from 70MHz to 6.2GHz (default detection bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other bands can be customized). |
| 3 | FPV Transmission Detection | Supports detection of all analog transmissions within the 300MHz-6GHz frequency range (user customizable). |
| 4 | Detection Radius | ≥3km (line of sight, clean electromagnetic environment) |
| 5 | Video Capture Distance | ≥1.5km (line of sight, clean electromagnetic environment) |
| 6 | Video Storage Space | 32G storage card |
| 7 | Detection Response Time | ≤3s (8 frequency bands); ≤5s (12 frequency bands) |
| 8 | Alarm Methods | Sound, vibration, light |
| 9 | Screen Size | 7-inch touchscreen |
| 10 | Power Supply Method | Powered by lithium battery |
| 11 | Battery Capacity | 7000mAh |
| 12 | Device Weight | ≤2kg |
| 13 | Device Dimensions | LengthWidthHeight: 200mm130mm40mm |
3, Device Features and Functions
1) Full-Band Detection:
Extensive detection capability spanning the 70-6.2G frequency range.
2) Comprehensive FPV Frequency Coverage:
Complete coverage of analog transmissions within the 300-6.2G range.

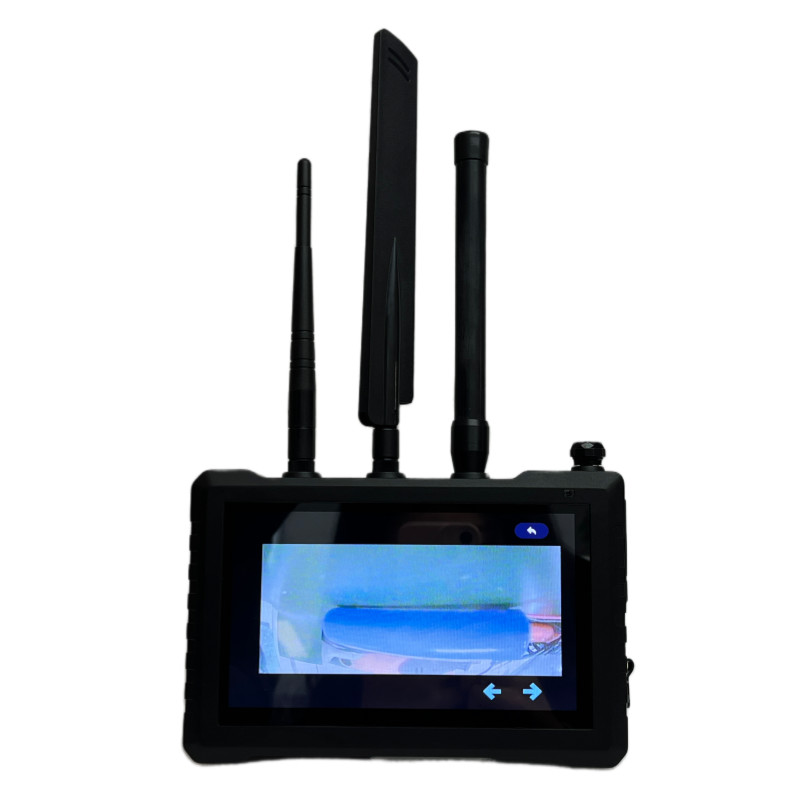

3) Video Capture:
Capability to capture all analog transmissions, enabling "first-person view" analysis of FPV intrusion targets and real-time scenarios.
4) Video Storage:
Real-time captured video can be stored for evidential purposes.

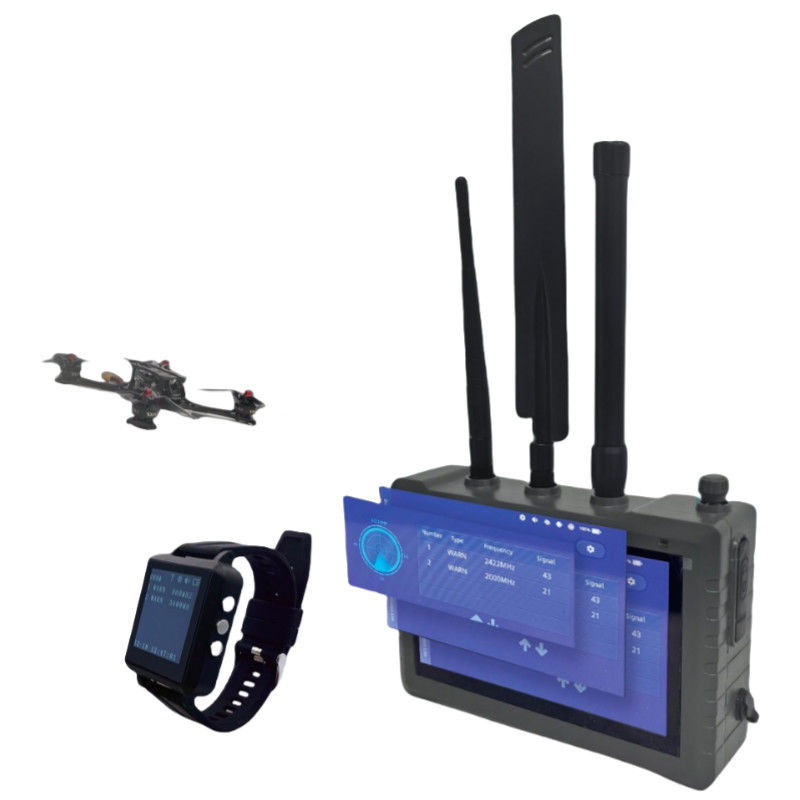

5) Team Collaboration:
Supports a 1+N mode with a master-slave configuration for synchronized alarm responses.
6) Portable Design:
Features a multifunctional wrist strap for versatile carrying options.
4, After-Sales service
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
5, Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
6, Certification Certificate
7, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
