Long Range Anti Drone Jammer with ＞10km Detection and ＞5km Defense Distance for Multi-source Cooperation

Long Range Anti Drone Jammer with ＞10km Detection and ＞5km Defense Distance for Multi-source Cooperation

Brand Name:	MYT
Model Number:	Drones Defense & Low-Altitude Defense System
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Distance:

＞10km

Defense Distance:

＞5km

Supply Ability:

1000units per month

Highlight:

10km Low Altitude Defense System

Long Range Low-Altitude Defense System

Product Description

Long Range Defense Low-Altitude Defense System

Detection Distance: >10km | Defense Distance: >5km

Product Overview

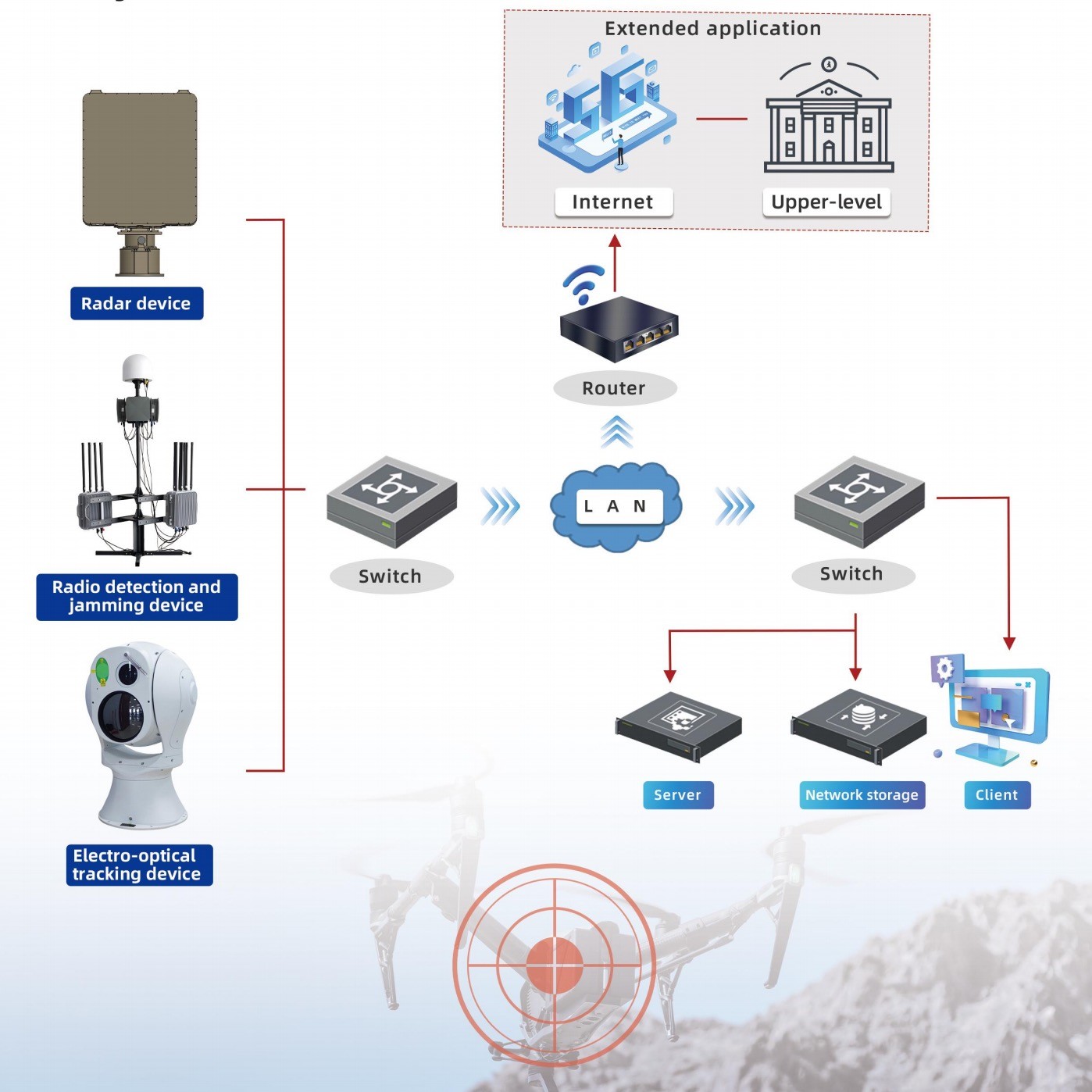

This advanced drone defense and low-altitude security system integrates radar detection, radio detection and jamming equipment, and electro-optical tracking technologies. Utilizing multi-spectrum detection, multi-source data fusion, and intelligent analysis, it provides comprehensive protection against low-altitude drones with early detection, rapid locking, stable tracking, accurate identification, and effective countermeasures.

System Software

Our comprehensive visual anti-drone management platform integrates multi-source cooperative linkage, device management, situational display and control, decision-making and command, record-keeping and evidence collection, and target retrieval. Built on multi-spectrum detection technology, GIS map situational display, and radio signal jamming technology, it creates an automated, intelligent drone defense and control integrated platform.

Core Features

Multi-source Cooperation and Intelligent Visual Tracking: Guides gimbal based on target position data from radar or drone detection equipment, enabling visual identification and long-range automatic tracking through intelligent vision.
Device Management: Supports unified management of radio frequency detectors, radar systems, electro-optical turntables, jammers, and spoofing devices.
Drone Flight Trajectory Display: Real-time display of drone flight paths and historical record replay on GIS mapping systems.
Jamming and Spoofing: Utilizes jamming and spoofing devices to counteract drones with multiple jamming modes including wideband jamming and unattended attack capabilities.
Video Preview and PTZ Control: Real-time video preview with visible light and thermal imaging switching, plus comprehensive gimbal orientation and zoom lens control.

System Hardware Specifications

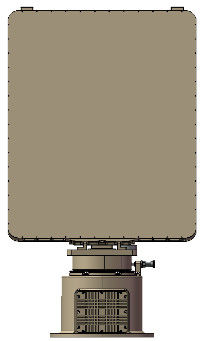

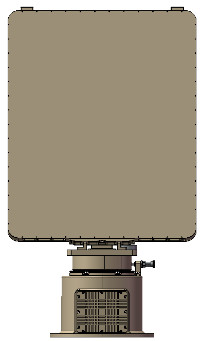

Model	DD-R5	DD-R8	DC-R10
Appearance
Working Frequency Band	X band
Coverage - Azimuth	360°
Coverage - Elevation	-5~40°	-4~60°	-5~60°
Range	10km	15km	20km
Altitude	1000m	2000m	3000m
Detection Range - Small Rotary-wing	≥5km	≥8km	≥10km
Detection Range - Small Fixed-wing	≥8km	≥12km	≥15km
Accuracy - Distance	≤5m (RMS)
Accuracy - Angle	Azimuth: ≤0.4° (RMS), Elevation: ≤0.4° (RMS)
Simultaneous Tracking Quantity	≥200	≥500	≥500
Tracking Speed	1~150m/s
Power Consumption	≤240W	≤300W	≤380W
Weight (kg)	≤30	≤30	≤50
Protection Level	IP66

Drone Detection and Jamming Device

Model	DD-D8	DD-D13	DD-D16
Appearance
Detection Range	70MHz-6GHz full-band scanning, detection, and display
Key Frequency Band	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range	≥10km (environment dependent)
FPV Video Transmission Detection	500MHz-6GHz full frequency scan and display
Video Transmission Detection Range	≥1.5km (Supports real-time video viewing)
Omnidirectional Jamming Band	800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz	350MHz, 433MHz, 700MHz, 800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz, 6GHz	350MHz, 433MHz, 700MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.3GHz, 1.5GHz, 1.8GHz, 2.1GHz, 5.2GHz, 5.4GHz, 5.8GHz, 5.6GHz, 2.4GHz
Directional Jamming Band	----	900MHz, 2.4GHz, 5.2GHz, 5.8GHz	900MHz, 2.4GHz, 5.2GHz, 5.8GHz
Jamming Range	≥3km
Weight	≤50kg	≤150kg	≤150kg

Electro-optical Tracking Device

Model	DD-E2	DD-E3	DD-E5
Appearance
Elevation Angle	-90~90°	-30~60°	-90~90°
Azimuth Angle	360°
Identification Range - Visible Light	1000m	2000m	3000m
Identification Range - Thermal Imaging	500m	800m	1200m
Tracking Range - Visible Light	1000m	3000m	5000m
Tracking Range - Thermal Imaging	500m	1000m	1700m
Visible Light Unit	2 MP, 7-320 mm focal length	4 MP, 25-500 mm focal length	4 MP, 12.5-775 mm focal length
Thermal Imaging Unit	640*512 100mm fixed focus	640*512 31～155mm focal length	640*512 22～230mm focal length
Power Consumption	≤120W Peak: 300W	≤150W Peak: 350W	≤150W Peak: ≤600W
Protection Level	IP67	IP66	IP67
Weight (kg)	11.5	40+12 (intelligent analysis box)	≤110

Application Scenarios

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products, accumulating various technical patents.

Our products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems. This allows for cost savings, reduced human resource allocation, and ensures the safety of clients' lives and property.
