Short Range Intelligent Photoelectric Turntable Camera with Backlit Starlight CMOS for Drone Detection and Tracking up to 2500m

Name: Short Range Intelligent Photoelectric Turntable Camera with Backlit Starlight CMOS for Drone Detection and Tracking up to 2500m
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DD-E2
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DD-E2
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Visible Camera Detection Distance:

≥ 2500m

Tracking Distance:

≥ 2000m

Identification Distance:

≥ 1000m

Sensors:

Backlit Starlight CMOS

Supply Ability:

1000units per month

Highlight:

Drone Tracking Camera

Short Range Photoelectric Turntable Camera

Drone Detection Camera

Product Description

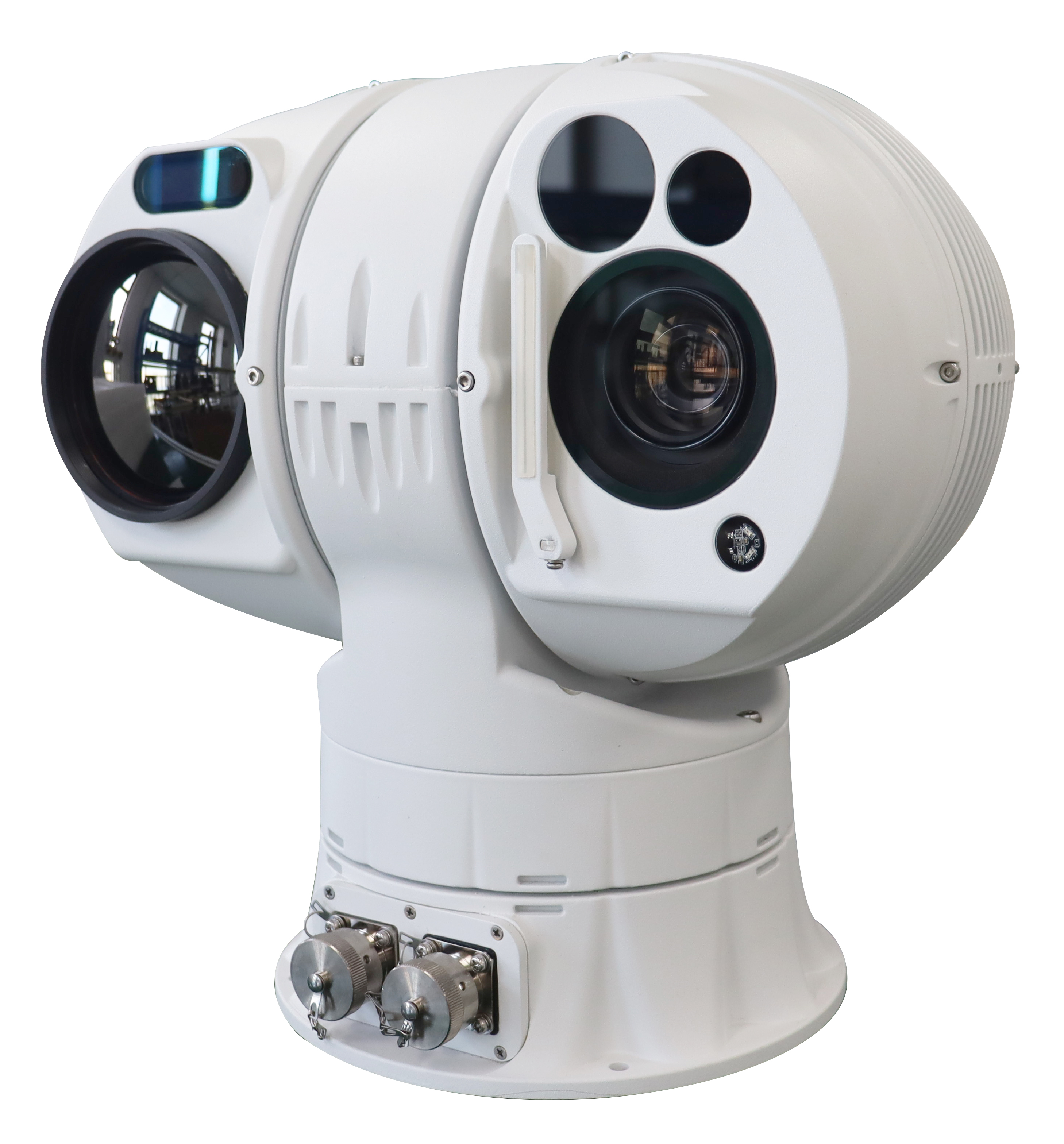

DD-E2 Short-range Intelligent Photoelectric Turntable Camera

The DD-E2 series of miniature photoelectric turntables is designed for integrated air-ground security in critical locations including military bases, nuclear/biological/chemical defense facilities, border zones, conference centers, prisons, and airports. This advanced system integrates high-definition visible light cameras, non-cooled thermal imaging, and multi-spectrum detection modules with optional laser rangefinder capability. When combined with intelligent target detection and tracking modules, it effectively detects, tracks, identifies, and alerts against small to medium-sized drones, personnel, vehicles, and vessels.

Key Features

Multi-spectrum Detection: Integrates low-light HD visible light and high-performance non-cooling thermal imaging for complementary detection capabilities
Rapid Response: Rotation speed up to 100°/s with acceleration of 120°/s² for quick target acquisition
Comprehensive Coverage: 360° azimuth and -90° to +90° pitch rotation for full-dimensional surveillance
High Precision: Positioning accuracy better than 0.02° with precision closed-loop servo control
Advanced Tracking: Multiple target capture and tracking algorithms with high-precision servo control
Intelligent Operation: Supports target intrusion detection, classification recognition, and radar linkage
Rugged Construction: IP67 protection rating with high-strength aluminum alloy for harsh environments

Technical Specifications

Parameter	Specification
Model	DD-E2 Type Photoelectric Turntable
Working Distance	Visible Camera: Detection ≥2500m, Tracking ≥2000m, Identification ≥1000m Thermal Camera: Detection ≥1000m, Tracking ≥800m, Identification ≥500m
Visible Camera	Backlit starlight CMOS sensor • 1920*1080 resolution • 7-320mm HD lens • 1.28°-41.67° field angle • H.264/H.265 video format • AI ISP image enhancement
Thermal Camera	VOx non-cooling focal plane • 640*512 resolution • 8-14μm IR • 100mm prime lens • NETD ≤40mk • Digital zoom 1x-8x
Servo Table	360° continuous horizontal rotation • -90° to +90° pitch • Speed: 0.01-100°/s horizontal, 0.01-80°/s pitch • Position accuracy better than 0.02°
Intelligent Analysis	Front-end embedded AI module (16TOPS) • Regional/boundary intrusion detection • Target classification (personnel, vehicles, drones)
Tracking Function	Multi-target detection and tracking • Radar linkage support • Automatic zoom • Tracking accuracy ≤0.5mrad
Environmental	Operating temperature: -20℃ to +60℃ • IP67 protection • Salt spray resistance • Surge protection
Power & Physical	AC220V±20%, 50Hz • Peak power <300W • Weight <12kg • Dimensions: 314312200mm

Dimensions

Equipment external dimension diagram (reference)

Application Scenarios

Primarily used for low-altitude security in military bases, airports, prisons, nuclear/biological/chemical facilities, border defense, conference centers, office buildings, oil fields, and other critical locations.

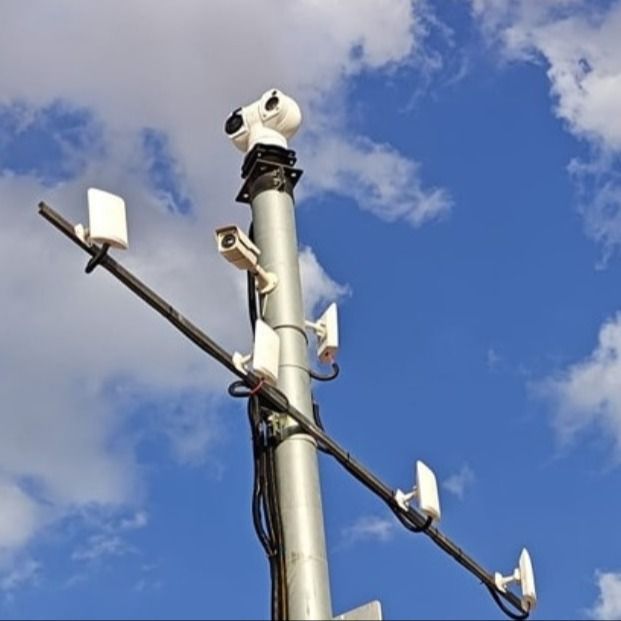

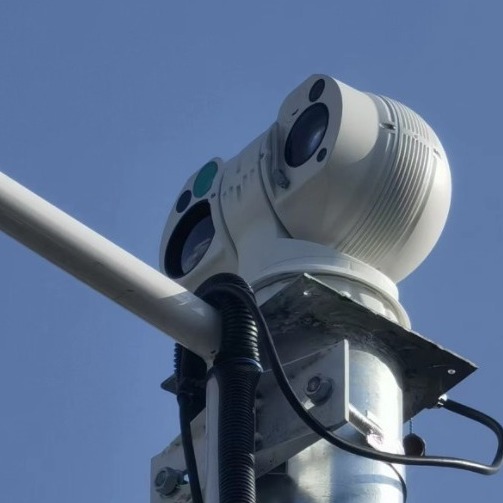

Typical Application

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple AI companies, the company has established research laboratories and accumulated numerous technical patents. Our products integrate optoelectronics, radar, vibration sensing, thermal imaging, facial recognition, and radio frequency management to provide 24-hour uninterrupted anti-drone defense and perimeter security systems.
