Long Range Intelligent Camera Photoelectric Turntable Anti Drone System For Key Area Safety And Protection

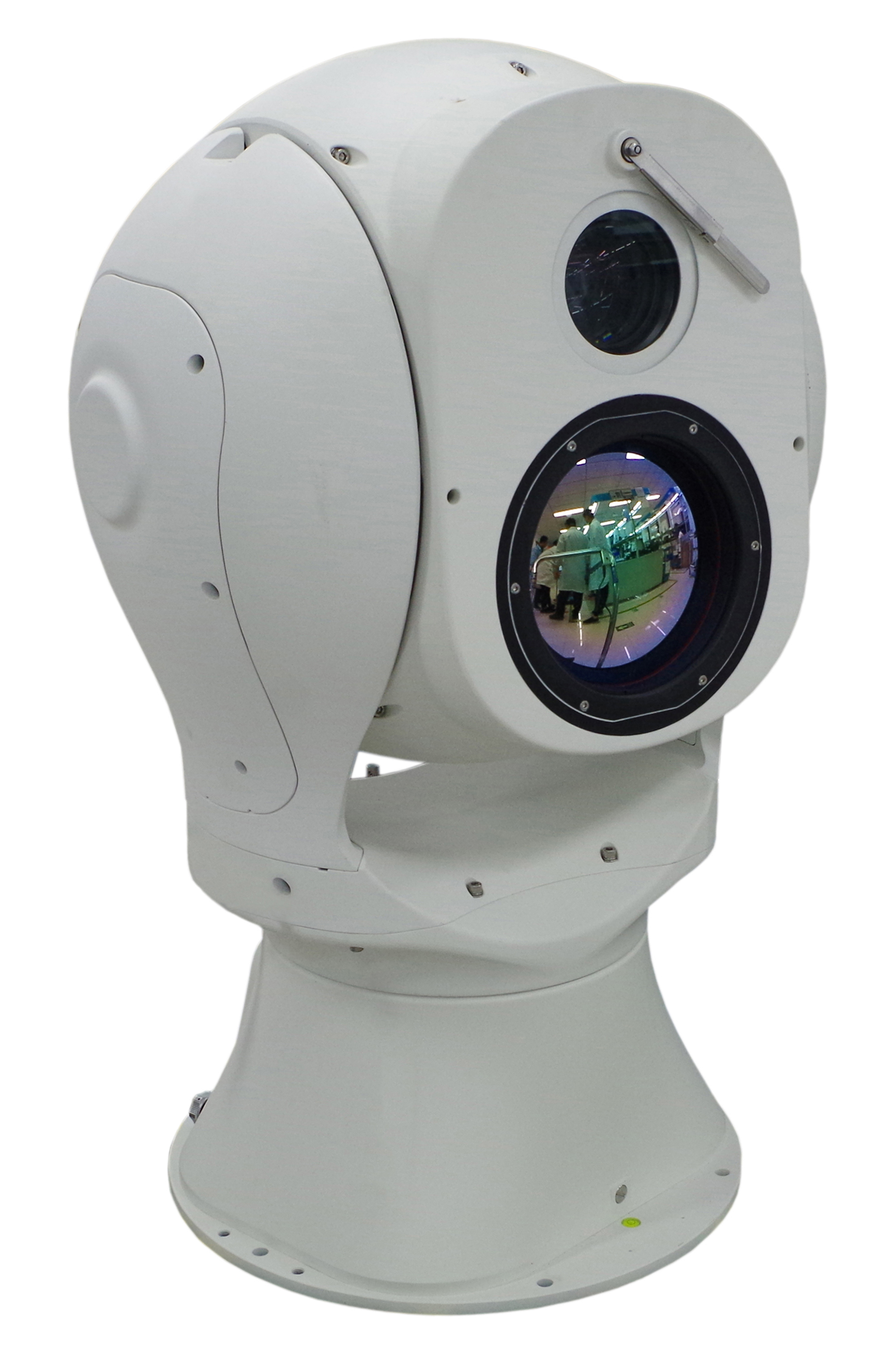

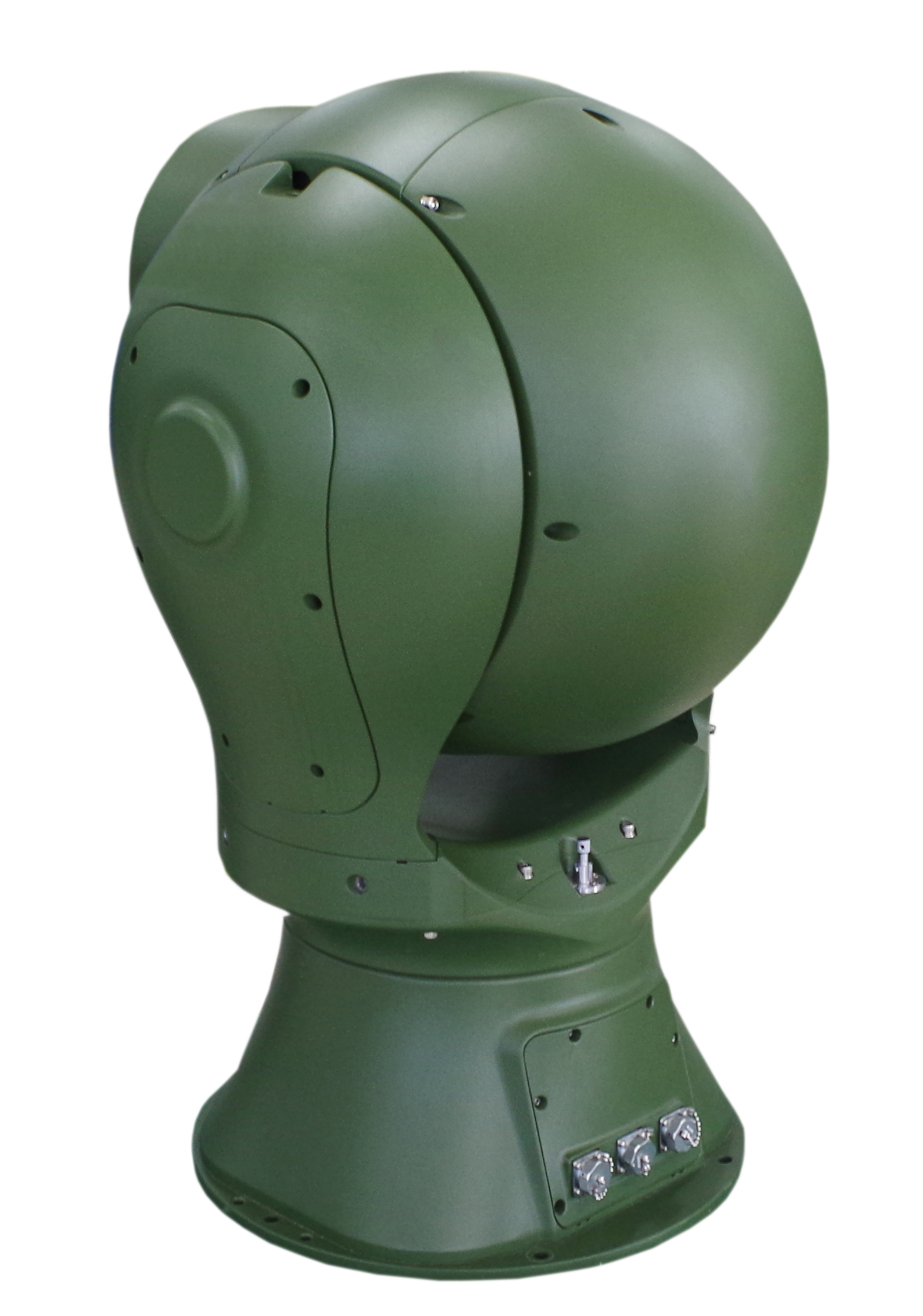

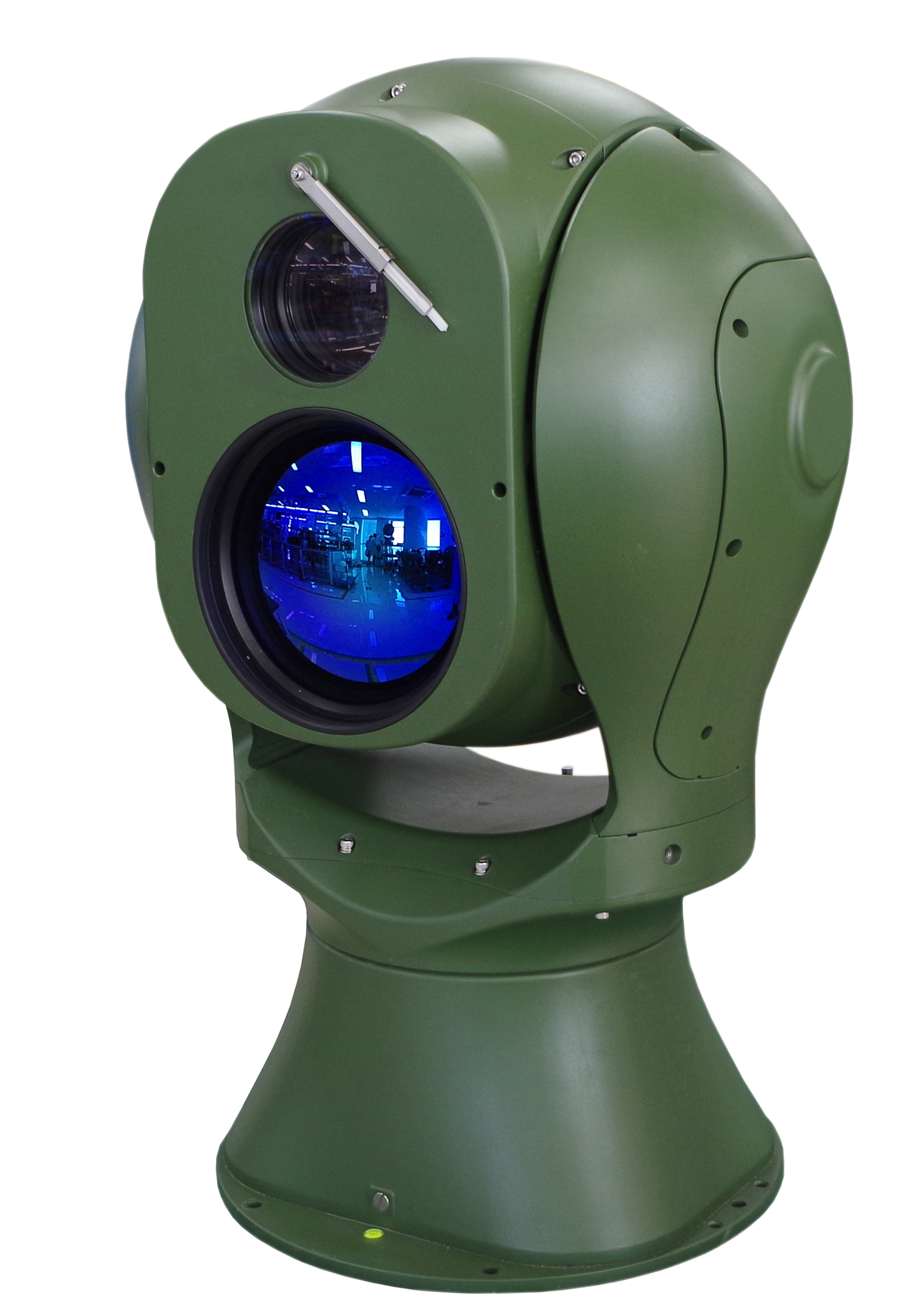

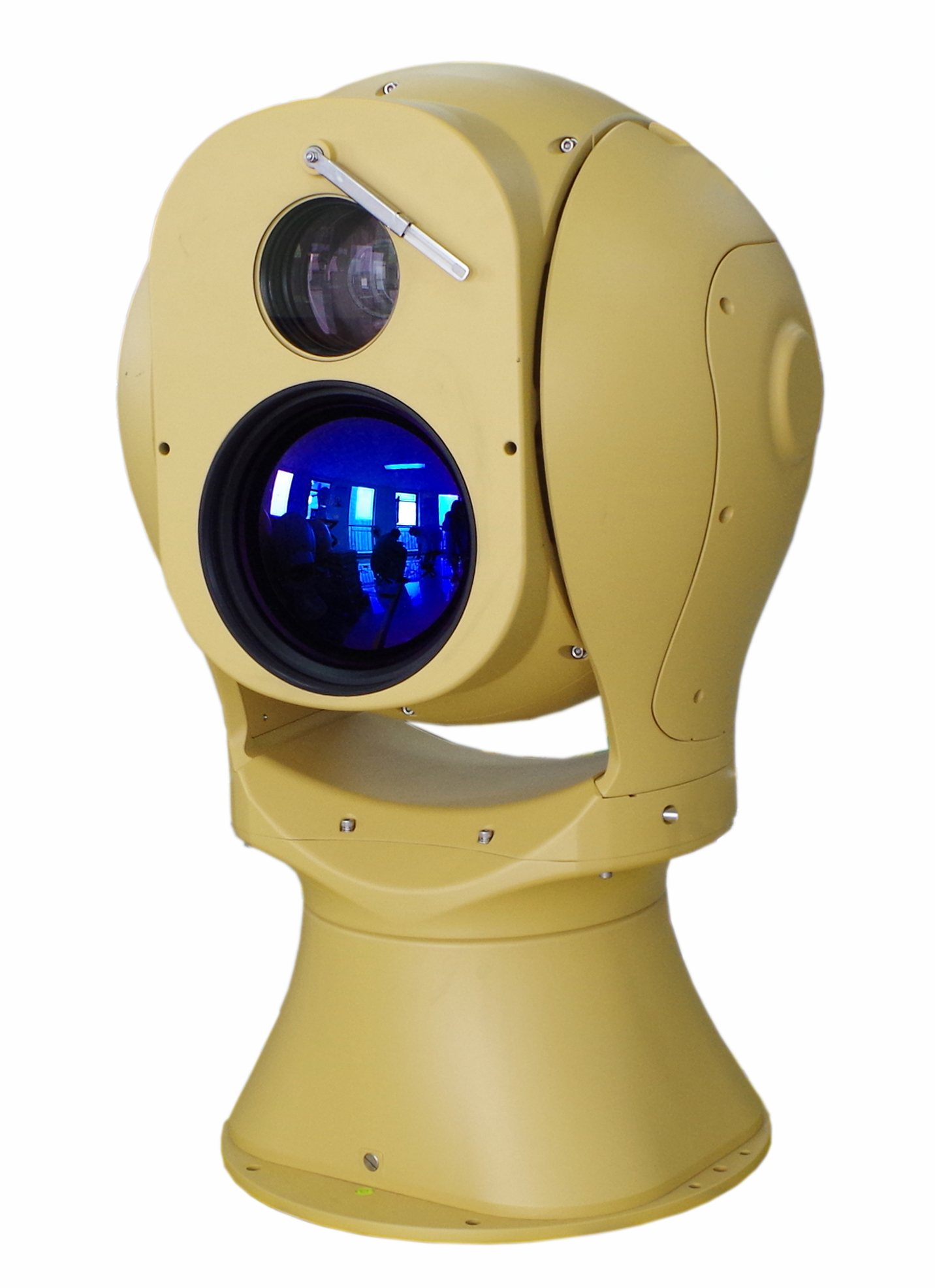

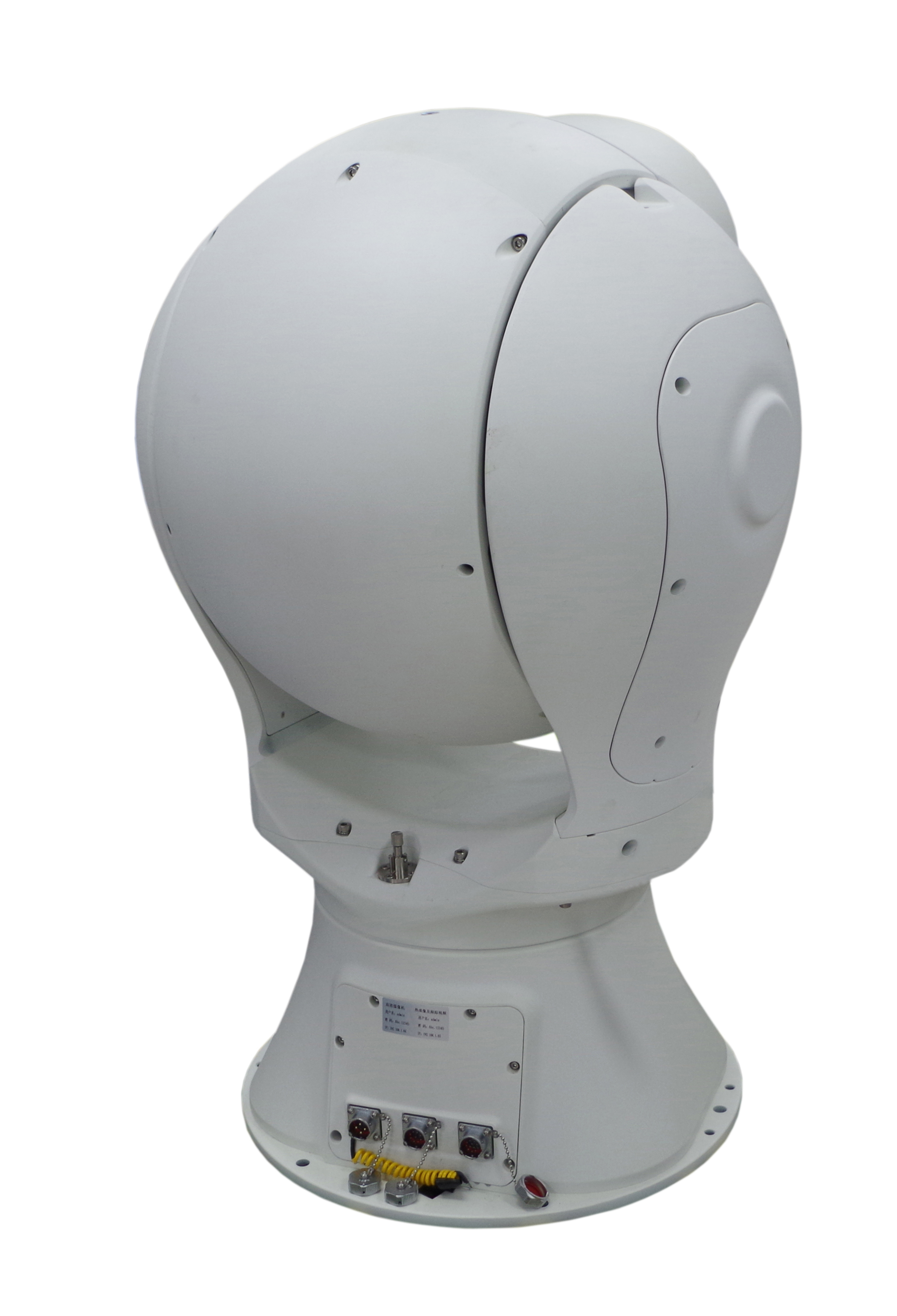

DD-E5 Long-range Intelligent Camera

1, Introduction

  The DD-E5 photoelectric turntable is independently developed by our company, specifically designed for low-altitude safety in key areas such as military bases, nuclear and biological defense sites, border and coastal defense, conference centers, office buildings, prisons, and airports. It integrates high-definition visible light cameras, non-cooled thermal imaging modules, and multi-spectral detection modules, complemented by intelligent target detection and tracking modules. This system can effectively detect, track, identify, and warn against civilian small to medium-sized rotary-wing and fixed-wing drones. The photoelectric turntable can operate independently or in conjunction with radar equipment, passive spectrum detection devices, and radio interference devices to form an automatic drone defense system, ensuring effective low-altitude safety around the clock and all year round.

  The product features a spherical design, making it resistant to strong winds and low vibration, ensuring stable and clear imaging. It adopts an upper-lower split structure, allowing for independent packaging and transportation, which disperses the overall weight and significantly enhances transportability in complex terrains. The modular design enables flexible configuration of detection channels and optical configurations according to customer needs, meeting requirements for detection, identification, and recognition under various weather conditions such as complete darkness, fog, rain, and snow. The product uses an integral die-casting process, resulting in a robust structure that is lightweight and highly sealed. The entire unit is filled with nitrogen and has an IP67 protection rating, enabling reliable operation in harsh outdoor environments over long periods.

2, Features

1) High Payload Capacity
Capable of supporting long-focus visible-light cameras, uncooled infrared thermal imagers, and optional laser rangefinders, enabling ultra-long-range target observation.
2) Broad Spectral Detection Range
Integrates high-definition visible light and uncooled infrared thermal imaging, leveraging multi-band detection for enhanced target visibility. Multi-source data fusion ensures seamless day/night and all-weather monitoring.
3) Rapid Pan/Tilt Speed
Achieves a rotational speed of up to 100°/s with acceleration of 120°/s², ensuring swift start-stop motion and smooth operation for fast-moving target capture and tracking.
4) Full-Area Coverage
Azimuth rotation: 0°–360°; pitch rotation: -30° to +60°, eliminating blind spots and enabling full-dimensional surveillance.
5) Precision Control
Utilizes a high-precision angle encoder and closed-loop servo control system for 0.01° positioning accuracy. Paired with an advanced autofocus mechanism, it ensures sharp image clarity.
6) Advanced Tracking Capabilities
Equipped with intelligent target acquisition and tracking algorithms, enhanced by high-precision servo control for stable tracking even during rapid motion and directional changes.
7) Intelligent Automation
Supports intrusion alerts, motion detection, target recognition, auto-tracking, radar linkage, 3D zoom positioning, and PHM health management, boosting unmanned operation and system autonomy.
8) Robust Self-Protection
Features auto temperature regulation, obstruction protection, heat-source shielding, focus protection, and lightning/surge resistance to maximize system reliability.
9) Harsh-Environment Durability
Constructed with high-strength aluminum alloy, IP66-rated housing, resistant to rain, dust, corrosion, and EMI, ensuring long-term performance in extreme field conditions.

3, Technical Parameters

5, Application Scenarios

  It is mainly used for low-altitude security prevention in key places such as military bases, airports, prisons, nuclear, biological and chemical industries, border and coastal defense, conference centers, office buildings, oil fields, oil depots, etc. Typical application cases in military and civil airports in recent years include:

   Anti-drone

In 2019, it will provide support for Shuangliu International Airport and the National Day parade

Hong Kong International Airport, Daxing International Airport, 2020

In 2021, Hefei civil air defense will counter unmanned aircraft and anti-drone security for the 100th anniversary of the founding of the Party

In 2022, a unit in Beijing will provide support for anti-drone operations at low altitude and anti-drone operations in Hong Kong

In 2023, a certain J trade anti-drone vehicle and an Australian BD anti-drone will be deployed

In 2024, the airport will conduct anti-wild bird detection in Daxing, bird detection in Ningbo and anti-wild bird detection in Russia's foreign trade

Drone identification and tracking, eagle eye display

Identification and tracking of high-speed UAV in complex background

Bird recognition and tracking

Anti-drone system applications

6, Typical deployment

Anti-drone system process

7, Certification Certificate

8, Company profile

  Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.

With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

  The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.

9, Customer Service

1). We offer 24 hours service after sales

2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.

3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
