10 kW Power 1km Strike Distance ≤15 s Damage Time Ytterbium-doped Fiber Laser Anti Drone System

10 kW Power 1km Strike Distance ≤15 s Damage Time Ytterbium-doped Fiber Laser Anti Drone System

Brand Name:	MYT
Model Number:	DD-L10
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Maximum Acquisition Distance:

≥3000 M

Strike Distance:

≤850 M

Damage Time:

≤15 S

Laser Power:

10 KW

Supply Ability:

1000units per month

Highlight:

10 kw Laser Anti Drone

Ytterbium-doped Fiber Laser Anti Drone

1km Laser Anti Drone

Product Description

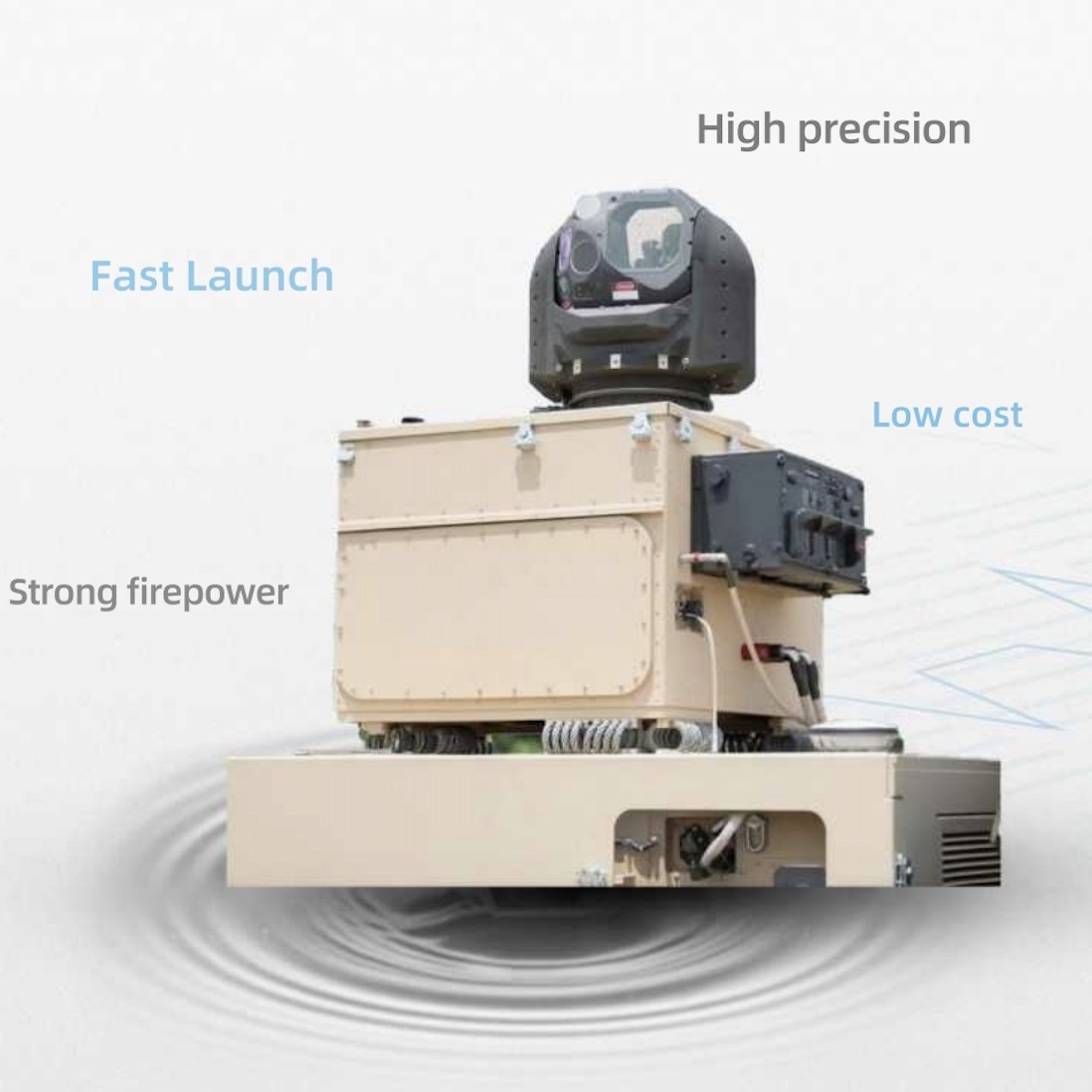

DR-L10 Ultra Power Ytterbium-doped Fiber Laser System

The DR-L10 is a cutting-edge high-energy laser system engineered to rapidly neutralize airborne threats. This formidable system delivers an exceptional 10 kW laser output, enabling target acquisition beyond 800 meters and delivering precise strikes within 500 meters. Engineered for speed and efficiency, it achieves target damage in just 15 seconds or less with uncompromising accuracy (≤7 μrad) for pinpoint targeting of fast-moving objects. The system offers maximum operational flexibility with both Manual and Auto modes for seamless capture and strike operations, and can be field-deployed within 10 minutes.

Key Product Highlights

Fast Launch: Light-speed deployment with rapid target engagement
High Precision: Laser beam focused to coin size for maximum strike efficiency
Strong Firepower: 10 kW power ensures lethal damage to targets
Low Cost: Long-term, continuous, repeatable launch capability
Light Weight: Easy deployment and mobility
Intelligent Operation: Supports automatic strike functionality

Technical Specifications

Key Parameter	Unit	Specification
Operating Mode	/	CW (Continuous Wave)
Polarization State	/	Random
Center Wavelength	nm	1080 ± 1
Spectral Width (@3 dB)	nm	±5
Max. Output Power	W	10000
Power Adjustment Range	%	5-100
Power Stability	rms %	±3 %
Beam Quality M²	--	≤3.8
Output Connector	/	QBH
Core Diameter	μm	50
Output Fiber Length	m	2
Input Voltage	VAC	DC (400 V ±10 %, Customizable)
Max. Power Consumption	W	30000
Weight	kg	≤60
Cooling Method	--	Water Cooling (22 °C-25 °C)
Operating Temperature	°C	-5 to +40
Storage Temperature	°C	-20 to +60

Properties	Parameters
Maximum acquisition distance	≥3000 m
Strike distance	≤850 m
Damage time	≤15 s
Laser power	10 kW
Aiming accuracy	≤7 μrad
Continuous operating time	Standby 4 h, 15 s continuous, 200 s total strike time
Capture mode	Manual / Auto
Strike mode	Manual / Auto
Number of operators	2-3
Deployment time	≤10 min
Weight of optical turret	≤180 kg
Weight of laser device	≤60 kg

Application Scenarios

Certification & Compliance

Manufacturer Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company maintains research laboratories for AI unmanned field products and holds various technical patents.

The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, delivering 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems. This comprehensive approach enables cost savings, reduced human resource allocation, and ensures the safety of clients' lives and property.

Customer Service & Support

24-hour after-sales service support
Online technical support for usage or quality issues
3-month return policy from dispatch date for undamaged products
Full refund or product modification options available
