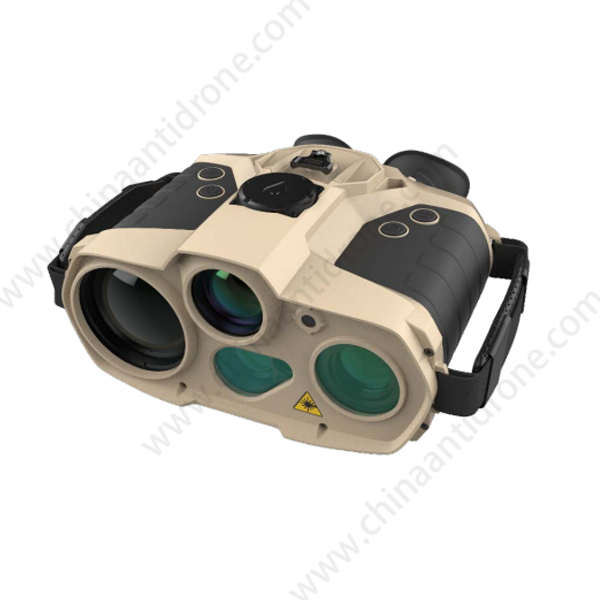

TOM-B Five Optical Channels Multi-function Binoculars
The Five Optical Channels Multi-function Binoculars (Tom-B) represent a cutting-edge integration of advanced optical technologies in a compact, portable observation device. This sophisticated system combines five distinct optical channels—infrared thermal imaging, low-light imaging, visible light imaging, laser rangefinder, and laser pointer—along with integrated location services, digital magnetic compass, and image/video recording capabilities. Designed for 24/7 operation in the most challenging environments, this multi-functional binocular provides exceptional observation capabilities both day and night, making it an indispensable tool for security professionals, law enforcement, military personnel, and outdoor enthusiasts. The system's ergonomic design ensures comfortable extended use, while its rugged construction meets stringent environmental standards for operation in extreme temperatures, wet conditions, and harsh handling. With intuitive controls and multiple connectivity options, the Five Optical Channels Multi-function Binoculars deliver superior performance and versatility for a wide range of observation and surveillance applications.
2, Specification
|
Infrared Thermal Imaging
|
Resolution
|
640×512, 12 μm
|
|
Spectral Band
|
8~14 μm
|
|
|
Field of View
|
6.1°×4.8°
|
|
|
Low-Light Imaging
|
Resolution
|
750×600
|
|
Low Illumination Capability
|
0.001 lux
|
|
|
Field of View
|
6.8°×5.5°
|
|
|
Visible Light Imaging
|
Resolution
|
4.6 megapixels
|
|
Field of View
|
4.6°×3.7°
|
|
|
Laser Rangefinder
|
Wavelength
|
1535 nm
|
|
Maximum Range
|
≥6 km
|
|
|
Minimum Range
|
≤50 m
|
|
|
Measurement Accuracy
|
2 m
|
|
|
Location Module
|
Positioning System
|
BD, GPS dual-mode
|
|
Horizontal Accuracy (CEP)
|
5 m
|
|
|
Elevation Accuracy (PE)
|
10 m
|
|
|
Digital Magnetic Compass
|
Azimuth Range
|
0~360°
|
|
Azimuth Accuracy
|
0.5°
|
|
|
Pitch Angle Range
|
-90°~+90°
|
|
|
Pitch Angle Accuracy
|
0.4°
|
|
|
Inclination Angle Range
|
-180°~+180°
|
|
|
Inclination Angle Accuracy
|
0.5°
|
|
|
Laser Pointer
|
Wavelength
|
830 nm
|
|
Power Output
|
5 mW, Class IIIA
|
|
|
Display System
|
Resolution
|
1280×1024
|
|
Viewing
|
OLED display
|
|
|
Storage & Memory
|
Internal Storage
|
64GB
|
|
Optical Specifications
|
Ocular Diopter Adjustment
|
-4~+4
|
|
Physical Specifications
|
Weight
|
2.1 kg
|
|
Battery Configuration
|
6×18650 batteries (3.7V, 3000mAh)
|
|
|
Operating Time
|
≥8 hours
|
|
|
Environmental Performance
|
Operating Temperature
|
-40°C~+55°C
|
|
Storage Temperature
|
-55°C~+70°C
|
|
|
Waterproof Rating
|
IP67
|
|
|
Connectivity
|
Interfaces
|
HDMI, USB, PAL, RS232, WiFi
|
|
Wireless Transmission
|
WiFi enabled
|
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
