Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use

Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use
Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use
Basic Information
Place of Origin: China
Brand Name: MYT
Certification: CNAS、CMA、CAL、ILAC-MRA
Model Number: TOM-B
Document: Product Brochure PDF
Minimum Order Quantity: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 10 work days
Payment Terms: L/C,T/T
Supply Ability: 1000units per month
Get Best Price Chat Now
Storage: 64G Ocular Lens Diopter: -4~+4
Weight: 2.1 Kg Operating Time: ≥8 H
Operating Temperature: -40°C~+55°C Waterproof Grade: IP67
Storage Temperature: -55°C~+70°C Wireless Transmission: WIFI
Highlight:

thermal imaging binoculars for professionals

,

multi-function binoculars with laser rangefinder

,

low-light capability binoculars for drone detection

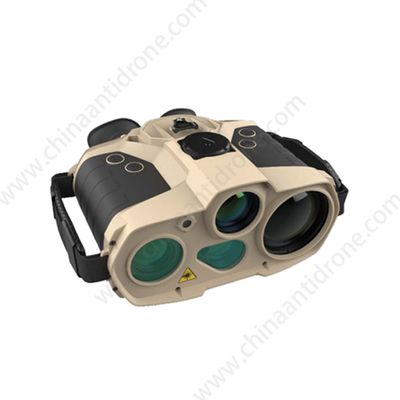

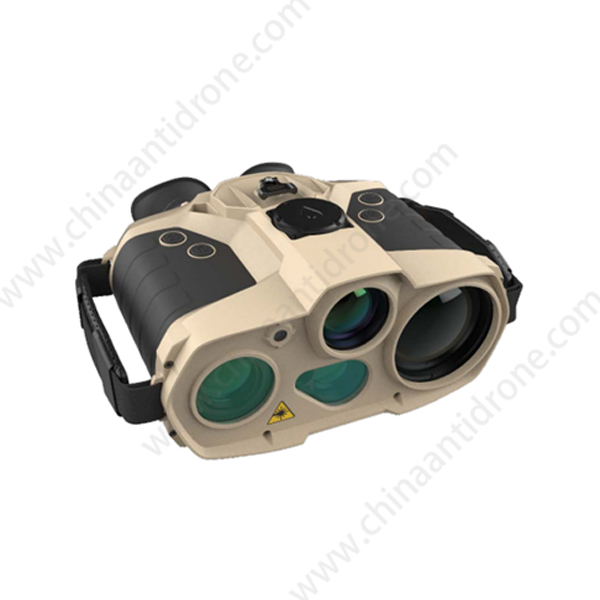

TOM-B Five Optical Channels Multi-function Binoculars


1, Product Overview
  The Five Optical Channels Multi-function Binoculars (Tom-B) represent a cutting-edge integration of advanced optical technologies within a compact, portable observation device. This sophisticated system seamlessly incorporates five distinct optical channels—infrared thermal imaging, low-light imaging, visible light imaging, laser rangefinder, and laser pointer—complemented by integrated location services, digital magnetic compass, and comprehensive image/video recording capabilities.​
  Engineered for continuous operation in the most demanding environments, this multi-functional binocular delivers exceptional observation performance both day and night, making it an indispensable tool for security professionals, law enforcement personnel, military operators, and outdoor enthusiasts alike.​
  Featuring an ergonomic design optimized for extended comfortable use, the system's rugged construction meets stringent environmental standards, ensuring reliable operation across extreme temperature ranges, wet conditions, and harsh handling scenarios.​
  Equipped with intuitive controls and versatile connectivity options, the Five Optical Channels Multi-function Binoculars provide superior performance and unmatched versatility for a wide spectrum of observation, surveillance, and reconnaissance applications.

2, Specification

Infrared Thermal Imaging
Resolution
640×512, 12 μm
Spectral Band
8~14 μm
Field of View
6.1°×4.8°
Low-Light Imaging
Resolution
750×600
Low Illumination Capability
0.001 lux
Field of View
6.8°×5.5°
Visible Light Imaging
Resolution
4.6 megapixels
Field of View
4.6°×3.7°
Laser Rangefinder
Wavelength
1535 nm
Maximum Range
≥6 km
Minimum Range
≤50 m
Measurement Accuracy
2 m
Location Module
Positioning System
BD, GPS dual-mode
Horizontal Accuracy (CEP)
5 m
Elevation Accuracy (PE)
10 m
Digital Magnetic Compass
Azimuth Range
0~360°
Azimuth Accuracy
0.5°
Pitch Angle Range
-90°~+90°
Pitch Angle Accuracy
0.4°
Inclination Angle Range
-180°~+180°
Inclination Angle Accuracy
0.5°
Laser Pointer
Wavelength
830 nm
Power Output
5 mW, Class IIIA
Display System
Resolution
1280×1024
Viewing
OLED display
Storage & Memory
Internal Storage
64GB
Optical Specifications
Ocular Diopter Adjustment
-4~+4
Physical Specifications
Weight
2.1 kg
Battery Configuration
6×18650 batteries (3.7V, 3000mAh)
Operating Time
≥8 hours
Environmental Performance
Operating Temperature
-40°C~+55°C
Storage Temperature
-55°C~+70°C
Waterproof Rating
IP67
Connectivity
Interfaces
HDMI, USB, PAL, RS232, WiFi
Wireless Transmission
WiFi enabled
3, Features
  The Five Optical Channels Multi-function Binoculars (Tom-B) represent the pinnacle of integrated optical observation technology, seamlessly combining five advanced optical channels within a single, portable unit.​
The infrared thermal imaging channel delivers exceptional night vision capabilities with 640×512 resolution and 12μm pixel pitch, operating in the 8-14μm spectral band to detect heat signatures even in complete darkness.​
  Complementing this, the low-light imaging channel enables clear visualization in near-dark conditions with 750×600 resolution and 0.001 lux sensitivity, ensuring reliable performance during twilight hours and low-visibility environments.​
  The high-resolution visible light channel captures sharp 4.6-megapixel images during daytime operations, providing exceptional detail for identification and documentation requirements.​
  Integrated laser rangefinder technology offers precise distance measurement up to 6 kilometers with 2-meter accuracy, while the laser pointer facilitates target designation and coordination.​
  The dual-mode BD/GPS location module provides accurate positioning information with 5-meter horizontal accuracy, enhanced by a high-precision digital magnetic compass that measures azimuth, pitch, and inclination angles with sub-degree accuracy. This comprehensive navigation system enables precise target location and tracking in any environment.​
  The system features a high-resolution 1280×1024 OLED display presenting clear imagery across all channels, with intuitive controls for seamless mode switching and function adjustment. Built-in 64GB storage capacity enables extensive image and video recording, while WiFi connectivity allows wireless data transmission to external devices for real-time sharing and analysis.​
  With a rugged design weighing just 2.1 kilograms and operating for over 8 hours on six 18650 batteries, the binoculars are ideally suited for extended field operations.​
  Engineered to withstand the most demanding conditions, the Five Optical Channels Multi-function Binoculars meet IP67 waterproof standards and operate within a temperature range of -40°C to +55°C. Multiple image processing modes, including various thermal palettes and fusion options, enhance target detection and recognition in diverse environmental conditions.​
  The device's ergonomic design ensures comfortable handling during prolonged use, while comprehensive connectivity options facilitate integration with other systems and equipment. Whether employed for security surveillance, wildlife observation, search and rescue operations, or tactical applications, this multi-functional binocular delivers unparalleled performance and versatility across all lighting and environmental conditions.
Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 0

4, Application Scenarios

Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 1


5, Certification Certificate

Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 2


6, Company profile

  Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.

  With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

 The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.

Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 3Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 4Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 5Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 6


7, Customer Service

1). We offer 24 hours service after sales

2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.

3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.

Five Optical Channels Multi-function Binoculars Feature Thermal Imaging Low-light Capability And Laser Rangefinder For Professional Use 7
