| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DR100-AB（8） |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Spectrum: | 300MHz~ 6GHz | View Angle: | Horizontal: 0° To 360°, Vertical: -90° To 90° |
|---|---|---|---|
| Detection Radius: | 5km (may Vary Depending On The Environment And Model) | FPV Simulation Transmission Detection Range: | ≥1.5km (real-time Video Available) |
| Interference Frequency Band: | 868M/915M/1.2GHz/1.4ghz/1.5GHz/2.4GHz/5.2GHz/5.8GHz | Response Time: | ≤3s |
| Power Consumption: | ≤ 30 00W | Working Temperature: | （-20~+60）±2℃ |
| Storage Temperature: | （-60~+85）±2℃ | Weight Of Equipment: | 49.75kg |
| Highlight: | carborne UAV detection system,drone detector defense equipment,vehicle-mounted UAV detection device |
||

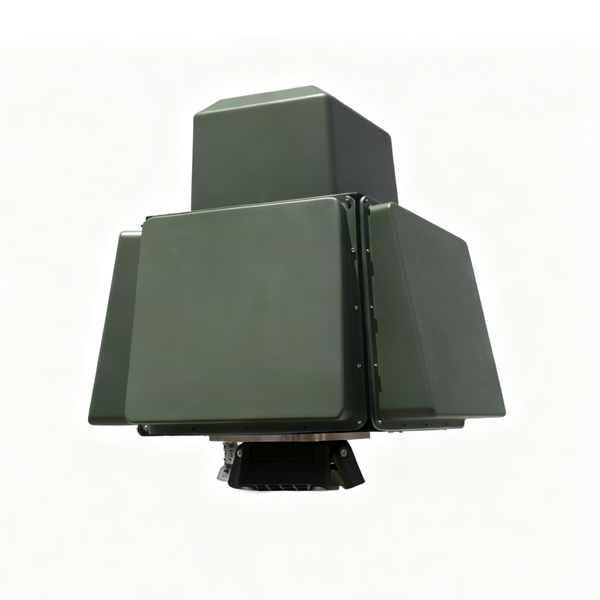

DR100-AB(8) Carborne UAV Detection and Defense Equipment
2, Specification
|
name |
performance index |
|
Detection Mode |
Passive detection: does not actively transmit wireless signals during detection |
|
Spectrum |
3 00MHz~ 6GHz |
|
View Angle |
Horizontal: 0° to 360°, vertical: -90° to 90° |
|
Survey height |
The drone can detect 0 to 1200m |
|
Detection Radius |
5km (may vary depending on the environment and model) |
|
FPV Simulated Video Transmission Detection |
Full-band scanning and display from 500MHz to 6GHz |
|
FPV simulation transmission detection range |
≥1.5km (real-time video available) |
|
discovery time |
The time from launch to detection of the drone should be less than or equal to 5s |
|
Detect power consumption |
Detect power consumption ≤ 10 0W |
|
interference distance |
3 km (depending on the environment and model) |
|
Interference Angle Selection |
Control independent switches from multiple angles |
|
interference range |
Horizontal: 360°; Pitch: -90° to +90° |
|
Interference frequency band |
868M/915M/1.2GHz/1.4ghz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
|
service frequency |
Channel 1: (840±15) MHz to (930±15) MHz; Channel 2: (1535±15) MHz to (1635±15) MHz Channel 3: (2380±15) MHz to (2520±15) MHz Channel 4: (5130±15) MHz to (5370±15) MHz Channel 5: (5725±15) MHz to (5885±15) MHz; Channel 6: (1080±15) MHz to (1200±15) MHz Channel 7: (1350±15) MHz to (1450±15) MHz |
|
transmitting power |
Channel 1: (47±1) dBm; Channel 2: (44±1) dBm; Channel 3: (47±1) dBm; Channel 4: (44±1) dBm; Channel 5: (47±1) dBm; Channel 6: (44±1) dBm; Channel 7: (44±1) dBm; |
|
Response time |
≤3s |
|
Compression ratio |
In the absence of significant electromagnetic interference, the maximum ratio of the distance between the UAV and the system to the distance between the UAV and the remote control shall not be less than 1 5:1. |
|
Power consumption |
≤ 30 00W |
|
Mobile Power |
The portable power supply ensures continuous operation for at least 3 0 minutes when the system operates in full-frequency band transmission mode. |
|
Power supply mode |
Supports mains AC 220V power supply or a portable power bank |
|
high speed operation |
The ability to detect and counter drones at high speed |
|
Map location |
The system has an electronic map that displays the systems geographical location in real time. |
|
Alerts |
After detecting the UAV target, it can give an alarm by means of information, sound and light |
|
working temperature |
(-20~+60)±2℃ |
|
storage temperature |
(-60~+85)±2℃ |
|
weight of equipment |
49.75kg |
By suppressing the signal of remote control, data transmission and navigation of the UAV, the UAV can be out of control and forced to land.
360° all-frequency detection and strike: covers mainstream devices, operates autonomously, and detects and neutralizes threats from all angles
Structured design: Quick assembly/disassembly of components, supporting multiple working modes such as vehicle-mounted and fixed
Strong stability: adopts a low wind resistance design, can maintain the stability and safety of the equipment at high speed
Blacklist and whitelist: Mark them with one click.
FPV video capture: Detects and captures analog video transmission between 500-6G.
Simulated video transmission interference capability: Equipped with simulated video transmission interference capability to effectively prevent drones using simulated video transmission from intruding
High scalability: Flexible deployment of various vehicle models, supporting both standalone operation and multi-device networking
Military quality: no fear of high and low temperature, strong environmental adaptability
Customized services: Tailor intelligent solutions to meet specific needs, providing customers with enhanced defense capabilities
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Customer Service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
