| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-BX10 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | X | Range: | 20km |
|---|---|---|---|
| Azimuth: | 360° | Tracing Velocity : | 1m/S～150m/S |
| Ingress Protection: | IP66 (Host IP67) | Operating Temperature: | -40℃～+55℃ |
| Highlight: | low altitude surveillance radar system,low altitude target monitoring radar,security radar for low altitude |
||

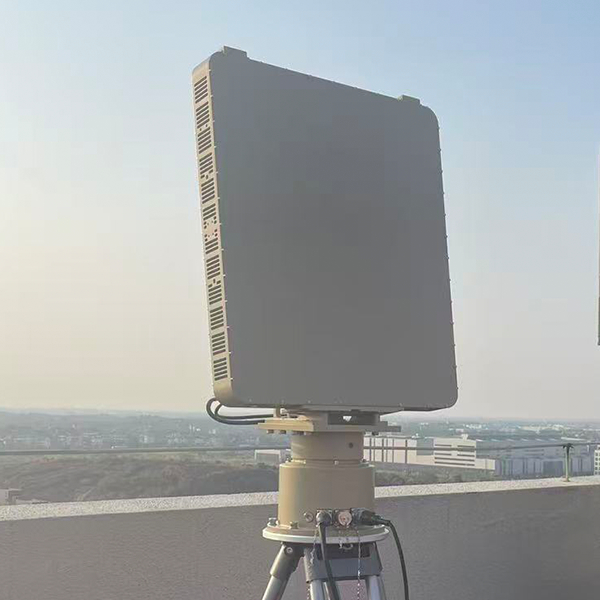

DDR-BX10 low-altitude surveillance radar
The DDR-BX10 low-altitude surveillance radar is a high-performance low-altitude target monitoring system. Boasting an advanced technological architecture and exceptional performance, it demonstrates outstanding capabilities in the realm of low-altitude detection. This radar can accurately identify and continuously track various low-altitude targets, including aircraft, unmanned aerial vehicles, birds, cruise missiles, etc. Meanwhile, it also takes into consideration the monitoring of ground and surface targets, thereby providing crucial data for low-altitude situational awareness.
Deeply integrated with DBF technology, this radar features a low equivalent isotropic radiated power, enabling high measurement accuracy and robust multi-target processing capabilities. Thanks to its excellent anti-interference performance, it can maintain stable and reliable operation even in complex electromagnetic and meteorological conditions.
Leveraging these advantages, these radars are extensively applied in multiple domains, such as air traffic control, key ground facility protection, the low-altitude economy, airport bird detection, battlefield "anti-UAV" operations, border defense, and coastal defense. It serves as a key technological device for safeguarding national airspace security and maintaining low-altitude order.
2, Specification
|
No. Number |
Items |
Index |
|||
|
Parameter |
|||||
|
1 |
Operating Frequency Band |
X |
|||
|
2 |
Space Coverage |
Pitch |
-5°～60° |
||
|
Azimuth |
360° |
||||
|
Range |
20km |
||||
|
Blind Spots |
50m |
||||
|
Height |
3000m |
||||
|
3 |
Detection Power |
Small Rotary-Wing UAVS (RCS=0.01 M²) (RCS=0.01m2) |
≥10km |
||
|
Medium-Sized Fixed-Wing UAVS (RCS=1 M²) |
≥20km |
||||
|
Personnel |
≥15km |
||||
|
Helicopters, Vehicles |
≥20km |
||||
|
4 |
Measurement Accuracy |
Distance |
≤5m(RMS) |
||
|
Azimuth Angle |
≤0.3°(RMS) |
||||
|
Pitch Angle |
≤0.3°(RMS) |
||||
|
5 |
Antenna Speed |
20rpm(3s) |
|||
|
30rpm(2s) |
|||||
|
60rpm (1s) (Upgradable) |
|||||
|
6 |
Max Tracked Targets |
≥ 500 |
|||
|
7 |
Tracing Velocity |
1m/S～150m/S |
|||
|
Power & Interfaces |
|||||
|
1 |
Power Supply |
DC36～52V (With AC220V-DC48V Adapter) |
|||
|
2 |
Communication |
Gigabit Ethernet Aviation Plug |
|||
|
3 |
Power Consumption |
≤400W |
|||
|
Environmental Suitability |
|||||
|
1 |
Operating Temperature |
-40℃～+55℃ |
|||
|
2 |
Operating Humidity |
≯90% |
|||
|
3 |
Ingress Protection |
IP66 (Host IP67) |
|||
|
Weight Dimensions |
|||||
|
1 |
Weight (Kg) |
Monomer |
Host |
25 |
|
|
Turntable |
25 |
||||
|
Tripod |
20 |
||||
|
Packing |
Host |
45 |
|||
|
Turntable |
50 (With accessories) |
||||
|
Tripod |
23 |
||||
|
2 |
Dimensions (mm) |
Monomer |
Host |
815*650*93 |
|
|
Turntable |
600*500*450 |
||||
|
Tripod |
1100*450*450 |
||||
|
Packing |
Host |
970*780*250 |
|||
|
Turntable |
600*520*470 |
||||
|
Tripod |
1100*450*450 |
||||
The DDR-YK8 radar integrates multiple advanced features to deliver exceptional performance in low-altitude target detection and tracking. It achieves wide 360° azimuth and 65° elevation coverage through azimuth mechanical scanning and elevation DBF technology, offering excellent cost-effectiveness. With DBF technology, it maintains high refresh rates (1s/2s/3s) and tracks targets moving up to 150m/s with great efficiency.
Advanced adaptive clutter suppression eliminates interference in real-time, ensuring high detection accuracy and low false alarm rates across complex scenarios. The continuous wave system design enables low power consumption, compact size, and lightweight portability, supporting single-person deployment and rapid setup with an intuitive user interface.
Its uninterrupted signal transmission eliminates short-range blind spots while simultaneously tracking over 500 target batches with high precision. The low peak power output provides strong concealment and low interception probability, making it suitable for complex electromagnetic environments.
Supporting 1Hz spatial scanning rate combined with advanced tracking algorithms, it achieves real-time and accurate tracking of highly maneuverable targets. Finally, its friendly data and user interfaces facilitate seamless integration with other sensing devices to construct comprehensive "anti-drone" defense systems.
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Customer Service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
