| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-BX10 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | X | Range: | 20km |
|---|---|---|---|
| Azimuth: | 360° | Tracing Velocity : | 1m/S～150m/S |
| Ingress Protection: | IP66 (Host IP67) | Operating Temperature: | -40℃～+55℃ |
| Highlight: | low altitude security radar with enhanced monitoring,advanced security radar for situational awareness,accurate low altitude radar system |
||

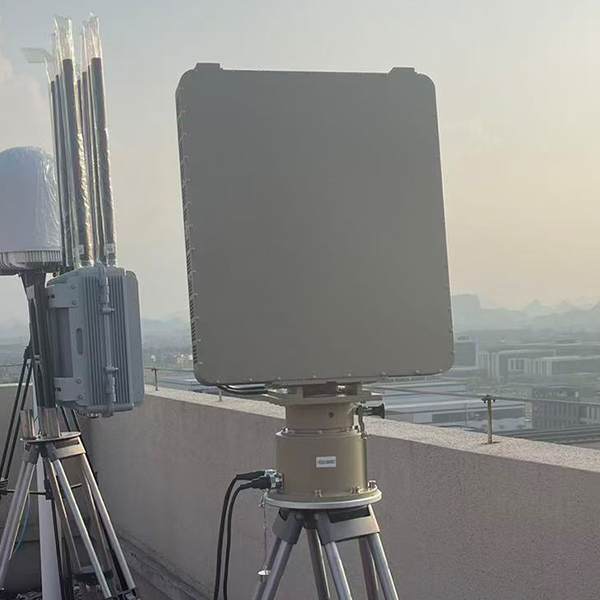

DDR-BX10 low-altitude surveillance radar
The DDR-BX10 low-altitude surveillance radar is a high-performance low-altitude target monitoring system. With an advanced tech architecture and great performance, it excels in low-altitude detection. It can accurately identify and track various low-altitude targets like aircraft, UAVs, birds, cruise missiles. It also monitors ground and surface targets for low-altitude situational awareness.
Integrated with DBF technology, it has a low equivalent isotropic radiated power, high measurement accuracy, and strong multi-target processing. Its good anti-interference allows stable operation in complex conditions.
These radars are widely used in air traffic control, facility protection, the low-altitude economy, airport bird detection, "anti-UAV" operations, border and coastal defense. They're key for national airspace security and low-altitude order.
2, Specification
|
No. Number |
Items |
Index |
|||
|
Parameter |
|||||
|
1 |
Operating Frequency Band |
X |
|||
|
2 |
Space Coverage |
Pitch |
-5°～60° |
||
|
Azimuth |
360° |
||||
|
Range |
20km |
||||
|
Blind Spots |
50m |
||||
|
Height |
3000m |
||||
|
3 |
Detection Power |
Small Rotary-Wing UAVS (RCS=0.01 M²) (RCS=0.01m2) |
≥10km |
||
|
Medium-Sized Fixed-Wing UAVS (RCS=1 M²) |
≥20km |
||||
|
Personnel |
≥15km |
||||
|
Helicopters, Vehicles |
≥20km |
||||
|
4 |
Measurement Accuracy |
Distance |
≤5m(RMS) |
||
|
Azimuth Angle |
≤0.3°(RMS) |
||||
|
Pitch Angle |
≤0.3°(RMS) |
||||
|
5 |
Antenna Speed |
20rpm(3s) |
|||
|
30rpm(2s) |
|||||
|
60rpm (1s) (Upgradable) |
|||||
|
6 |
Max Tracked Targets |
≥ 500 |
|||
|
7 |
Tracing Velocity |
1m/S～150m/S |
|||
|
Power & Interfaces |
|||||
|
1 |
Power Supply |
DC36～52V (With AC220V-DC48V Adapter) |
|||
|
2 |
Communication |
Gigabit Ethernet Aviation Plug |
|||
|
3 |
Power Consumption |
≤400W |
|||
|
Environmental Suitability |
|||||
|
1 |
Operating Temperature |
-40℃～+55℃ |
|||
|
2 |
Operating Humidity |
≯90% |
|||
|
3 |
Ingress Protection |
IP66 (Host IP67) |
|||
|
Weight Dimensions |
|||||
|
1 |
Weight (Kg) |
Monomer |
Host |
25 |
|
|
Turntable |
25 |
||||
|
Tripod |
20 |
||||
|
Packing |
Host |
45 |
|||
|
Turntable |
50 (With accessories) |
||||
|
Tripod |
23 |
||||
|
2 |
Dimensions (mm) |
Monomer |
Host |
815*650*93 |
|
|
Turntable |
600*500*450 |
||||
|
Tripod |
1100*450*450 |
||||
|
Packing |
Host |
970*780*250 |
|||
|
Turntable |
600*520*470 |
||||
|
Tripod |
1100*450*450 |
||||
The DDR - YK8 radar incorporates multiple advanced features, enabling it to exhibit outstanding performance in the detection and tracking of low - altitude targets. By means of azimuth mechanical scanning and elevation Digital Beamforming (DBF) technology, it attains a wide coverage of 360° in azimuth and 65° in elevation, thereby presenting remarkable cost - effectiveness. Leveraging DBF technology, it sustains high refresh rates (1s/2s/3s) and efficiently tracks targets with a maximum speed of 150m/s.
The advanced adaptive clutter suppression function effectively eliminates interference in real - time. This ensures high detection accuracy and low false alarm rates across various complex scenarios. The continuous wave system design results in low power consumption, a compact size, and lightweight portability. It allows for single - person deployment and rapid setup, facilitated by an intuitive user interface.
Its continuous signal transmission eradicates short - range blind spots while precisely tracking over 500 target batches simultaneously. The low peak power output offers strong concealment and a low interception probability, rendering it suitable for complex electromagnetic environments.
With support for a 1Hz spatial scanning rate in conjunction with advanced tracking algorithms, it can accurately and in real - time track highly maneuverable targets. Finally, its user - friendly data and interface designs facilitate seamless integration with other sensing devices, thus enabling the construction of comprehensive "anti - drone" defense systems.
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
