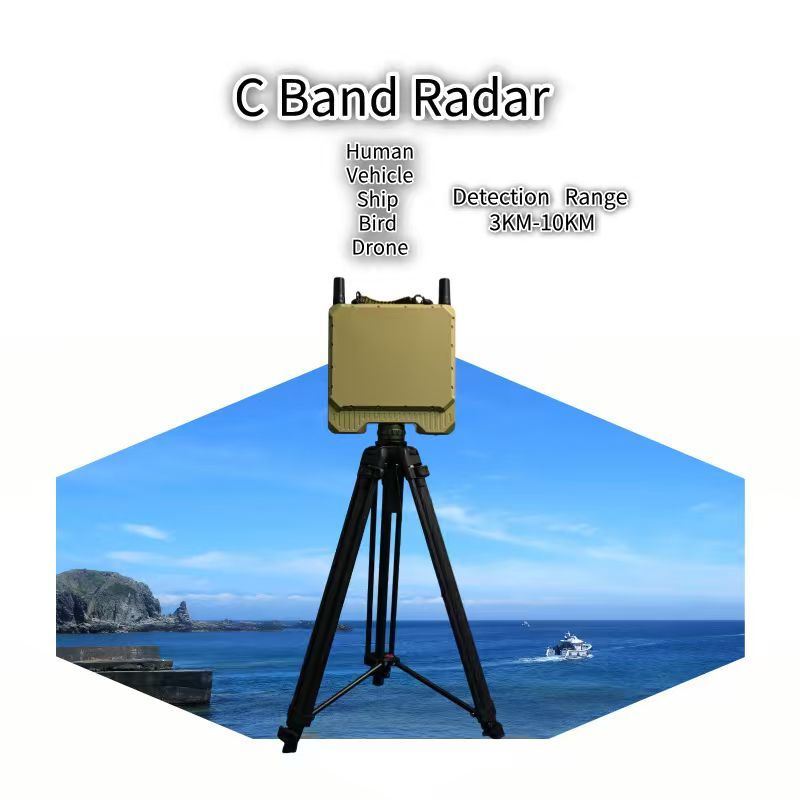

DDR-LC2 C Band radar
The DDR-LC2 is primarily composed of one radar array, one mechanical turntable, and one power adapter. It is employed for the detection, surveillance, and target indication of micro/small civilian drones in key areas including prisons, exhibitions, and military bases. It can precisely provide target trajectory information such as direction, distance, altitude, and speed.
2, Specification
|
Working system |
Phased array system (azimuth scanning+elevation scanning)/pulse Doppler |
|
Working band |
C Band |
|
Range of Radar |
2. 1km |
|
Effective detection range |
100m～1.5km(UAV; Drone) |
|
Azimuth coverage |
360° |
|
Elevation coverage |
≥30° |
|
Detection speed |
1.8km/h～108km/h |
|
Azimuth accuracy |
≤1.0 ° |
|
Pitch accuracy |
≤1.0 ° |
|
Distance accuracy |
≤10m |
|
Data rate |
≥0.2Hz |
|
Data interface |
RJ45/1 1ch Ethernet 10/100M port |
|
Input power |
≤100W(power dissition) AC200-AC240(Input power) |
|
Working temperature |
-40℃~ +55℃ |
|
Weight |
≤15kg |
Omni-directional Detection: The system enables 360° omni-directional detection, facilitating real-time tracking of targets and simultaneously outputting the three coordinate information of the targets.
Strong Environmental Adaptability: It has the capacity to operate continuously around the clock (24/7) and can adapt to harsh environmental conditions including night, rain, snow, haze, and dust.
Multi-object Detection: Capable of simultaneously monitoring up to hundreds of batches of targets, it features easy setup and high flexibility.
DBF Technology: The DBF technology enhances the anti-interference ability through the transmission of multi-beam technology.
Omni-directional Detection: The system enables 360° omni-directional detection, facilitating real-time tracking of targets and simultaneously outputting the three coordinate information of the targets.
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
