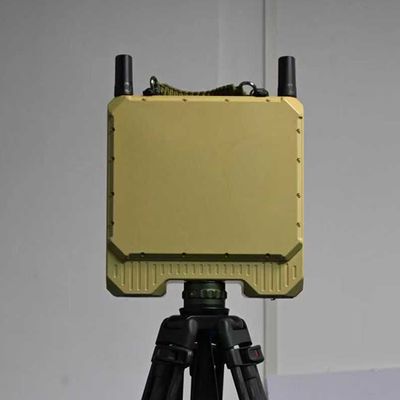

DDR-LC2 C Band radar
The DDR - LC2 is principally composed of three key components: a single radar array, a mechanical turntable, and a power adapter. The radar array functions as the core sensor, tasked with emitting and receiving electromagnetic waves for the detection of objects within the airspace. The mechanical turntable enables the rotation of the radar array, thereby expanding its field of view. The power adapter ensures a stable power supply to enable the effective operation of the device.
The DDR - LC2 device is specifically employed for critical tasks, including the detection, surveillance, and target indication of micro - sized and small civilian drones. It is deployed in key areas, such as prisons, where preventing unauthorized drone access is of utmost importance for maintaining security and privacy; exhibitions, where large crowds assemble and the presence of drones may pose risks to public safety and the integrity of the event; and military bases, where strict airspace control is necessary to safeguard sensitive information and military assets.
One of its notable features is its capacity to accurately provide detailed target trajectory information. This encompasses aspects such as the flight direction of the drone, enabling operators to anticipate its movement path; the distance between the DDR - LC2 and the drone, which is crucial for assessing the threat level; the altitude at which the drone is operating, as different altitudes may have distinct implications for its intended purpose; and the speed of the drone, which aids in predicting its arrival time at specific locations.
2, Specification
|
Working system |
Phased array system (azimuth scanning+elevation scanning)/pulse Doppler |
|
Working band |
C Band |
|
Range of Radar |
2. 1km |
|
Effective detection range |
100m～1.5km(UAV; Drone) |
|
Azimuth coverage |
360° |
|
Elevation coverage |
≥30° |
|
Detection speed |
1.8km/h～108km/h |
|
Azimuth accuracy |
≤1.0 ° |
|
Pitch accuracy |
≤1.0 ° |
|
Distance accuracy |
≤10m |
|
Data rate |
≥0.2Hz |
|
Data interface |
RJ45/1 1ch Ethernet 10/100M port |
|
Input power |
≤100W(power dissition) AC200-AC240(Input power) |
|
Working temperature |
-40℃~ +55℃ |
|
Weight |
≤15kg |
The DDR - YK8 radar system is characterized by 360° omni - directional detection capabilities. It enables real - time target tracking and simultaneously outputs precise three - coordinate information. Boasting strong environmental adaptability, it can operate continuously around the clock (24/7) under harsh conditions, such as at night, in rain, snow, haze, and dusty environments.
This system supports multi - object detection. It has the capacity to monitor hundreds of target batches simultaneously. Its setup is straightforward, and it offers high flexibility. By leveraging advanced DBF (Digital Beam Forming) technology, it enhances its anti - interference capabilities through multi - beam transmission technology. This ensures reliable performance even in complex electromagnetic environments.
