| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-LC2 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | C | Range: | 2.1km |
|---|---|---|---|
| Effective Detection Range: | 100m～1.5km（UAV; Drone） | Azimuth Coverage : | 360° |
| Working Temperature: | -40℃~ +55℃ | Weight: | ≤15kg |
| Highlight: | low altitude security radar for drones,drone detection surveillance radar,security radar with drone detection |
||

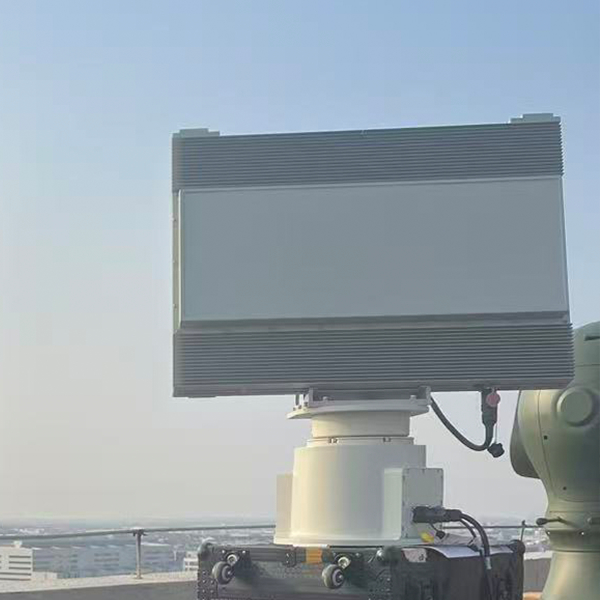

DDR-LC2 C Band radar
The DDR - LC2 is principally composed of three key components: a radar array, which functions as the core sensing element; a mechanical turntable, which enables the device to rotate and scan in diverse directions; and a power adapter, which is responsible for supplying the requisite electrical energy.
This device is specifically employed for multiple vital functions. It is utilized for the detection of micro/small civilian drones, which are becoming increasingly prevalent in various airspaces. Surveillance is another critical function, closely monitoring the activities of these drones. Moreover, it provides target indication, precisely identifying the presence of potential drone threats.
The areas where the DDR - LC2 is deployed are of great significance. These include prisons, where preventing unauthorized drone access is essential for maintaining security and preventing potential smuggling or surveillance activities. Exhibitions, which often showcase valuable items and attract large crowds, also necessitate protection from any unwanted drone presence. Military bases, being highly sensitive areas, rely on the DDR - LC2 to safeguard against potential drone - related espionage or attacks.
One of the most notable features of the DDR - LC2 is its capacity to accurately provide target trajectory information. This encompasses details such as the direction of the drone's flight, its distance from the device, its altitude above the ground, and the speed at which it is moving. All of these data points are crucial for a comprehensive understanding of the drone's movement and for implementing appropriate countermeasures.
2, Specification
|
Working system |
Phased array system (azimuth scanning+elevation scanning)/pulse Doppler |
|
Working band |
C Band |
|
Range of Radar |
2. 1km |
|
Effective detection range |
100m～1.5km(UAV; Drone) |
|
Azimuth coverage |
360° |
|
Elevation coverage |
≥30° |
|
Detection speed |
1.8km/h～108km/h |
|
Azimuth accuracy |
≤1.0 ° |
|
Pitch accuracy |
≤1.0 ° |
|
Distance accuracy |
≤10m |
|
Data rate |
≥0.2Hz |
|
Data interface |
RJ45/1 1ch Ethernet 10/100M port |
|
Input power |
≤100W(power dissition) AC200-AC240(Input power) |
|
Working temperature |
-40℃~ +55℃ |
|
Weight |
≤15kg |
The product offers 360° omnidirectional detection, tracks targets in real - time and outputs their three - coordinate info. Its real - time tracking and data output are crucial for applications needing precise target location and movement monitoring.
It features strong environmental adaptability, operating 24/7 in harsh conditions like night, rain, snow, haze or dust, ensuring continuous service.
The system supports multi - object detection, monitoring up to hundreds of target batches simultaneously. It's user - friendly in setup, easily configurable and flexible.
It's equipped with DBF technology, enhancing anti - interference capabilities via multi - beam transmission. In complex electromagnetic environments, it filters out interference and maintains stable performance.
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Customer Service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
