| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-LX8 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | Ku | Speed Measurement Range: | 1~150m/s |
|---|---|---|---|
| Fade Zone: | ≤150m | Pan And Zoom Coverage: | 0~ 60° |
| Weight: | ≤86kg | Size (whole Unit): | ≤775mm×450mm×880mm (length×width×height) |
| Highlight: | low altitude security radar with digital signal processing,low altitude radar for comprehensive detection,digital signal processing security radar |
||
DDR-YK8

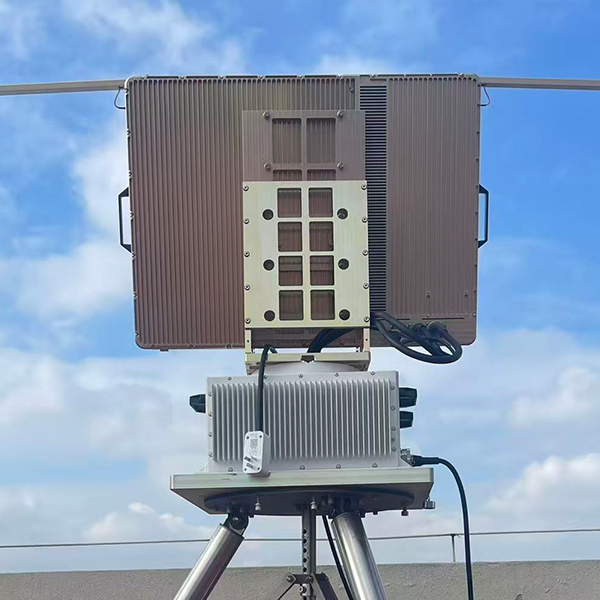

The DDR-YK8 radar is a three-coordinate radar featuring azimuth-beam scanning and elevation beamforming (DBF) within a pulse Doppler configuration. Its main purpose is to detect and locate low-altitude aircraft. This radar can accurately determine the spatial position of targets. When integrated with electro-optical systems, it can be cascaded with countermeasure systems, including jamming systems, laser weapons, and navigation spoofing devices.
2, Specification
|
1. Radar band |
||
|
Radio band |
Ku-band (15~17GHz) |
|
|
2.work pattern |
||
|
Air-to-air sweep-2s |
||
|
Detective Power |
Royal 2 |
6.5 km |
|
|
Spirit 4 |
8 km |
|
accuracy (RMS) |
position |
≤0.3° |
|
|
cabrage |
≤0.3° |
|
|
distance |
≤ 6 m |
|
Speed measurement range |
1~150m/s |
|
|
fade zone |
≤150m |
|
|
Pan and Zoom Coverage |
0~ 60° |
|
|
3. Dimensions, weight, and power consumption |
||
|
Size (whole unit) |
≤775mm×450mm×880mm (length×width×height) |
|
|
Weight (complete unit) |
≤ 86 kg |
|
|
power dissipation |
≤ 15 00W |
|
|
4. Environmental adaptability |
||
|
working temperature |
−40℃～+6 5℃ |
|
|
storage temperature |
−50℃～+65℃ |
|
|
levels of protection |
IP65 |
|
(1) It is capable of detecting and tracking various moving targets within the working space/area, and outputs multi-dimensional information such as the position, speed, and type of the target.
(2) It possesses the ability to classify and identify target types.
(3) It can operate in TWS (Track While Searching) and STT (Single Target Tracking) modes.
(4) It is equipped with automatic calibration capabilities (including positioning, orientation, and posture measurement, which requires an inclinometer).
(5) The sector is equipped with an electromagnetic silence function.
(6) It has the ability to operate in the face of interference, including active and passive interference.
(7) It features functions of equipment status self-check and health assessment. The output data includes: radar serial number; signal processing program version; core voltage and current of the signal processing board; differential information; wave control current and voltage; frequency synthesis version, operating mode, LO status, DDS frequency, DDS lock, ADC frequency; TR temperature, wave control temperature, servo temperature.
(8) It provides interpolation and prediction functions for reported trajectory data.
(9) It has remote upgrade capabilities.
(10) It has the function of saving target point traces, flight paths, and radar status data.
(11) It has the function of replaying the recorded point traces and flight path information.
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Customer Service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
