| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-LX8 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | Ku | Speed Measurement Range: | 1~150m/s |
|---|---|---|---|
| Fade Zone: | ≤150m | Pan And Zoom Coverage: | 0~ 60° |
| Weight: | ≤86kg | Size (whole Unit): | ≤775mm×450mm×880mm (length×width×height) |
| Highlight: | low altitude security radar system,three-coordinate aircraft detection radar,precise aircraft location radar |
||

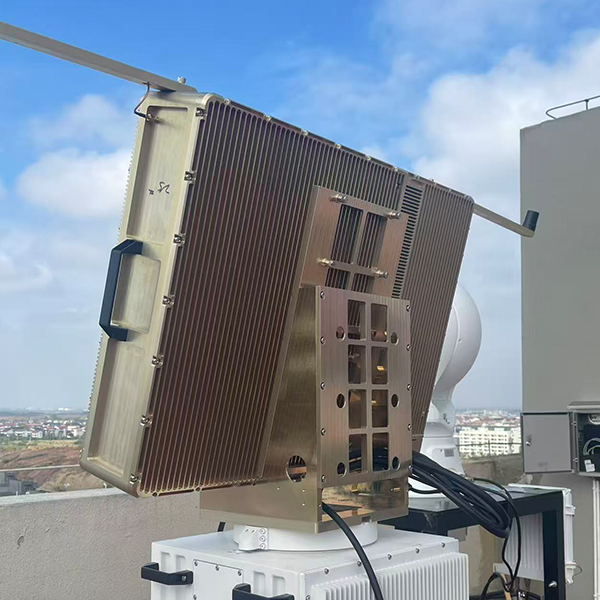

DDR-YK8
The DDR - YK8 radar is a highly advanced three - coordinate radar. It functions through a distinctive combination of azimuth - beam scanning and elevation beamforming (DBF) within a pulse Doppler configuration. This configuration has been meticulously designed to enhance its detection capabilities.
The primary and critical objective of the DDR - YK8 radar is to detect and accurately locate low - altitude aircraft. This holds great significance in modern air defense scenarios, as low - altitude aircraft can present a substantial threat owing to their capacity to fly beneath the radar's normal detection range.
One of the notable features of this radar is its proficiency in precisely determining the spatial position of targets. This high - precision positioning is essential for effectively tracking and engaging detected objects.
When the DDR - YK8 radar is integrated with electro - optical systems, it achieves a new level of functionality. It can then be seamlessly integrated with various countermeasure systems. These countermeasure systems encompass jamming systems, which are capable of disrupting the communication and guidance systems of enemy aircraft; laser weapons, renowned for their high - energy and rapid - fire capabilities to neutralize threats; and navigation spoofing devices, which can mislead the navigation systems of approaching aircraft, thus safeguarding the defended area.
2, Specification
|
1. Radar band |
||
|
Radio band |
Ku-band (15~17GHz) |
|
|
2.work pattern |
||
|
Air-to-air sweep-2s |
||
|
Detective Power |
Royal 2 |
6.5 km |
|
|
Spirit 4 |
8 km |
|
accuracy (RMS) |
position |
≤0.3° |
|
|
cabrage |
≤0.3° |
|
|
distance |
≤ 6 m |
|
Speed measurement range |
1~150m/s |
|
|
fade zone |
≤150m |
|
|
Pan and Zoom Coverage |
0~ 60° |
|
|
3. Dimensions, weight, and power consumption |
||
|
Size (whole unit) |
≤775mm×450mm×880mm (length×width×height) |
|
|
Weight (complete unit) |
≤ 86 kg |
|
|
power dissipation |
≤ 15 00W |
|
|
4. Environmental adaptability |
||
|
working temperature |
−40℃～+6 5℃ |
|
|
storage temperature |
−50℃～+65℃ |
|
|
levels of protection |
IP65 |
|
(1) This system proficiently detects and precisely tracks various moving targets in its working space, outputting multi - dimensional info like target position, speed, and type.
(2) It classifies and identifies target types based on characteristics such as radar cross - section, movement patterns, and electromagnetic signatures.
(3) The system has TWS and STT modes. TWS searches for new targets while tracking detected ones; STT focuses on a single target precisely.
(4) It has automatic calibration for positioning, orientation, and posture, crucial for accurate detection and tracking.
(5) The operating sector has an electromagnetic silence function to reduce detectability.
(6) The system can operate effectively in the presence of active and passive interference.
(7) It includes equipment status self - check and health assessment, monitoring various parameters like radar serial number, software version, etc.
(8) For reported trajectory data, it offers interpolation and prediction functions.
(9) It has remote upgrade capabilities for new software, algorithms, or configurations.
(10) It saves target point traces, flight paths, and radar status data.
(11) It allows re - playing of recorded point traces and flight path info for analysis, training, and debugging.
