| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DDR-LX8 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Operating Frequency Band: | Ku | Speed Measurement Range: | 1~150m/s |
|---|---|---|---|
| Fade Zone: | ≤150m | Pan And Zoom Coverage: | 0~ 60° |
| Weight: | ≤86kg | Size (whole Unit): | ≤775mm×450mm×880mm (length×width×height) |
| Highlight: | low altitude security radar with warranty,low altitude aircraft detection radar,aircraft positioning security radar system |
||

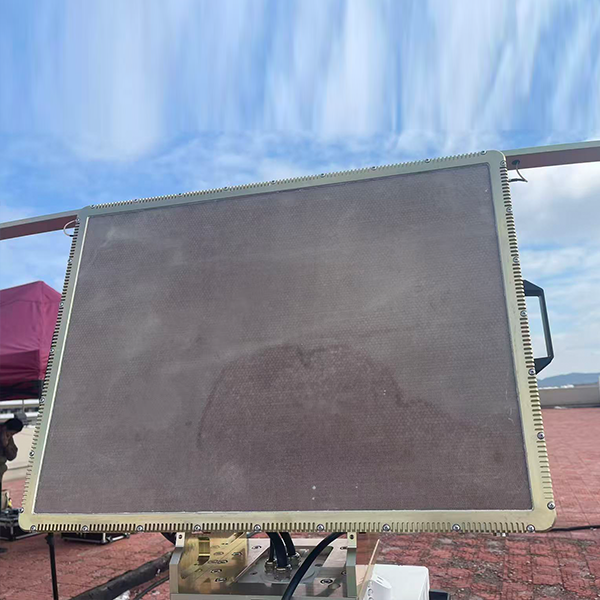

DDR-YK8
The DDR - YK8 radar represents a sophisticated three - coordinate radar. It incorporates azimuth - beam scanning and elevation beamforming (DBF) techniques, all set within a pulse Doppler configuration. This unique combination of features endows the radar with high - performance capabilities.
The primary and crucial function of the DDR - YK8 radar is to detect and precisely locate low - altitude aircraft. This is of great significance in various applications, such as air defense scenarios where early and accurate detection of low - flying threats is essential.
One of its remarkable attributes is the ability to accurately determine the spatial position of targets. This precise target positioning not only aids in target tracking but also enables effective decision - making in response to potential threats.
When integrated with electro - optical systems, the DDR - YK8 radar unlocks additional potential. It can be seamlessly cascaded with an array of countermeasure systems. These include jamming systems, which can disrupt the communication and targeting mechanisms of approaching aircraft; laser weapons, capable of delivering high - energy directed - energy attacks; and navigation spoofing devices, which can mislead the navigation systems of enemy aircraft, all contributing to enhanced overall defense capabilities.
2, Specification
|
1. Radar band |
||
|
Radio band |
Ku-band (15~17GHz) |
|
|
2.work pattern |
||
|
Air-to-air sweep-2s |
||
|
Detective Power |
Royal 2 |
6.5 km |
|
|
Spirit 4 |
8 km |
|
accuracy (RMS) |
position |
≤0.3° |
|
|
cabrage |
≤0.3° |
|
|
distance |
≤ 6 m |
|
Speed measurement range |
1~150m/s |
|
|
fade zone |
≤150m |
|
|
Pan and Zoom Coverage |
0~ 60° |
|
|
3. Dimensions, weight, and power consumption |
||
|
Size (whole unit) |
≤775mm×450mm×880mm (length×width×height) |
|
|
Weight (complete unit) |
≤ 86 kg |
|
|
power dissipation |
≤ 15 00W |
|
|
4. Environmental adaptability |
||
|
working temperature |
−40℃～+6 5℃ |
|
|
storage temperature |
−50℃～+65℃ |
|
|
levels of protection |
IP65 |
|
(1) It is capable of detecting and tracking diverse moving targets within the working space/area, and outputs multi-dimensional information including the position, speed, and type of the target.
(2) It has the capacity to classify and identify target types.
(3) It can operate in TWS (Track While Searching) and STT (Single Target Tracking) modes.
(4) It is equipped with automatic calibration capabilities (comprising positioning, orientation, and posture measurement, for which an inclinometer is required).
(5) The sector is equipped with an electromagnetic silence function.
(6) It has the ability to operate under interference conditions, including both active and passive interference.
(7) It features functions of equipment status self-check and health assessment. The output data includes: radar serial number; signal processing program version; core voltage and current of the signal processing board; differential information; wave control current and voltage; frequency synthesis version, operating mode, LO status, DDS frequency, DDS lock, ADC frequency; TR temperature, wave control temperature, servo temperature.
(8) It offers interpolation and prediction functions for reported trajectory data.
(9) It has remote upgrade capabilities.
(10) It has the function of saving point traces, paths, and radar data.
(11) It has the function of replaying the recorded point traces and path information.
