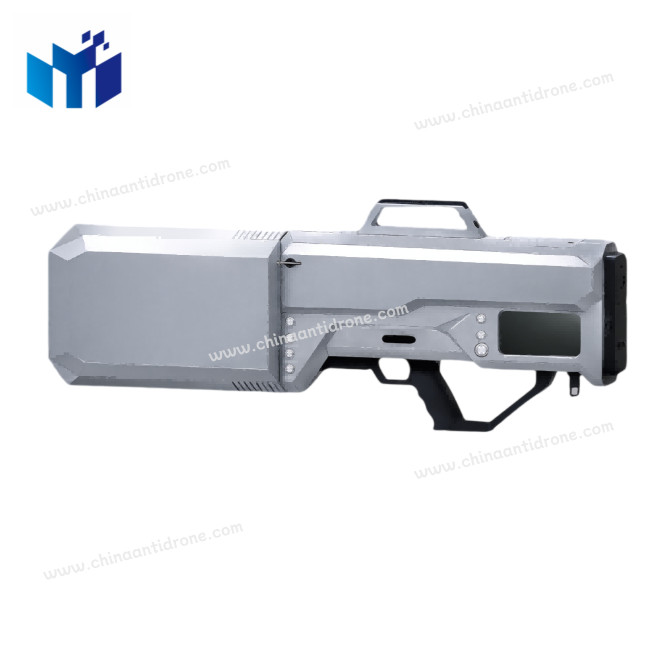

Man Portable 2km Anti Drone Uav Jammer / Handy Drone Detection And Jamming Drone Gun

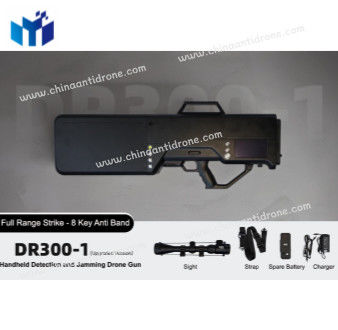

UAV Control System Man-portable defense system Hand held drone detection and jamming equipment DR300-1(8 Frequency Bands)

1, Product Introduction

  The handheld unmanned aerial vehicle (UAV) detection and countermeasure device is a comprehensive UAV single-operator countermeasure system that integrates detection warning, target tracking, interference and attack, and display and control networking functions. It operates on the principle of emitting high-intensity electromagnetic waves as a countermeasure, targeting the flight control systems and satellite positioning receivers of various small to medium-sized civilian drones. This professional control device renders them ineffective by disrupting normal communication signals.

   The device includes eight frequency bands for disrupting flight control and satellite positioning, covering frequencies for flight control interference as well as GPS/QZSS/GLONASS/Galileo and BeiDou II satellite positioning. Through proper operation, the controlled UAV can be made to lose control, return, be displaced, forced to land, or even crash.

  Designed for portability, the device features a robust body made from high-strength aviation aluminum CNC machining, highly integrated microwave circuitry, and a compact antenna design. It boasts a sturdy structure, effective heat dissipation, convenient portability, and long-range control capabilities. The device is powered by a rechargeable polymer battery pack, providing strong endurance. Utilizing a DSSS/FHSS dual-mode digital jammer, the device incorporates solid-state microwave integrated circuit (MMIC) technology and high-density surface-mount technology (SMT), ensuring high reliability and normal operation in harsh cold and hot environments.

  The DR300-1 has significantly enhanced its defense capabilities against the challenging FPV issues through extensive improvements in the DDS module and algorithm tuning. This has enabled the device to operate with low energy consumption, extended standby duration, and multi-frequency jamming coverage. Its effectiveness has been well-verified through extensive practical applications.

2,Functional highlight

  Designed for portability, the device features a robust body made from high-strength aviation aluminum CNC machining, highly integrated microwave circuitry, and a compact antenna design. It boasts a sturdy structure, effective heat dissipation, convenient portability, and long-range control capabilities. The device is powered by a rechargeable polymer battery pack, providing strong endurance.Utilizing a DSSS/FHSS dual-mode digital jammer, the device incorporates solid-state microwave integrated circuit (MMIC) technology and high-density surface-mount technology (SMT), ensuring high reliability and normal operation in harsh cold and hot environments.

1) Detection and Countermeasure Range

Detection range is far-reaching, ≥2km

2) Long Endurance

Equipped with a high-capacity battery, standby time exceeds 24 hours

3) Strong Expansion Capability

Equipped with a rail system for mounting various accessories (optical sights)

4) Comprehensive Coverage of Models

With multiple detection and countermeasure frequencies, it covers all types of models

5) Strong Environmental Adaptability

Capable of adapting to complex environments such as high temperatures, high cold, and high altitudes

6) Racing Drone Interference

Stands out in countering racing drones

7) Easy Operation

Large screen, simple operation, ready to use immediately, no external devices required

8) Reliable Military-Grade Quality
Aerospace aluminum body,operates in -40C to +60C,suitable for various environments

3, Specification

4, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.

5, Certification Certificate

6, Company profile

  Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.

  With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

  The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.

7, Partnership Portfolio

  Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

8,Paking and Delivery

  Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
