MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR100 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 2 units |
| Packaging Details: | 85cm*85cm*46.5cm，67.19kg |
| Delivery Time: | 15-20 days |
| Supply Ability: | 500units per month |
| Color: | White | Working Mode: | Radio Detection And Interference |
|---|---|---|---|
| Action Object: | UAV Map Transmission, Flight Control Link, Navigation Signal | Operating Frequency: | 100MHz~6GHz |
| Detection Distance: | ≥5km（Open And Accessible Areas） | Number Of Simultaneous Detections: | ≥10（5 Different Manufacturers） |
| Detection Refresh Time: | ≤2s | Power Consumption: | ≤50W |
| Operating Frequency Band: | (890~940)±10MH Z (43±2)dBm ，(1550~1625)±10 MHz (40±2)dBm ， (2400~2500)±10 MHz (40±2)dBm ， (5700~5850)±10 MHz (40±2)dBm | Counter Distance: | ≥2km |
| Countermeasure Frequency Band: | 4 | System Power Consumption: | ≤1000W |
| Size: | φ*H:850mm*485mm | Weight: | ≤50kg |
| Protection Level: | IP65 | Working Temperature: | -20℃~55℃ |
| Storage Temperature: | -60℃~125℃ | System Power Supply: | 220V AC |
| System Interface: | 100/1000M Ethernet | Full Working Time: | ≥1h |
| Highlight: | vehicle-mounted Directional Drone Jammer,mobile drone detection equipment,Integrated drone detection and countermeasure equipment |
||
Directional Drone Jammer Fixed Drone Defense Equipment Integrated drone detection and countermeasure equipment
1, Product Introduction

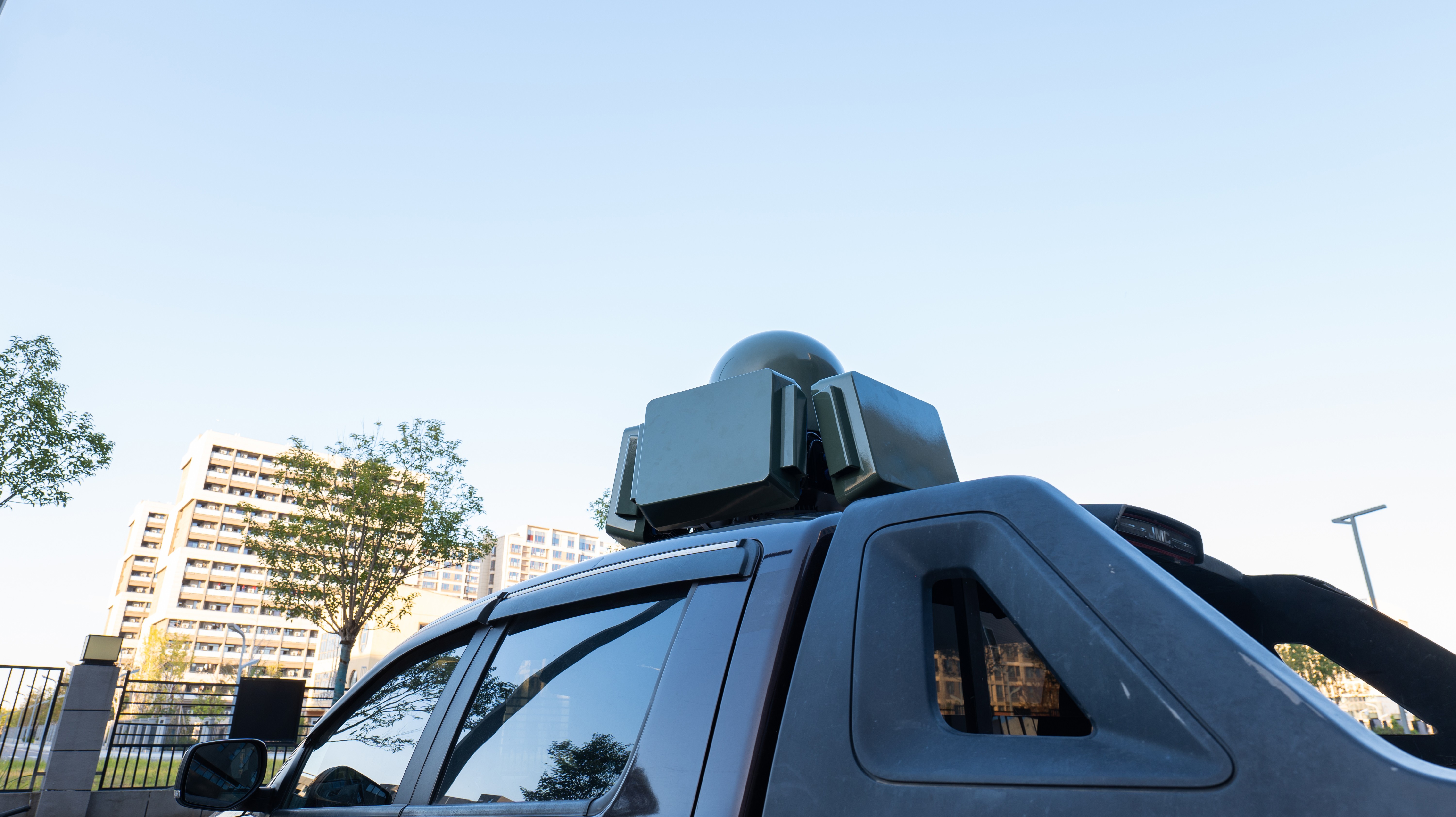

DR100 vehicle-mounted detection and countermeasures equipment for UAV detection, identification and countermeasures .The system incorporatesa variety of technologies such as spectrum sensing and machine learning to achieve detection and identification of drones using the received map signals between the drones and the remote control;It uses radio jamming and blocking technology for countermeasures, and can select directional or omnidirectional countermeasure modes as needed to achieve effective control of black-flying drones.The system can well meet the needs of sports events, major conferences and temporary events such as celebrations.
2, Functional highlight
4, Specification
| DR100 Specification (● yes, ○ no) | ||
| Color | White | ● |
| Working mode | Radio Detection and Interference | ● |
| Action object | UAV map transmission, flight control link, navigation signal | ● |
| Operating Frequency | 100MHz~6GHz | ● |
| Detection distance | ≥5km(Open and accessible areas) | ● |
| Number of simultaneous detections | ≥10(5 different manufacturers) | ● |
| Detection refresh time | ≤2s | ● |
| Power consumption | ≤50W | ● |
| Operating Frequency Band | (890~940)±10MH z (43±2)dBm ,(1550~1625)±10 MHz (40±2)dBm , (2400~2500)±10 MHz (40±2)dBm , (5700~5850)±10 MHz (40±2)dBm | ● |
| Counter distance | ≥2km | ● |
| Countermeasure Frequency band | 4 | ● |
| System power consumption | ≤1000W | ● |
| Size | φ*H:850mm*485mm | ● |
| Weight | ≤50kg | ● |
| Protection level | IP65 | ● |
| Working temperature | -20℃~55℃ | ● |
| Storage temperature | -60℃~125℃ | ● |
| System power supply | 220V AC | ● |
| System Interface | 100/1000M Ethernet | ● |
| Full working time | ≥1h | ● |
5, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
6, Company Profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our signal jammers are now widely used across various industries, particularly for countermeasures against drones. We are continuously evolving our products based on actual conditions, and our research and development of jamming modules for drone countermeasures has always been at the forefront of the industry.
7, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
8, Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.
9,Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
