MYT technology: Global Intelligent Security Expert
| Place of Origin: | China, Thailand |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR500-AB |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiate |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Detection Distance: | ≥2km (depends On Working Conditions And Drone Models) | Jamming Distance: | ≥2km (depends On Working Conditions And Drone Models) |
|---|---|---|---|
| Detection Frequency Bands: | 400MHz-1500MHz, 2200-2500MHz, 5150-5950MHz | Jamming Frequency Bands: | 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Highlight: | 2km perimeter defense system,perimeter defense system ip67,2km intrusion detection system |
||

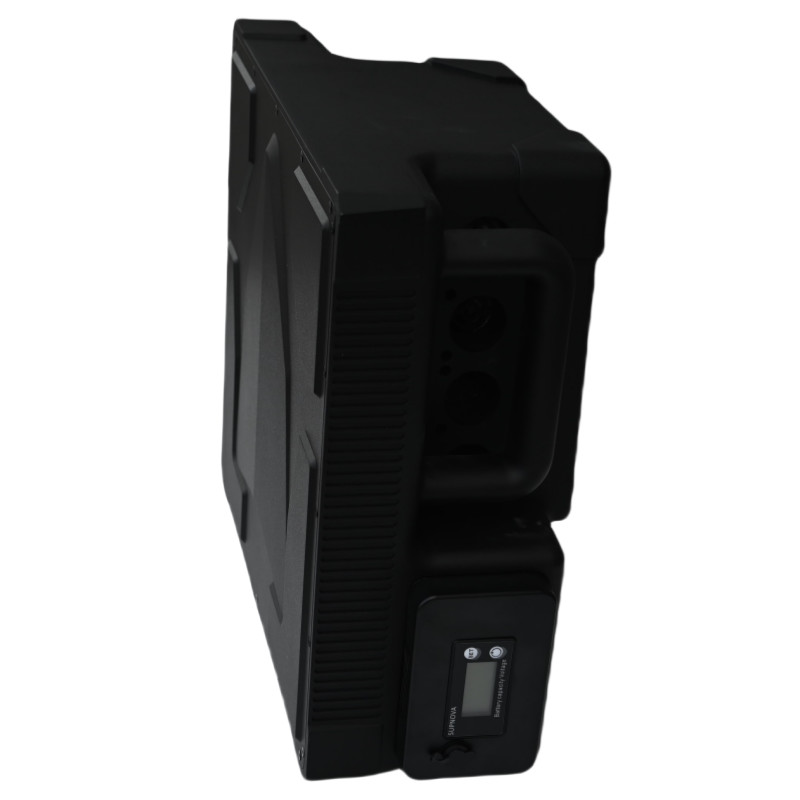

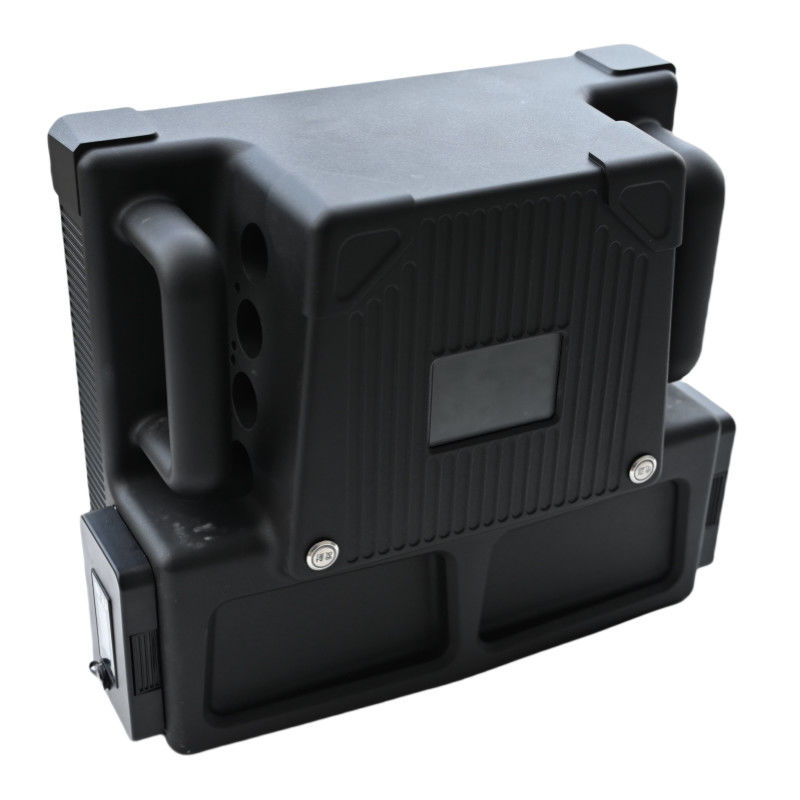

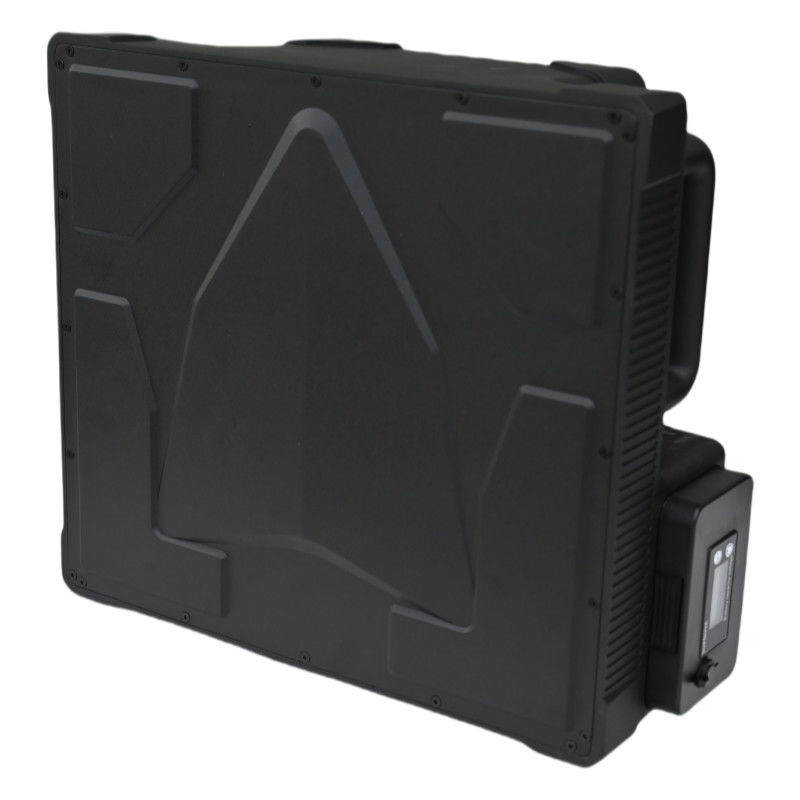

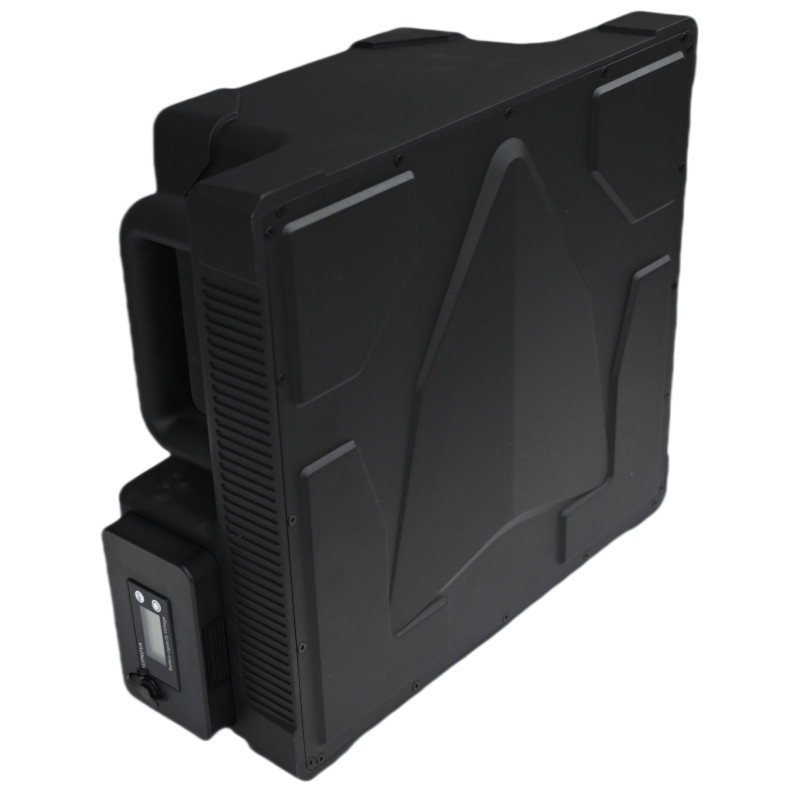

Anti Drone System Portable Drone Detection and Jamming Shield
1,Product Introduction
The equipment consists of a drone detection system and a radio jamming system. It has excellent detection and defense performance and long-distance working capabilities. By suppressing the signals of drone remote control data transmission, image transmission, and navigation, it forces the drone to hover, land or return, effectively protecting the safety of low-altitude airspace and preventing drones from entering the defense zone.
2, Functional highlight
1) 400MHz-6GHz Full-frequency-band Detection
2) 2km Precise and Efficient Jamming
3) Rapid and Mobile Deployment
4) Super Practical
5) Smart Touch Screen
3, Specification
| Feature | Details |
|---|---|
| Detection Frequency Bands | 400MHz-1500MHz, 2200-2500MHz, 5150-5950MHz |
| Detection Distance | ≥2km (depends on working conditions and drone models) |
| Direction Finding Accuracy | ≤10° |
| Detection Angle | Horizontal: 0°~360° |
| Jamming Distance | ≥2km (depends on working conditions and drone models) |
| Jamming Frequency Bands | 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Operation Screen | ≥3.5-inch touch screen to display drone frequency band, signal strength and other information |
| Jamming Coverage Angle | Horizontal ≥45°, Vertical ≥30° |
| Frequency Band Switching | Can select separate communication interference, separate navigation interference or full frequency interference |
| Network Control | Can be interconnected with mobile terminal (APP) and back-end command and management platform at multiple levels (optional) |
| Battery Life | ≥20h, equipped with detection and alarm function in standby mode |
| Working Temperature | -40°C~+60°C |
| Weight | ≤8kg (including the battery) |
| Size | 390mm160mm330mm (lengthwidthheight) |
5, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
6, Certification Certificate
7, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
8, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
