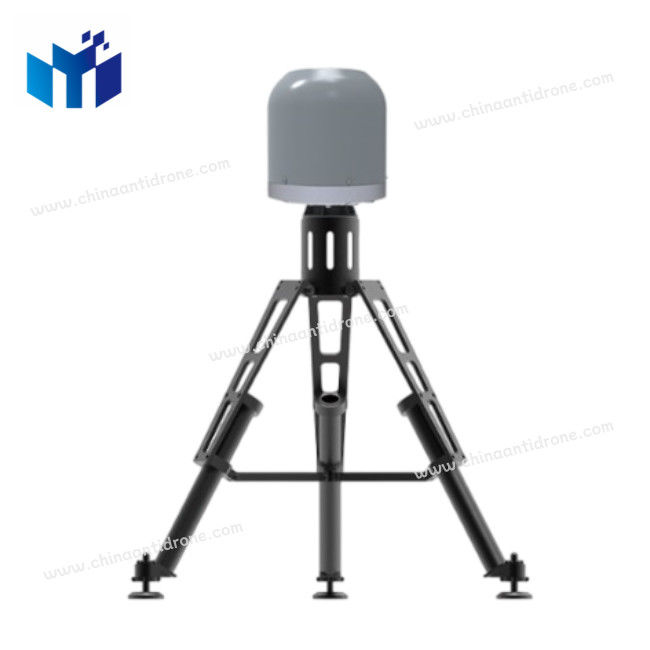

Navigation Deception Drone Defense System
1,Product Introduction
Low-altitude Unmanned Aerial Vehicle Active Defense System
This system was developed specifically to address the various security threats posed by "rogue" drones (unauthorized drones). It operates by radiating low-power regenerative navigation satellite signals (with power not exceeding 10 dBm) to interfere with the navigation systems of these "rogue" drones. This allows the system to take control of drones that rely on navigation systems for flight control, preventing them from entering the protected area and ensuring the low-altitude safety of that airspace. This method is currently the only defense measure that meets the technical requirement of a transmission power of ≤10 mW in counter-terrorism and prevention applications.
The system can be expanded to integrate wireless detection functions, achieving an integrated design of detection, luring, and deception. It supports both single-vehicle operation and networked operation, making it suitable for use in critical counter-terrorism and prevention applications such as power systems, oil and petrochemical, and energy sectors.
2, Functional highlight
① Precise electromagnetic jamming
≤10dBm (10mW), Meets the technical requirements of no more than 10mW for counter-terrorism and prevention applications.
② Applicable range
Each individual user can be pinpointed and jamming signals can be selectively transmitted.
③ Method effectiveness
Independent R&D, capable of autonomous operation, TDOA positioning, and remote real-time monitoring.
④ Unmanned intelligence
Applicable for automatic interference, negative air pressure environment, and 24-hour continuous operation.
3, Specification
| Operating Range | Not less than 500m (under unobstructed conditions) |
| Working Frequency Band | Frequency band for civil UAV navigation |
| Signal Transmission Power | ≤10dBm (mW) |
| Power Consumption | ≤30W |
| Power Supply | 220V AC or POE |
| Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 85°C |
| Protection Level | IP66 |
| Dimensions | 450450400mm |
4, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
