| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR200S |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 2 units |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units per month |
| Highlight: | integrated fixed drone jammer,integrated directional drone jammer,portable fixed drone jammer |
||
|---|---|---|---|

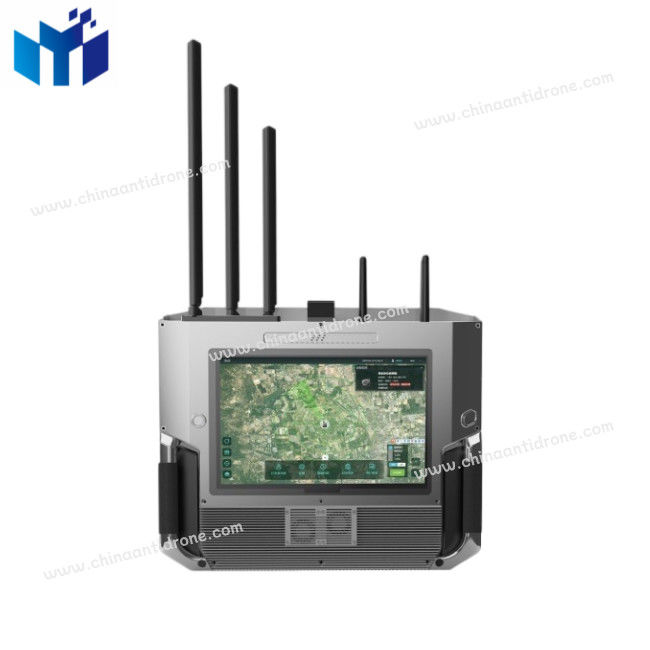

Integrated portable drone reconnaissance and strike equipment
1,Product Introduction
This integrated portable equipment combines six electronic reconnaissance algorithms, eight-band electromagnetic strike capabilities, and four-mode navigation deception technologies, with a highly integrated design to provide comprehensive control over the full process of drone detection, strike, and deception.
When the equipment is in operation, it can detect illegal drone intrusions through radio frequency scanning, feature recognition, and decoding. Various electronic reconnaissance algorithms enable drone presence/absence detection, direction finding, human-machine positioning, ID identification, and image analysis, while also supporting multi-unit networked TDOA positioning.
Through eight-band electromagnetic suppression technology, the equipment can interfere with and disrupt the drone's remote control link, data link, and navigation signals, forcing the drone to return or land. Using four-mode navigation deception technology, it can transmit false satellite navigation signals to infiltrate the drone's navigation system, achieving drone flight prohibition, rejection, or forced departure.
The equipment is a passive, non-emitting design with good concealment. Its appearance is desensitized to avoid public attention. The equipment can be hand-held, backpack-mounted, tripod-mounted, gimbal-mounted, or vehicle-top mounted, meeting the needs of various scenarios such as public security operations, anti-terrorism and anti-drug efforts, security patrols, border inspections, as well as individual soldier, squad, and convoy applications, temporary positions, and major events.
The 10.1-inch anti-glare touch screen provides a rich visualization interface with map, coordinate, whitelist/blacklist, and log functionality, making the operation simple and straightforward.
2, Specification
| Frequency Range | 20MHz - 6GHz |
| Detection Range | > 500m - 5km |
| Detection Angle | 360° |
| Positioning Accuracy | TDOA ≤ 20m, Analysis ≤ 5m |
| Identification Information | Detect aircraft type, SN code, speed, altitude, heading, and other key information |
| Interference Frequency Range | 800MHz - 6GHz, 8 bands |
| Interference Capability | Jamming, Disruption |
| Interference Distance | Up to 30dB, Ratio up to 1:1 |
| Interference Angle | ≥ 30° |
| Navigation System | GPS, GALILEO, GLONASS, BDS |
| Power Supply | AC 220V |
| Standby Time | 4 hours |
| Size | 363.2 x 325.95 x 95.59 mm (L x W x H) |
| Weight | ≤ 8kg |
| Protection Level | IP65 |
| Operating Temperature | -25°C - 55°C |
| Control Mode | Wired, Wireless, External Control (Adjustable) |
| Headphone Jack | 3.5mm |
| Network Interface | 4G/5G/LAN |
3, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
