MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | MP6-D |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Packaging Details: | Safety box packaging: 680*460*440mm N.W: 13.2kg |
| Delivery Time: | 5 work days |
| Payment Terms: | TT, LC |
| Supply Ability: | 500units per month |
| Dimensions: | 510x370x240mm | Weight: | 17kg |
|---|---|---|---|
| Power: | 400W | Anti Rrange: | 2000m |
| Highlight: | Manpack Drone Signal Jammer,Backpack Drone Signal Jammer,8 Bands Drone Signal Jammer |
||

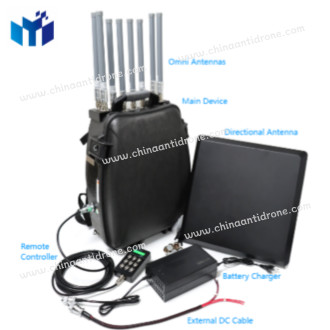

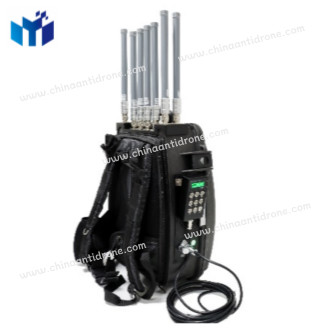

400W powerful backpack manpackdrone signal jammer 8 bands 2.4G 5.2G 5.8GHz GPS L1L2L3L4L5 FPV 400-1100MHz MP6-D
1, Product Introduction
This 400-watt high-power manual drone jammer, equipped with 8 high-gain omnidirectional or directional antennas, provides us with strong jamming capabilities. The built-in battery allows for 50-60 minutes of operation, and it can counter almost all drones: such as the Phantom 4, the Phantom 3 Professional, Advanced, Standard, Inspire series, and most FPVs, with an effective jamming range up to 2000 meters.
2, Functional highlight
1) High-power backpack style for army use to jam drone and FPV signals.
2) Total output power of 400w, you can choose between high-gain 2-8 dbi OMNI or panel directional antennas, blocking signals from 200-2000 meter
3) Each unit can block up to 8 bands, with a modular design for easy maintenance, repair, and upgrade.
4) Protection against VSWR using an I solver.
5) Large aluminum alloy casing and 4 cooling fans.
6) Built-in battery 24 V30Ah for continuous operation of 50-60 minutes
7) 1-5 meter power cord, battery power and charger displayed through an LCD screen.
3, Specification
| Channel | Output Port | Frequency Range | Average Output Power (±1dBm) |
|---|---|---|---|
| 1 | RC2.4G | 2400-2500MHz | 50W |
| 2 | RC5.8G | 5725-5850MHz | 50W |
| 3 | GPSL1 | 1560-1610MHz | 50W |
| 4 | GPSL2L5 | 1170-1280MHz | 50W |
| 5 | RC1.0G | 960-1100MHz | 50W |
| 6 | 868/915 | 850-960MHz | 50W |
| 7 | RC750 | 700-850MHz | 50W |
| 8 | RC433 | 400-470MHz | 50W |
| Select | RC6.0G | 5900-6150MHz | 50W |
| Select | RC5.2G | 5125-5350MHz | 50W |
| Select | RC4.9G | 4800-4960MHz | 50W |
| Select | RC 3.5G/3.7G | 3400-3800MHz | 50W |
| Select | RC1400 | 1370-1450MHz | 50W |
| Select | RC650 | 600-700MHz | 50W |
| Select | RC550 | 500-600MHz | 50W |
| Select | RC450 | 400-500MHz | 50W |
| Select | RC350 | 300-400MHz | 50W |
| Select | RC250 | 250-300MHz | 50W |
| Select | RC200 | 200-250MHz | 50W |
| Power | Built-in battery 27V25Ah, operates for 50-60 minutes with external port of DC24-28V | ||
| Main Equipment Dimensions (L x W x H)510x370x240mm (excluding antenna) N.W: 17kg | |||
| Safety Box Packaging Dimensions: 680x460x440mm, N.W: 13.2kg Total Weight: 17kg main equipment + 1.15kg omni antenna + 4kg directional antenna + 0.7kg wired controller + 0.8kg charger + 0.15kg external DC cable + 13.2kg safety box = 37.1kg | |||
| Output power total power 400w, with omnidirectional antenna anti-drone 100-800 meters, and directional antenna anti-drone up to 2000 meters | |||
| Warranty Period: One year from the date of delivery | |||
4, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
5, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
6, Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.
7,Paking and Delivery
