MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DD-R33 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| TAS Tracking Target Count: | ≥6 | Minimum Detection Altitude: | ≤10m |
|---|---|---|---|
| Velocity Range: | 1m/s~100m/s | Resolution Ratio: | Distance: ≤15m, Azimuth: ≤6°, Elevation: ≤12° |
| Operating Temperature Range: | -40℃～+60℃ | Size: | ≤405mm*316mm*160mm |
| Power Dissipation: | ≤200W | Supply Electricity: | AC220V/DC24V |
| Levels Of Protection: | IP66 | Joggle: | RJ45 Network Port |
| Highlight: | X-band phased array radar system,Anti UAV radar with AI detection,Solid-state coherent pulse Doppler radar |
||

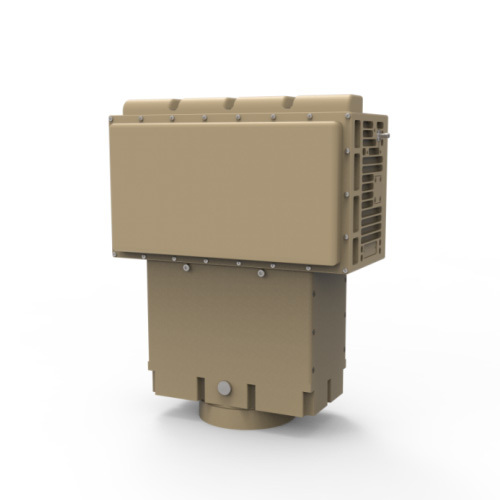

The DD-R33 medium-range X-band phased array radar
The DD-R33 medium-range X-band phased array radar employs a fully solid-state, fully coherent, and pulse Doppler system, enabling all-weather detection and early warning of "low, small, slow" targets. Utilizing machine learning and AI-based trajectory feature recognition, the system achieves highly accurate detection and classification of targets including drones, light aircraft, helicopters, powered triplanes, airships, and airborne balloons with minimal false alarm rates.
2) Strong detection ability, low false alarm, can detect the maneuvering flight of drones;
3) It has cloud and rain noise suppression function, which can work all day long;
4) It has the directional scanning mode of "one-dimensional machine scanning + one-dimensional phase scanning" and "two-dimensional phase scanning" to realize 360° airspace and key area detection. The two modes can be flexibly switched without changing the software.
5) Equipped with machine scanning tracking and phase scanning TAS tracking functions.
6) The AI recognition technology based on "track features" can classify and identify drones, birds, people and cars;
7) Built-in auto-position calibration module, automatically realize auto leveling and north calibration function;
8) It has a range and pitch scan range setting function.
3, qualification
|
order number |
parameter |
metric |
|
1 |
frequency range |
X frequency range |
|
2 |
detection range |
≥ 3Km(RCS:0.01m2, unmanned aerial vehicle ) ≥ 6Km(RCS:0.3 m2, unmanned aerial vehicle ) |
|
3 |
fade zone |
≤100m |
|
4 |
work pattern |
Supports machine scanning and 2D phase scanning |
|
5 |
hunting zone |
Scan: Angle: 0°~360°, Pitch: 0°~80° (configure according to task requirements) |
|
|
|
Sweep: Azimuth: -45° to 45°, elevation: 0° to 80° (configure according to mission requirements) |
|
6 |
trace function |
Machine scanning tracking function / phase scanning TAS function |
|
7 |
TAS tracking target count |
≥6 |
|
8 |
Minimum detection altitude |
≤10m |
|
9 |
velocity range |
1m/s~100m/s |
|
10 |
Target update rate |
Scan duration ≤3.5 seconds per phase, with a pitch coverage of 30° and a range of 5 km. |
|
11 |
resolution ratio |
Distance: ≤15m, azimuth: ≤6°, elevation: ≤12° |
|
12 |
Search precision (RMS) |
Distance: ≤10m, azimuth: ≤0.4°, elevation: ≤1° |
|
13 |
Tracking accuracy (RMS) |
Distance: ≤10m, azimuth: ≤0.4°, elevation: ≤0.6° |
|
14 |
joggle |
RJ45 network port |
|
15 |
target capacity |
≥500 batches |
|
16 |
weight |
≤16kg (front panel: ≤9kg, turntable: ≤12kg) |
|
17 |
supply electricity |
AC220V/DC24V |
|
18 |
power dissipation |
≤200W |
|
19 |
size |
≤405mm*316mm*160mm |
|
20 |
operating temperature range |
-40℃～+60℃ |
|
21 |
levels of protection |
IP66 |
4, Application Scenarios
5, Certification Certificate
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Customer Service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3). Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
