| Detection Range: | ≥ 5Km（RCS:0.01m2，unmanned Aerial Vehicle）≥ 10Km（RCS:0.3 M2，unmanned Aerial Vehicle ） | Fade Zone: | ≤ 150m |
|---|---|---|---|
| Work Pattern: | 2D Phased Array | Supply Electricity: | AC220V/DC24V |
| Trace Function: | TAS Feature Available | TAS Tracking Target Count: | ≥ 6 |
| Resolution Ratio: | Distance: ≤15m, Azimuth: ≤6°, Elevation: ≤4° | Minimum Detection Altitude: | ≤ 10m |
| Velocity Range: | 1m/s~100m/s | Target Update Rate: | TWS: ≤ 3.5 Seconds (30° Pitch Coverage, 7.5km Range) TAS: ≤ 0.5s (default) |
| Joggle: | RJ45 Network Port | Power Dissipation: | ≤350W |
| Highlight: | Ku-band anti UAV radar,monopolar array radar system,medium-range drone detection radar |
||

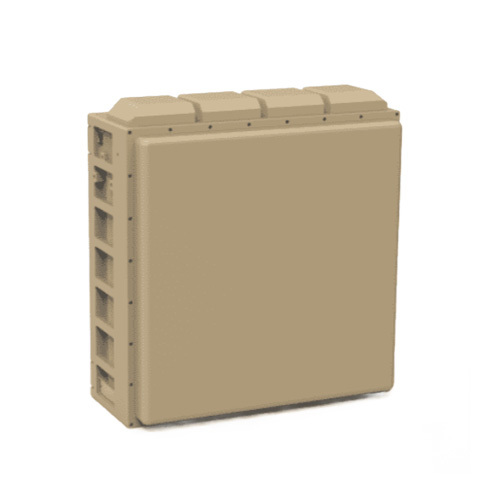

Ku-band medium-range single-faced array radar
The DD - R21 Ku - band medium - range monopolar array radar is a highly sophisticated piece of equipment. It integrates a fully solid - state, fully coherent, and pulse Doppler system. This system serves as a crucial enabling factor, endowing the radar with all - weather detection capabilities. Specifically, it is engineered to execute early warning functions for "low, small, slow" targets. Detecting such targets can be rather challenging due to their inherent characteristics.
To augment its detection and classification capabilities, the radar utilizes machine learning and AI recognition technologies. These technologies are grounded in two essential aspects: "micro - Doppler signatures" and "flight path features". By leveraging these, the radar can effectively detect and classify a diverse range of targets. This encompasses drones, which have become increasingly prevalent in various airspace scenarios. Light aircraft, helicopters, powered triplanes, airships, and airborne balloons are also among the targets that can be accurately identified. One of the most notable features is that it accomplishes this with extremely low false alarm rates, ensuring reliable performance.
The radar is also equipped with a unique two - dimensional phase scanning system. This system offers significant flexibility as it can be expanded into different configurations. For example, it can be configured as "azimuth mechanical scanning + elevation phase scanning". This specific configuration may prove advantageous in certain applications where a more detailed and targeted scanning approach is necessary. Additionally, it can be transformed into multi - polar arrays. These different configurations are of great significance as they can meet the diverse application requirements across various fields, whether for security monitoring, air traffic management in specific areas, or other related tasks.
The product possesses comprehensive target monitoring and analysis capabilities, enabling target positioning, trajectory display, and playback functions on the map while real-time presenting key parameters such as target distance, azimuth, elevation, and speed. The system features built-in data recording and storage functionality, which can completely save target trajectory data and equipment status information, supporting subsequent data playback and query operations.
Equipped with advanced AI recognition technology, the system employs "micro-Doppler signature" and "trajectory feature" analysis methods, enabling accurate classification and identification of various target types including drones, birds, humans, and vehicles. It integrates adaptive machine learning technology, allowing it to autonomously adapt to the current environment and start operation directly without manual parameter adjustment.
To ensure reliable all-weather operation, the system is equipped with cloud and rain noise suppression capabilities, effectively eliminating interference under adverse weather conditions. The software interface provides flexible parameter configuration options, allowing users to adjust settings such as elevation coverage, target update rate, and monitoring range according to their needs.
Additionally, the product features automatic compensation functions for independent positioning, orientation, elevation, and roll angles, ensuring measurement accuracy. During system operation, users can fully monitor equipment working conditions through real-time status monitoring functionality, ensuring stable and efficient system operation.
