| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DD-R22 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000units per month |
| Detection Range: | ≥5Km（RCS:0.01m2， Unmanned Aerial Vehicle ）3 Fade Zone | Fade Zone: | ≤150m |
|---|---|---|---|
| TAS Tracking Target Count: | ≥6 | Size: | ≤575mm*317mm*220mm |
| Minimum Detection Altitude: | ≤10m | Velocity Range: | 1m/s~100m/s |
| Resolution Ratio: | Distance: ≤15m, Azimuth: ≤6°, Elevation: ≤4° | Operating Temperature Range: | -40℃～+70℃ |
| Power Dissipation: | ≤350W | Supply Electricity: | AC220V/DC24V |
| Highlight: | Anti UAV radar with AI recognition,Machine learning drone detection radar,Precision target tracking UAV radar |
||

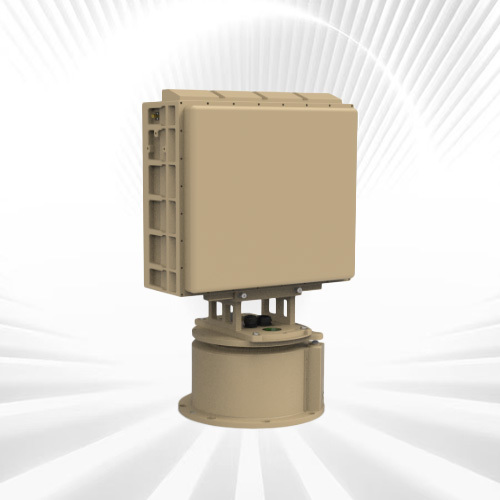

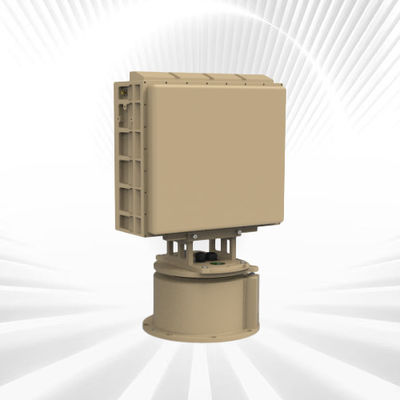

DD-R22 Ku-band medium-range phased array radar
The DD - R22 Ku - band medium - range phased array radar is a highly sophisticated system. It employs a fully solid - state, fully coherent, and pulse Doppler configuration. This configuration enables it to perform all - weather detection and early warning operations, with a particular emphasis on detecting "low, small, slow" targets.
By harnessing machine learning and artificial intelligence recognition techniques that are founded on two key elements - "track characteristics" and "micro - Doppler signatures", the system achieves an extremely low false alarm rate. This accomplishment is of great significance as it ensures a more reliable and accurate operational performance.
Moreover, this radar system is highly proficient in detecting and classifying a wide array of targets. These targets include drones, which have become increasingly common in numerous applications. Given their small size and frequently low - altitude flight, drones present unique detection challenges. Light aircraft, with dimensions relatively smaller than those of larger commercial aircraft, are also within the detection range of the radar. Helicopters, recognized for their vertical take - off and landing capabilities and distinctive flight patterns, can be precisely detected and classified. Powered triplanes, airships, and airborne balloons, each possessing their own distinct flight characteristics, are also successfully identified by the DD - R22 Ku - band medium - range phased array radar. This comprehensive target detection and classification capability renders the radar an invaluable asset in various scenarios, be it for military surveillance, border control, or civilian airspace monitoring.
The product utilizes advanced machine learning technology. This enables it to adapt to battlefield environments and be directly deployed upon installation, eliminating the need for parameter adjustment. The system features robust detection capabilities and an extremely low false alarm rate, effectively detecting the maneuvering flights of unmanned aerial vehicles. To guarantee reliable all - weather operation, the product is equipped with cloud and rain noise suppression functionality, enabling continuous operation under diverse weather conditions.
Regarding scanning modes, the system provides two directional scanning methods: "one - dimensional mechanical scanning + one - dimensional phase scanning" and "two - dimensional phase scanning". It can achieve both 360° all - round spatial detection and precise monitoring of key areas. The two modes can be flexibly switched without the necessity of software modifications. The product concurrently integrates mechanical scanning tracking and phase scanning TAS tracking functions to ensure continuous and stable target tracking.
AI recognition technology based on "track features" empowers the system to accurately classify and identify multiple target types, including drones, birds, personnel, and vehicles. The built - in automatic positioning and calibration module can automatically perform equipment leveling and calibration functions, streamlining the operation process. Moreover, the system offers flexible setting functions for distance and elevation scanning ranges, enabling users to make personalized configurations according to actual requirements.
3, qualification
|
order number |
parameter |
metric |
|
1 |
frequency range |
Ku frequency range |
|
2 |
detection range |
≥5Km(RCS:0.01m2, unmanned aerial vehicle ) |
|
3 |
fade zone |
≤150m |
|
4 |
work pattern |
Machine scan and 2D phase scan |
|
5 |
hunting zone |
Scan: Angle: 0°~360°, Pitch: 0°~80° (configure according to task requirements) |
|
|
|
Sweep: Azimuth: -45° to 45°, elevation: 0° to 80° (configure according to mission requirements) |
|
6 |
trace function |
Machine scanning tracking function / phase scanning TAS function |
|
7 |
TAS tracking target count |
≥6 |
|
8 |
Minimum detection altitude |
≤10m |
|
9 |
velocity range |
1m/s~100m/s |
|
10 |
Target update rate |
Scan time ≤3.5 seconds per phase (30° pitch coverage, 7.5km range) |
|
11 |
resolution ratio |
Distance: ≤15m, azimuth: ≤6°, elevation: ≤4° |
|
12 |
Search precision (RMS) |
Distance: ≤10m, azimuth: ≤0.4°, elevation: ≤0.4° |
|
13 |
Tracking accuracy (RMS) |
Distance: ≤10m, azimuth: ≤0.3°, elevation: ≤0.3° |
|
14 |
joggle |
RJ45 network port |
|
15 |
target capacity |
≥500 batches |
|
16 |
weight |
≤26kg (front panel: ≤13kg; turntable: ≤12kg) |
|
17 |
supply electricity |
AC220V/DC24V |
|
18 |
power dissipation |
≤350W |
|
19 |
size |
≤575mm*317mm*220mm |
|
20 |
operating temperature range |
-40℃～+70℃ |
|
21 |
levels of protection |
IP66 |
4, Application Scenarios
5, Certification Certificate
