| Detection Range: | ≥5Km（RCS:0.01m2， Unmanned Aerial Vehicle ）3 Fade Zone | Fade Zone: | ≤150m |
|---|---|---|---|
| TAS Tracking Target Count: | ≥6 | Size: | ≤575mm*317mm*220mm |
| Minimum Detection Altitude: | ≤10m | Velocity Range: | 1m/s~100m/s |
| Resolution Ratio: | Distance: ≤15m, Azimuth: ≤6°, Elevation: ≤4° | Operating Temperature Range: | -40℃～+70℃ |
| Power Dissipation: | ≤350W | Supply Electricity: | AC220V/DC24V |
| Highlight: | Ku-band anti UAV radar,drone detection radar system,cruise missile detection radar |
||

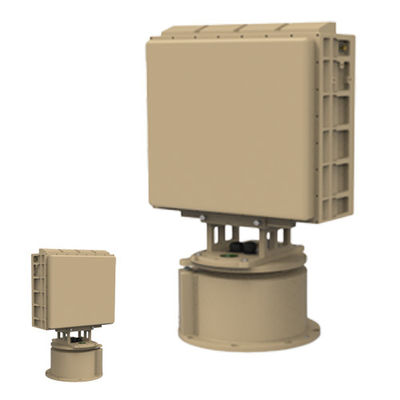

DD-R22 Ku-band medium-range phased array radar
The DD - R22 Ku - band medium - range phased array radar represents a highly advanced system. It employs a fully solid - state, fully coherent, and pulse Doppler configuration. This configuration enables it to possess the remarkable capacity for conducting all - weather detection and early warning operations, with a particular focus on "low, small, slow" targets.
By harnessing the capabilities of machine learning and artificial intelligence recognition techniques, which are founded on two critical elements - "track characteristics" and "micro - Doppler signatures", the system achieves an ultra - low false alarm rate. This accomplishment is of great significance as it ensures a more reliable and accurate performance.
Moreover, this radar system is highly efficient in detecting and classifying a wide array of targets. These targets include drones, which have become increasingly common in various applications and present unique detection challenges due to their small size and frequently low - altitude flight. Light aircraft, characterized by their relatively smaller dimensions compared to larger commercial aircraft, also lie within the radar's detection range. Helicopters, renowned for their vertical take - off and landing capabilities and distinct flight patterns, can be accurately detected and classified. Powered triplanes, airships, and airborne balloons, each with their own specific flight characteristics, are also successfully identified by the DD - R22 Ku - band medium - range phased array radar. This comprehensive target detection and classification ability renders the radar an invaluable asset in numerous scenarios, whether for military surveillance, border control, or civilian airspace monitoring.
The product utilizes advanced machine learning technology. This enables it to adapt to battlefield environments and be directly operational upon installation, without the requirement for parameter adjustment. The system features robust detection capabilities and an extremely low false alarm rate, effectively detecting the maneuvering flight of unmanned aerial vehicles. To guarantee reliable all-weather operation, the product is equipped with cloud and rain noise suppression functionality, enabling continuous operation under diverse weather conditions.
Regarding scanning modes, the system provides two directional scanning methods: "one-dimensional mechanical scanning + one-dimensional phase scanning" and "two-dimensional phase scanning." It can achieve both 360° all-round spatial detection and precise monitoring of key areas. The two modes can be flexibly switched without the necessity of software modifications. The product concurrently integrates mechanical scanning tracking and phase scanning TAS tracking functions to ensure continuous and stable target tracking.
AI recognition technology based on "track features" empowers the system to accurately classify and identify multiple target types, including drones, birds, personnel, and vehicles. The built-in automatic positioning and calibration module can automatically perform equipment leveling and calibration functions, streamlining the operation process. Moreover, the system offers flexible setting functions for distance and elevation scanning ranges, enabling users to make personalized configurations according to actual requirements.
